Colour Light grey
Model Integrated connector
Surface protection Other
Material thickness, mm 3
Deflection (angle) 45°
Side wall perforation No
Material quality GRP
Material Other
Mounting perforation in bottom No
Inner radius, mm 300
Cable tray width, mm 200
Cable tray height, mm 50
Change of direction Vertically declining
NATO-mounting holes No
Stainless steel, pickled No
Wide span model No
Suitable for circuit integrity No

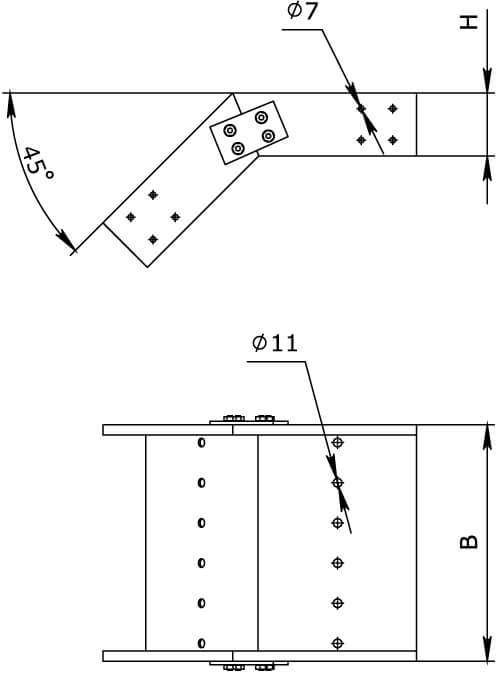

Drawings
Seria Name Autodesk Revit DWG (dynamic blocks)
G5 Combitech - fiberglass trays
G5 Combitech - fiberglass trays
