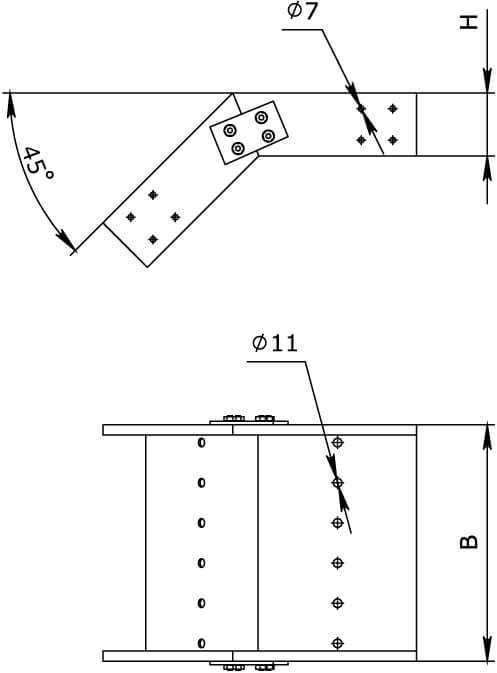

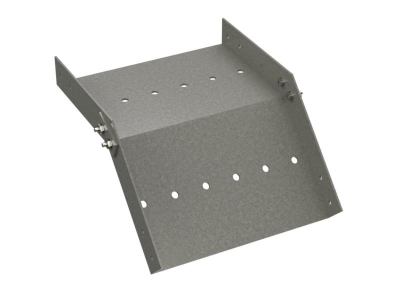

45° Vertical outside 150x50,GRP

Colour	Light grey
Model	Integrated connector
Surface protection	Other
Material thickness, mm	3
Deflection (angle)	45°
Side wall perforation	No
Material quality	GRP
Material	Other
Mounting perforation in bottom	No

Inner radius, mm	300
Cable tray width, mm	150
Cable tray height, mm	50
Change of direction	Vertically declining
NATO-mounting holes	No
Stainless steel, pickled	No
Wide span model	No
Suitable for circuit integrity	No

Seria	Name	Autodesk Revit	DWG (dynamic blocks)
G5 Combitech - fiberglass trays	The system of GRP cable trays "G5 Combitech"	ZIP 11.67 MB
G5 Combitech - fiberglass trays	The system of GRP cable trays "G5 Combitech"		ZIP 19.21 MB

Name	Document
Certificate of conformity to seismic impact resistance for system of cable trays "G5 Combitech" and fastening system "M5 Combitech"	PDF 907.21 kB
Certificate of conformity for fiberglass tray system "G5 Combitech" (TU 049)	PDF 730.70 kB
Certificate of conformity to seismic resistance for fiberglass tray system "G5 Combitech"	PDF 506.02 kB
Certificate of conformity to fire safety to GOST R 53313-2009 for the Fiberglass tray system	PDF 331.97 kB
