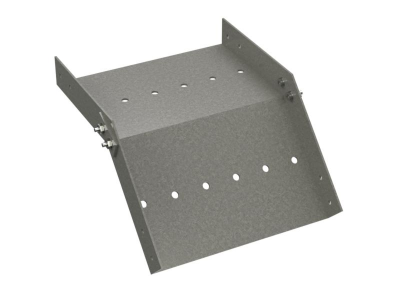

45° Vertical outside 100x50,GRP

Code: GCD40510
45° Vertical outside 100x50,GRP
45° Vertical outside 100x50,GRP
Colour Light grey
Model Integrated connector
Surface protection Other
Material thickness, mm 3
Deflection (angle) 45°
Side wall perforation No
Material quality GRP
Material Other
Mounting perforation in bottom No
Inner radius, mm 300
Cable tray width, mm 100
Cable tray height, mm 50
Change of direction Vertically declining
NATO-mounting holes No
Stainless steel, pickled No
Wide span model No
Suitable for circuit integrity No

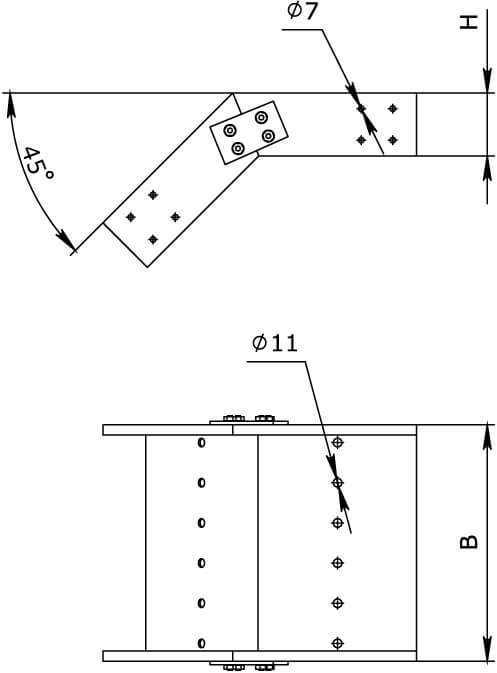

Drawings
Seria Name Autodesk Revit DWG (dynamic blocks)
G5 Combitech - fiberglass trays
The system of GRP cable trays "G5 Combitech"
ZIP
11.67 MB
G5 Combitech - fiberglass trays
The system of GRP cable trays "G5 Combitech"
ZIP
19.21 MB
Certificates
Name Document
Certificate of conformity to seismic impact resistance for system of cable trays "G5 Combitech" and fastening system "M5 Combitech"
PDF
907.21 kB
Certificate of conformity for fiberglass tray system "G5 Combitech" (TU 049)
PDF
730.70 kB
Certificate of conformity to seismic resistance for fiberglass tray system "G5 Combitech"
PDF
506.02 kB
Certificate of conformity to fire safety to GOST R 53313-2009 for the Fiberglass tray system
PDF
331.97 kB
