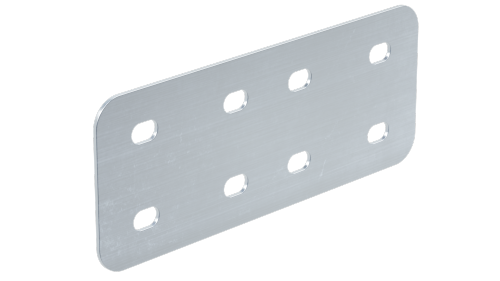

Splice connectors H=150, INOX316L

Code: GPG01500I
Splice connectors H=150, INOX316L
Splice connectors H=150, INOX316L
Surface protection Other
Material quality Stainless steel 316 (V4A)
Material Stainless steel V4A
Suitable for wire mesh tray No
Fitting for mesh cable tray filament, mm No
Suitable for cable ladder Yes
Suitable for cable duct No
Suitable for cable management system height, mm 150
Hinged joint horizontal No
Hinged joint vertical No
Suitable for circuit integrity No
Suitable for cable management system width, mm 50…600
Model Longitudinal joint
Type of connection Screw connector
Drawings
Seria Name Autodesk Revit DWG (dynamic blocks)
G5 Combitech - fiberglass trays
The system of GRP cable trays "G5 Combitech"
ZIP
11.67 MB
G5 Combitech - fiberglass trays
The system of GRP cable trays "G5 Combitech"
ZIP
19.21 MB
Certificates
Name Document
Certificate of conformity to seismic impact resistance for system of cable trays "G5 Combitech" and fastening system "M5 Combitech"
PDF
907.21 kB
Certificate of conformity for fiberglass tray system "G5 Combitech" (TU 049)
PDF
730.70 kB
Certificate of conformity to seismic resistance for fiberglass tray system "G5 Combitech"
PDF
506.02 kB
Certificate of conformity to fire safety to GOST R 53313-2009 for the Fiberglass tray system
PDF
331.97 kB
