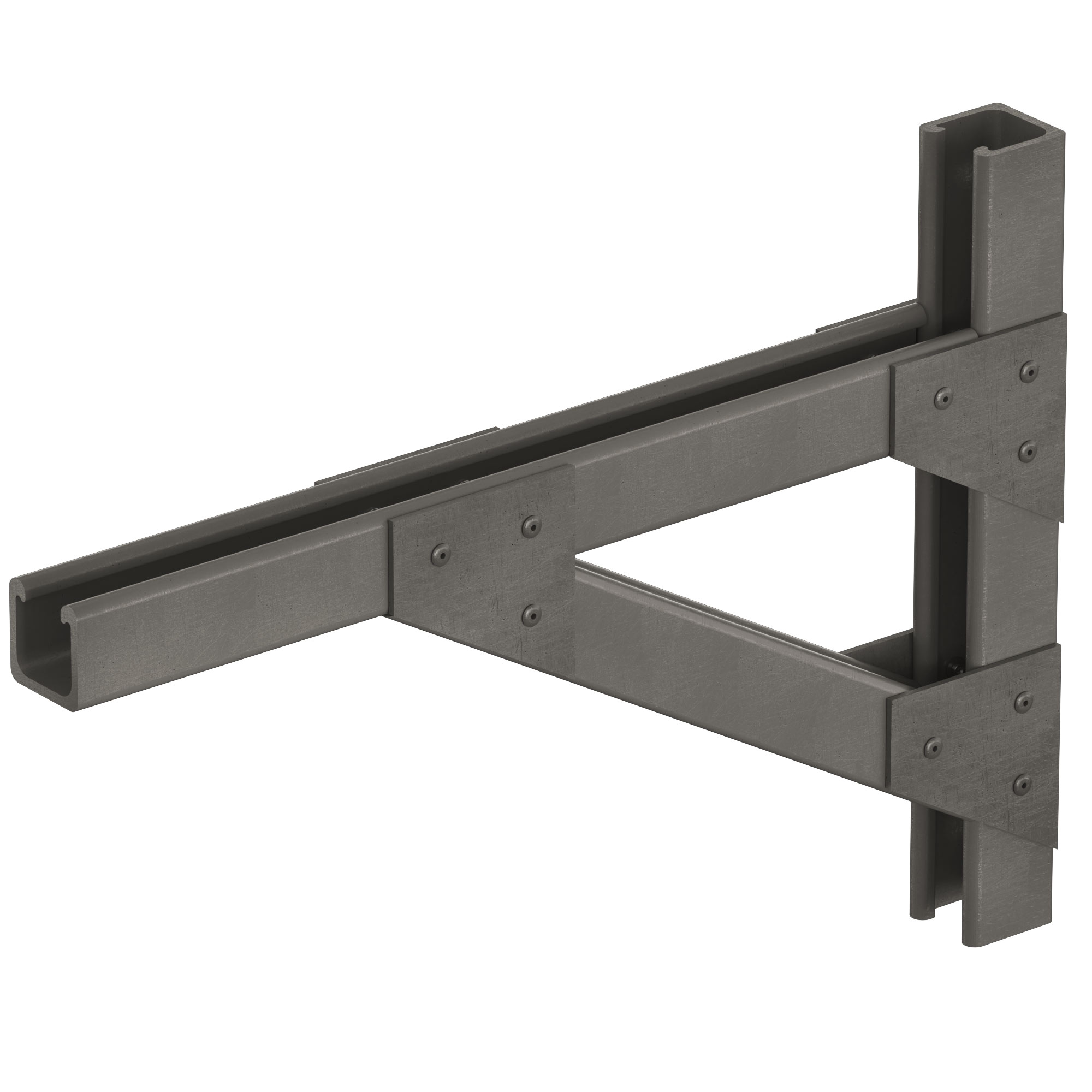

Bracket with a support for high loads b.700, GRP

Code: GBH04170R
Bracket with a support for high loads b.700, GRP
Bracket with a support for high loads b.700, GRP
Colour Light grey
Width, mm 700
Model Wall- and profile console
Height, mm 115
Surface protection Other
Material quality GRP
Material Other
Angle, ° 90
Stainless steel, pickled No
Suitable for circuit integrity No

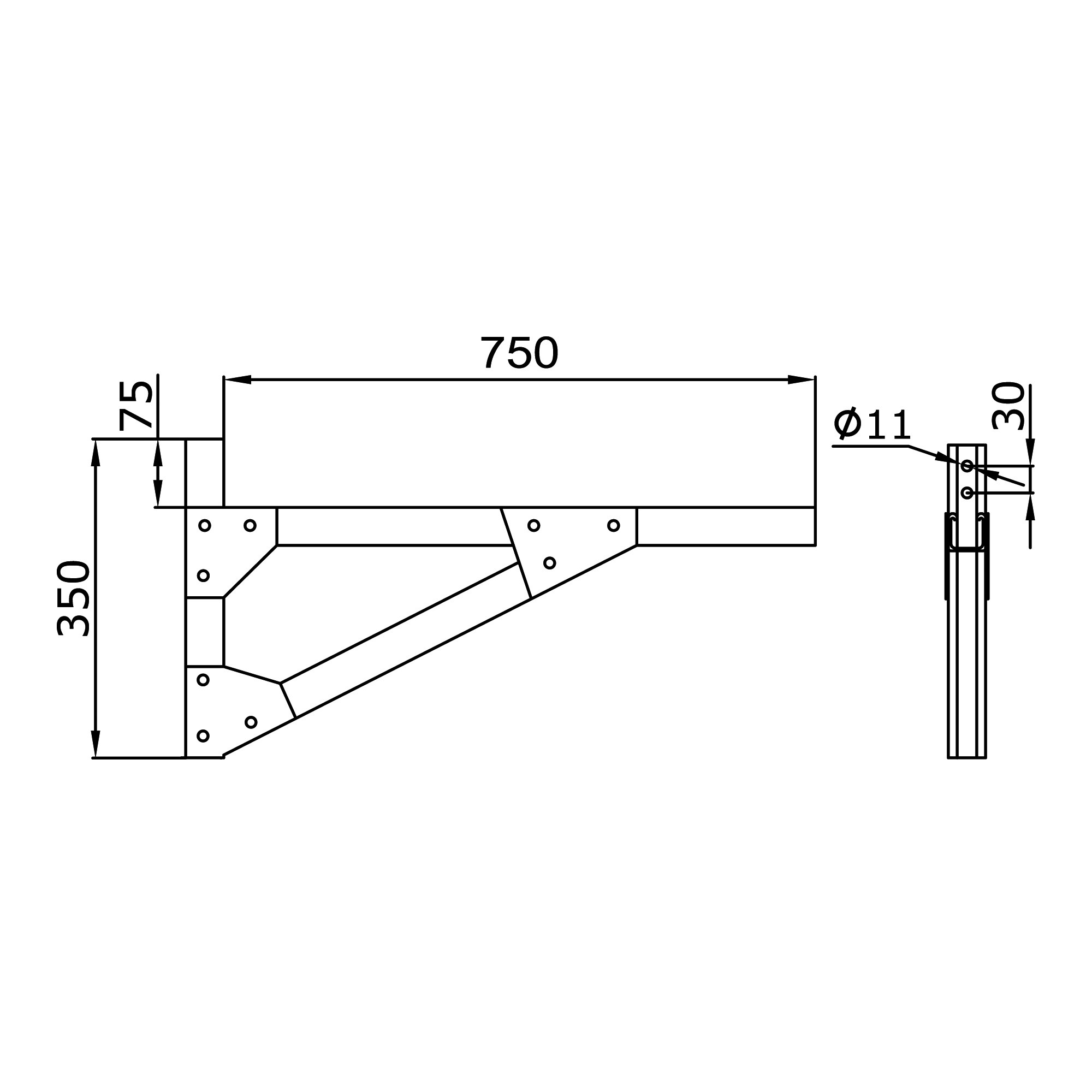

Drawings
Seria Name Autodesk Revit DWG (dynamic blocks)
G5 Combitech - fiberglass trays
The system of GRP cable trays "G5 Combitech"
ZIP
11.67 MB
G5 Combitech - fiberglass trays
The system of GRP cable trays "G5 Combitech"
ZIP
19.21 MB
Certificates
Name Document
Certificate of conformity to seismic impact resistance for system of cable trays "G5 Combitech" and fastening system "M5 Combitech"
PDF
907.21 kB
Certificate of conformity for fiberglass tray system "G5 Combitech" (TU 049)
PDF
730.70 kB
Certificate of conformity to seismic resistance for fiberglass tray system "G5 Combitech"
PDF
506.02 kB
Certificate of conformity to fire safety to GOST R 53313-2009 for the Fiberglass tray system
PDF
331.97 kB
