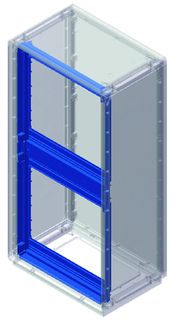

Frame for wall plate for Conchiglia cabinets 715 x 685 мм

Code: 095777710
Frame for wall plate for Conchiglia cabinets 715 x 685 мм
Frame for wall plate for Conchiglia cabinets 715 x 685 мм
Width, mm 685
Height, mm 715
With cover No
Number of modular spacings per DIN-rail 87
Mounting plate No
Type of cover With notch
With N-PE clamp No
Color gray
Material PVC
Height, mm 715
Width, mm 685
