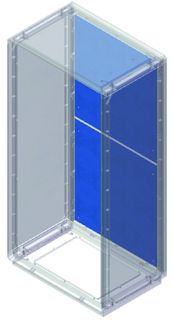

Mounting plate for cabinet Conchiglia 1390 x 685 мм

Code: 095777058
Mounting plate for cabinet Conchiglia 1390 x 685 мм
Mounting plate for cabinet Conchiglia 1390 x 685 мм
Width, mm 529
Height, mm 560
Perforated No
Surface protection Zinc coated
Material Steel
Material Galvanized steel
Height, mm 1390
Width, mm 685
Thickness, mm 2
Drawings
Seria Name DWG (dynamic blocks) DWG STEP
