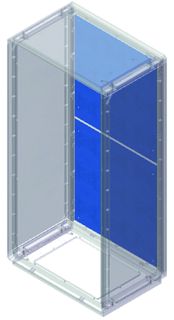

Mounting plate for cabinet Conchiglia 1390 x 580 мм

Code: 095775078
Mounting plate for cabinet Conchiglia 1390 x 580 мм
Mounting plate for cabinet Conchiglia 1390 x 580 мм

Mounting plate for cabinet Conchiglia 1390 x 580 мм

Code: 095775078
Removed from the product range . Proposed replacement: CN5PCE135
Width, mm 529
Height, mm 455
Perforated No
Surface protection Galvanized
Material Steel
Product type Accessories for Conchiglia Assembled Enclosures
Suitable for enclosure height 1390
Suitable for enclosure widht 580
Suitable for enclosure depth Any
Accessory type for Conchiglia Assembled Enclosures Mounting panel and components
Drawings
Seria Name DWG STEP DWG (dynamic.)
Fibreglass Enclosures - "Conchiglia"
Vertical rack for cabinets Conchiglia=940mm, + Rails, uprights Conchiglia, D=330mm
RAR
40.48 Kb
RAR
31.9 Kb
Fibreglass Enclosures - "Conchiglia"
Vertical rack for cabinets Conchiglia=940mm + Rails, uprights Conchiglia, D=460mm
RAR
46.29 Kb
RAR
34.66 Kb
Fibreglass Enclosures - "Conchiglia"
Vertical rack for cabinets Conchiglia=715мм, + Rails, uprights Conchiglia, D=330mm
RAR
34.48 Kb
RAR
22.15 Kb
Fibreglass Enclosures - "Conchiglia"
Vertical rack for cabinets Conchiglia=715мм + Rails, uprights Conchiglia, D=460mm
RAR
40.86 Kb
RAR
24.83 Kb
Fibreglass Enclosures - "Conchiglia"
Vertical rack for cabinets Conchiglia=580mm + Rails, uprights Conchiglia, D=460mm
RAR
41.55 Kb
RAR
25.26 Kb
Fibreglass Enclosures - "Conchiglia"
Vertical rack for cabinets Conchiglia=580mm + Rails, uprights Conchiglia, D=330mm
RAR
34.97 Kb
RAR
22.62 Kb
Fibreglass Enclosures - "Conchiglia"
Vertical rack for cabinets Conchiglia=490mm + Rails, uprights Conchiglia, D=460mm
RAR
40.91 Kb
RAR
24.96 Kb
Fibreglass Enclosures - "Conchiglia"
Vertical rack for cabinets Conchiglia=490mm + Rails, uprights Conchiglia, D=330mm
RAR
34.78 Kb
RAR
21.85 Kb
Fibreglass Enclosures - "Conchiglia"
Vertical rack for cabinets Conchiglia=1390мм, + Rails, uprights Conchiglia, D=330mm
RAR
47.61 Kb
RAR
44.21 Kb
Fibreglass Enclosures - "Conchiglia"
Vertical rack for cabinets Conchiglia=1390мм + Rails, uprights Conchiglia, D=460mm
RAR
53.96 Kb
RAR
48.02 Kb
Fibreglass Enclosures - "Conchiglia"
Vertical rack for cabinets Conchiglia In=400mm + Rails, uprights Conchiglia, D=330mm
RAR
34.92 Kb
RAR
23.4 Kb
Fibreglass Enclosures - "Conchiglia"
Kit for fastening the mounting Board to the rack + the Rack In=1390 + Guide G=460
RAR
76.08 Kb
RAR
68.51 Kb
Fibreglass Enclosures - "Conchiglia"
Fiberglass enclosures series "Conchiglia"
ZIP
61.17 Mb
Fibreglass Enclosures - "Conchiglia"
Circuit Board, to cabinets Conchiglia 1390 x 580 mm
RAR
15.42 Kb
RAR
5.99 Kb
Fibreglass Enclosures - "Conchiglia"
2 the Frame Assembly, for cabinets Conchiglia, HxW: 715 x 685 mm
RAR
61.83 Kb
RAR
44.56 Kb
Fibreglass Enclosures - "Conchiglia"
2 the Frame Assembly, for cabinets Conchiglia, HxW: 490 x 685 mm
RAR
61.67 Kb
RAR
40.04 Kb
Fibreglass Enclosures - "Conchiglia"
2 the Frame Assembly, for cabinets Conchiglia, HxW: 1390 x 580 mm
RAR
70.62 Kb
RAR
45.37 Kb
Show all
Certificates
Name Document
Test report prefabricated cabinets fiberglass "Conchiglia" IP and IK_1
PDF
2.43 MB
Test report of prefabricated cabinets fiberglass "Conchiglia" on the vibration_1
PDF
556.80 kB
Test report of prefabricated cabinets fiberglass "Conchiglia" to detect the resonant frequencies_1
PDF
611.82 kB
Test report of prefabricated cabinets fiberglass "Conchiglia" on seismic stability_1
PDF
559.45 kB
Test report of prefabricated cabinets fiberglass "Conchiglia" for resistance to flames_1
PDF
724.57 kB
Test report prefabricated cabinets fiberglass "Conchiglia" UHL1_1
PDF
726.98 kB
Certificate of conformity to GOST R for prefabricated cabinets fiberglass "Conchiglia"
PDF
531.85 kB
The Certificate of Maritime Register on prefabricated cabinets fiberglass "Conchiglia"
PDF
10.97 MB
“Conchiglia”_ The test report of the hull assembly of the floor hinged for NKU from glass-filled material to meet the requirements of the degree of protection provided by the sheath
PDF
893.46 kB
