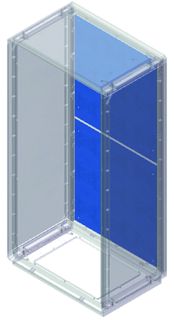

Mounting plate for cabinet Conchiglia 940 x 580 мм

Code: 095775052
Width, mm 805
Height, mm 455
Perforated No
Surface protection Zinc coated
Material Steel
Material Galvanized steel
Height, mm 940
Width, mm 580
Thickness, mm 2
Drawings
Seria Name DWG (dynamic blocks) DWG STEP
