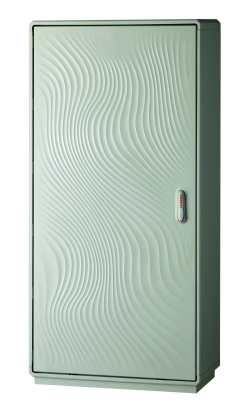

Floor cabinet Conchiglia 580x580x460мм

Code: 077513109
Floor cabinet Conchiglia 580x580x460мм
  • To ask a question
Colour Grey
Width, mm 580
Height, mm 580
Depth, mm 460
With mounting plate Нет
Number of doors 1
Number of locks 1
EMC-version Нет
With glazed door Нет
Floor mounting possible Да
Material Plastic
Wall mounting possible Нет
Degree of protection (IP) IP65
Suitable for outdoor set-up Да
Suitable for metrical mounting Нет
Mounting plate depth-adjustable Нет
Tackable Да
With ventilation door Нет
Surface finishing Untreated
With backside door Нет
Flush-mounted installation Нет
RAL-number 7035
Impact strength IK10
Material quality GRP (Glass fiber reinforced plastic)
Wall build in Нет
Pitched roof Нет
Pole fastening Нет
Product type Conchiglia assembled enclosures
Mounting type Floor
Material Fiberglass
Door type Raised surface (antisticker)
Degree of protection IP65
Climatic version (according to GOST 15150-69) UHL1
Flammability ratings (according to UL94) V0
Impact protection ratings IK10
Delivery package Front door, rear wall, roof, base with solid panel
Modification possibility Enclosures can be connected in width, depth and height. The door hinge changes. Cut-outs on request.
Height 580 mm
Width 580 mm
Depth 460 mm
Accessories
The accompanying goods
Drawings
Seria Name DWG STEP DWG (dynamic blocks)
Fibreglass Enclosures - "Conchiglia"
Fibreglass Enclosures - "Conchiglia"
