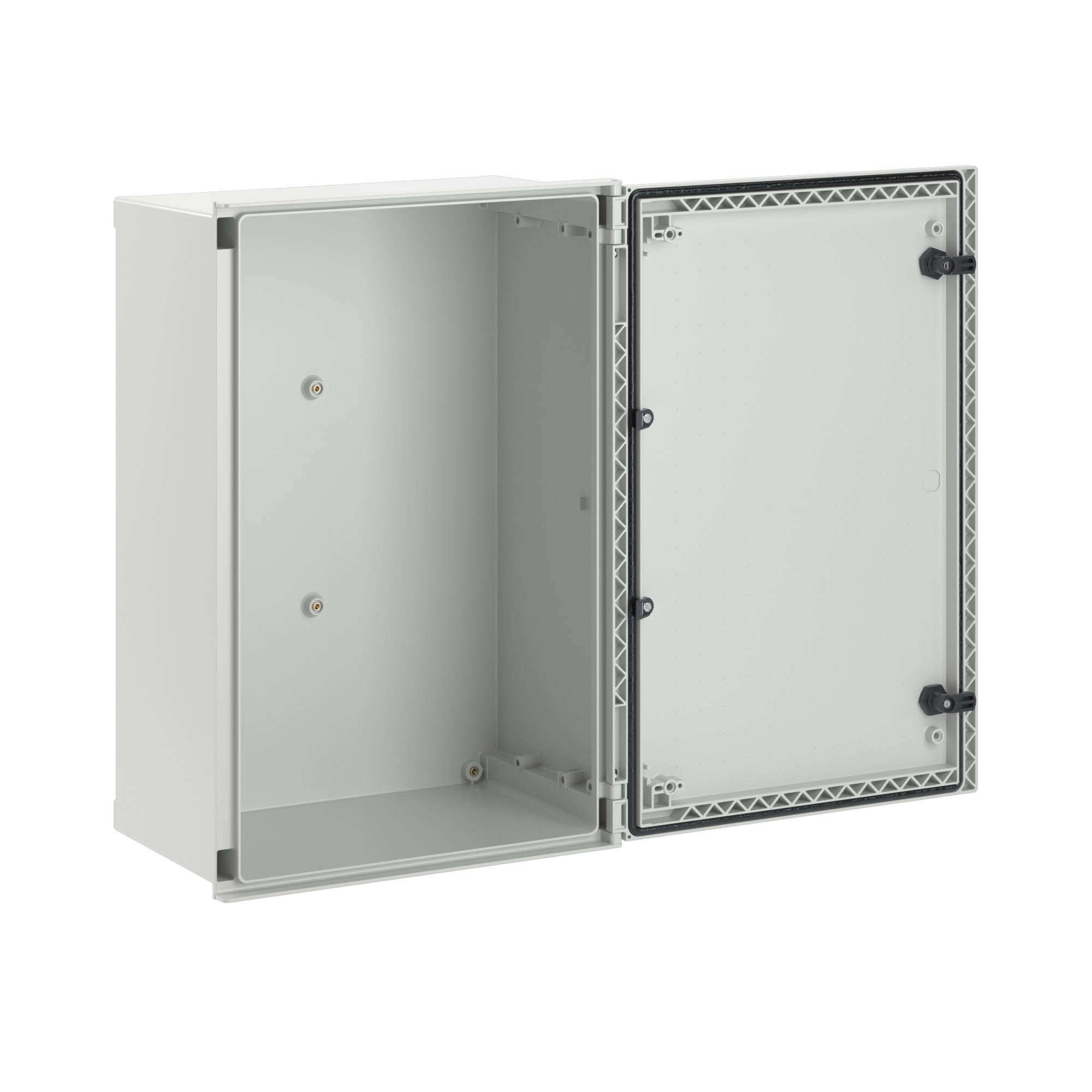

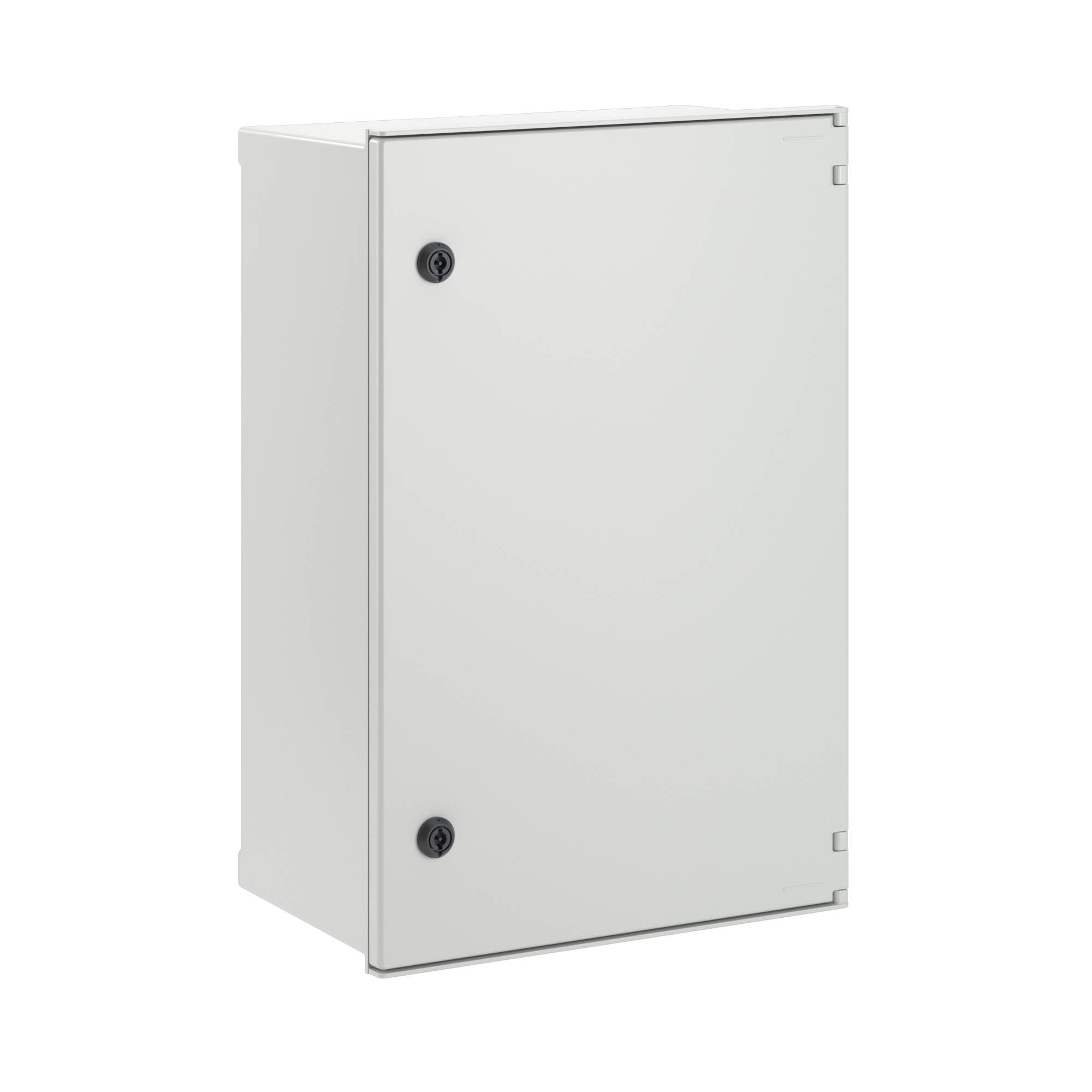

Solid wall-mounted fibreglass enclosure w/o MP with solid door 600х500х230 mm
Code:
CN50659
Code:
CN50659
| Colour | Grey |
| Width, mm | 500 |
| Height, mm | 600 |
| Depth, mm | 230 |
| RAL-number | 7035 |
| With mounting plate | Yes |
| Number of doors | 1 |
| Number of locks | 2 |
| EMC-version | Yes |
| With glazed door | Yes |
| Material | Plastic |
| Degree of protection (IP) | IP66 |
| Suitable for outdoor set-up | Yes |
| Suitable for metrical mounting | Yes |
| Mounting plate depth-adjustable | Yes |
| Tackable | Yes |
| With ventilation door | Yes |
| Surface finishing | Untreated |
| With backside door | Yes |
| Impact strength | IK10 |
| Material quality | GRP (Glass fiber reinforced plastic) |
| Wall build in | Yes |
| Pitched roof | Yes |
| Pole fastening | Yes |
| Product type | Solid Wall-mounted Fibreglass Enclosures |
| Mounting type | Wall-mounted |
| Material | Fiberglass |
| Door type | Solid door |
| Degree of protection | IP66 |
| Climatic version (according to GOST 15150-69) | UHL1 |
| Flammability ratings (according to UL94) | V0 |
| Impact protection ratings | IK10 |
| Delivery package | Front door, solid enclosure, screws for direct wall mounting. |
| Modification possibility | Symmetrical enclosure. The door hinge is changed by turning the enclosure. Cut-outs on request. |
| Height | 600 mm |
| Width | 500 mm |
| Depth | 230 mm |
