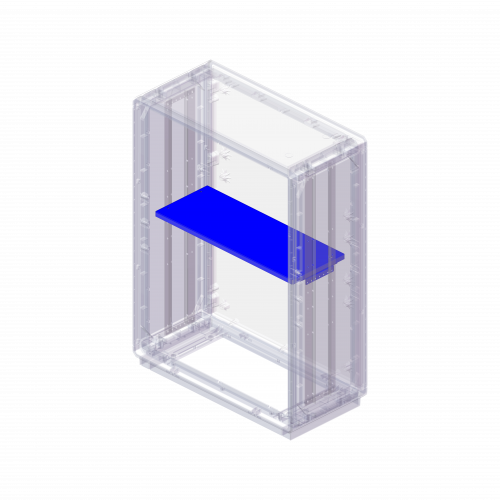

Equipments holding shelves for Conchiglia enclosure WxD 580x460

Code: 095775649
Equipments holding shelves for Conchiglia enclosure WxD 580x460
Equipments holding shelves for Conchiglia enclosure WxD 580x460
Colour Other
Width, mm 485
Model Base plate
Height, mm 17
Depth, mm 330
Material Metal
Max. load capacity, kg 50
Suitable for enclosure building width, mm 485
Suitable for enclosure building depth, mm 330
