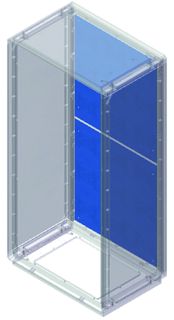

Mounting plate for cabinet Conchiglia 580 x 580 мм

Code: 095775037
Mounting plate for cabinet Conchiglia 580 x 580 мм
Mounting plate for cabinet Conchiglia 580 x 580 мм

Mounting plate for cabinet Conchiglia 580 x 580 мм

Code: 095775037
Removed from the product range . Proposed replacement: CN5PCE055
Width, mm 445
Height, mm 455
Perforated Yes
Surface protection Galvanized
Material Steel
Product type Accessories for Conchiglia Assembled Enclosures
Suitable for enclosure height 550/580
Suitable for enclosure widht 580
Suitable for enclosure depth Any
Accessory type for Conchiglia Assembled Enclosures Mounting panel and components
