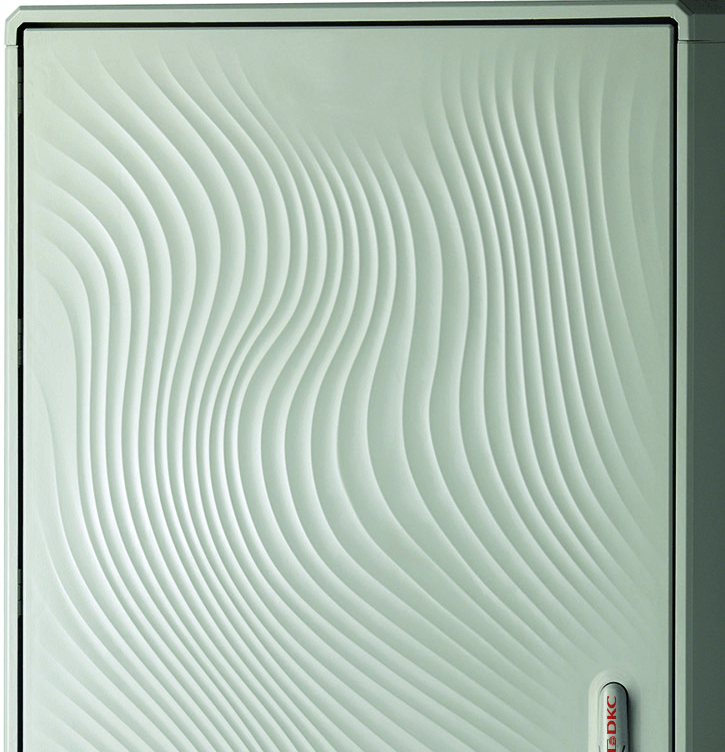

Floor cabinet Conchiglia 400x580x330мм
Floor cabinet Conchiglia 400x580x330мм
Code:
077500106
To ask a question
Products card
Characteristics
Accessories
The accompanying goods
Drawings
Certificates
ETIM
Characteristics
Colour
Grey
Width, mm
580
Height, mm
400
Depth, mm
330
With mounting plate
No
Number of doors
1
Number of locks
1
EMC-version
No
With glazed door
No
Floor mounting possible
Yes
Material
Plastic
Wall mounting possible
No
Degree of protection (IP)
IP65
Suitable for outdoor set-up
Yes
Suitable for metrical mounting
No
Mounting plate depth-adjustable
No
Tackable
Yes
With ventilation door
No
Type of surface
Untreated
With backside door
No
Flush-mounted installation
No
RAL-number
7035
Impact strength
IK10
Material quality
GRP
Wall build in
No
Pitched roof
No
Pole fastening
No
Product type
Conchiglia assembled enclosures
Mounting type
Floor
Material
Fiberglass
Door type
Raised surface (antisticker)
Degree of protection
IP65
Climatic version (according to GOST 15150-69)
UHL1
Flammability ratings (according to UL94)
V0
Impact protection ratings
IK10
Delivery package
Front door, rear wall, roof, base with solid panel
Modification possibility
Enclosures can be connected in width, depth and height. The door hinge changes. Cut-outs on request.
Height
400 mm
Width
580 mm
Depth
330 mm
Accessories
The accompanying goods
Drawings
Seria
Name
DWG
STEP
DWG (dynamic blocks)
Conchiglia - Fibreglass Enclosures
Outdoor Cabinet Conchiglia 400х580х330мм
RAR
477.28 kB
RAR
8.61 MB
Conchiglia - Fibreglass Enclosures
Fiberglass enclosures series "Conchiglia"
ZIP
61.17 MB
Certificates
Name
Document
Test report prefabricated cabinets fiberglass "Conchiglia" IP and IK_1
PDF
2.43 MB
Test report of prefabricated cabinets fiberglass "Conchiglia" on the vibration_1
PDF
556.80 kB
Test report of prefabricated cabinets fiberglass "Conchiglia" to detect the resonant frequencies_1
PDF
611.82 kB
Test report of prefabricated cabinets fiberglass "Conchiglia" on seismic stability_1
PDF
559.45 kB
Test report of prefabricated cabinets fiberglass "Conchiglia" for resistance to flames_1
PDF
724.57 kB
Test report prefabricated cabinets fiberglass "Conchiglia" UHL1_1
PDF
726.98 kB
Certificate of conformity to GOST R for prefabricated cabinets fiberglass "Conchiglia"
PDF
531.85 kB
The Certificate of Maritime Register on prefabricated cabinets fiberglass "Conchiglia"
PDF
10.97 MB
“Conchiglia”_ The test report of the hull assembly of the floor hinged for NKU from glass-filled material to meet the requirements of the degree of protection provided by the sheath
PDF
893.46 kB
Exemption Letter for Fiberglass enclosures
PDF
5.50 MB
Certificate of conformity for Fiberglass enclosures
PDF
626.84 kB
