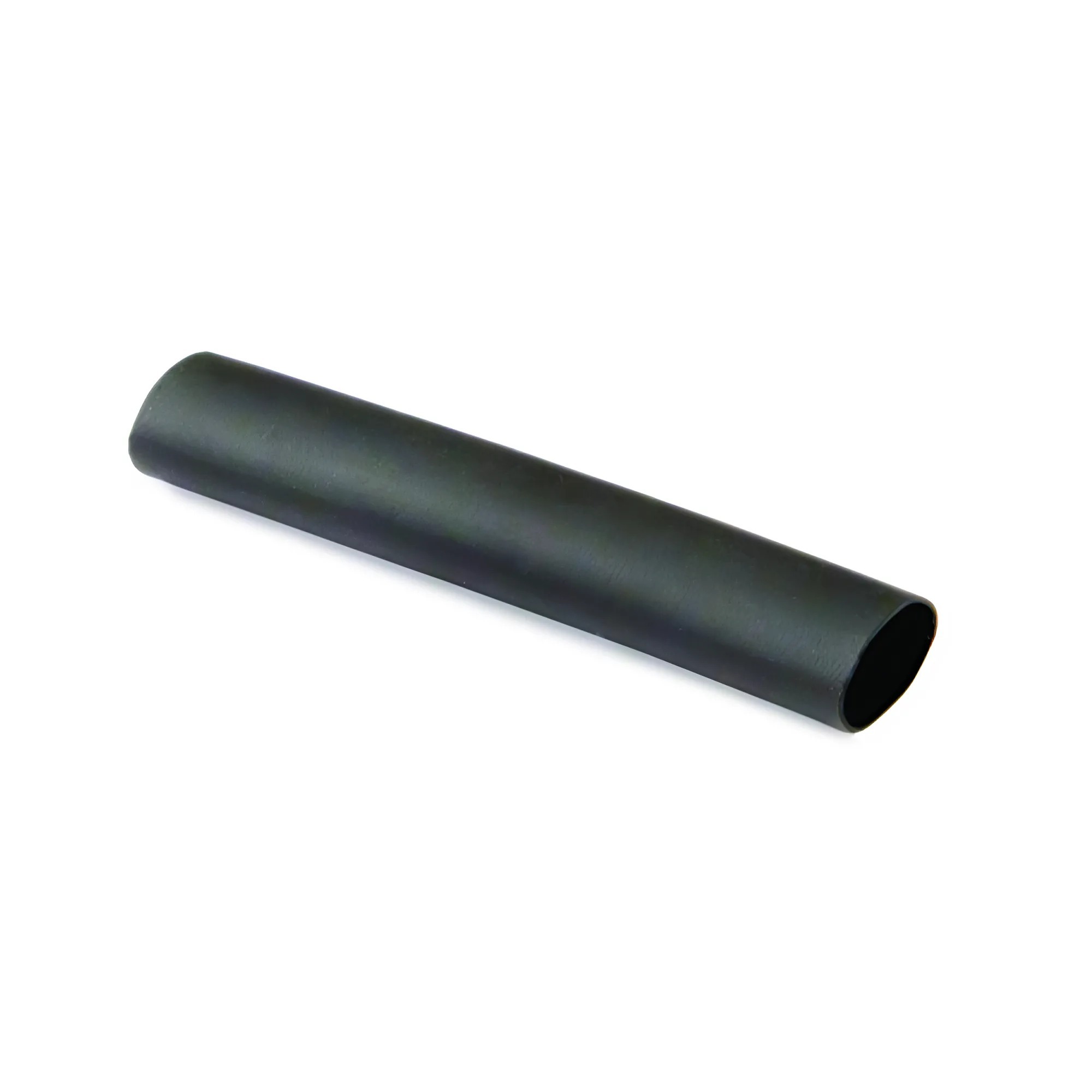

Heat shrink flame retardant tube with glue 52/13 mm black 4:1
Code: 2NFD401520
Heat shrink flame retardant tube with glue 52/13 mm black 4:1
Code: 2NFD401520
| Colour | Black |
| Model | Thin-walled |
| Halogen free | No |
| Wall thickness after shrinking, mm | 2.5 |
| Length, m | 1 |
| Material | Polyolefin (PO-X) |
| Operating temperature, °C | -55…110 |
| Inner diameter before heat-shrink, mm | 52 |
| Inner diameter after heat-shrink, mm | 13 |
| Printable | No |
| With inner glue | Yes |
| Nominal diameter inch | Other |
| Shrink rate | 4:1 |
| UL approval | Yes |
| Type | Heat-shrink |
| Delivery form | 1 meter pieces |
| Product type | Heat shrinkable tubes |
Drawings
| Seria | Name | Eplan |
|---|---|---|
|
Quadro - Heat shrinkable tubes
|
