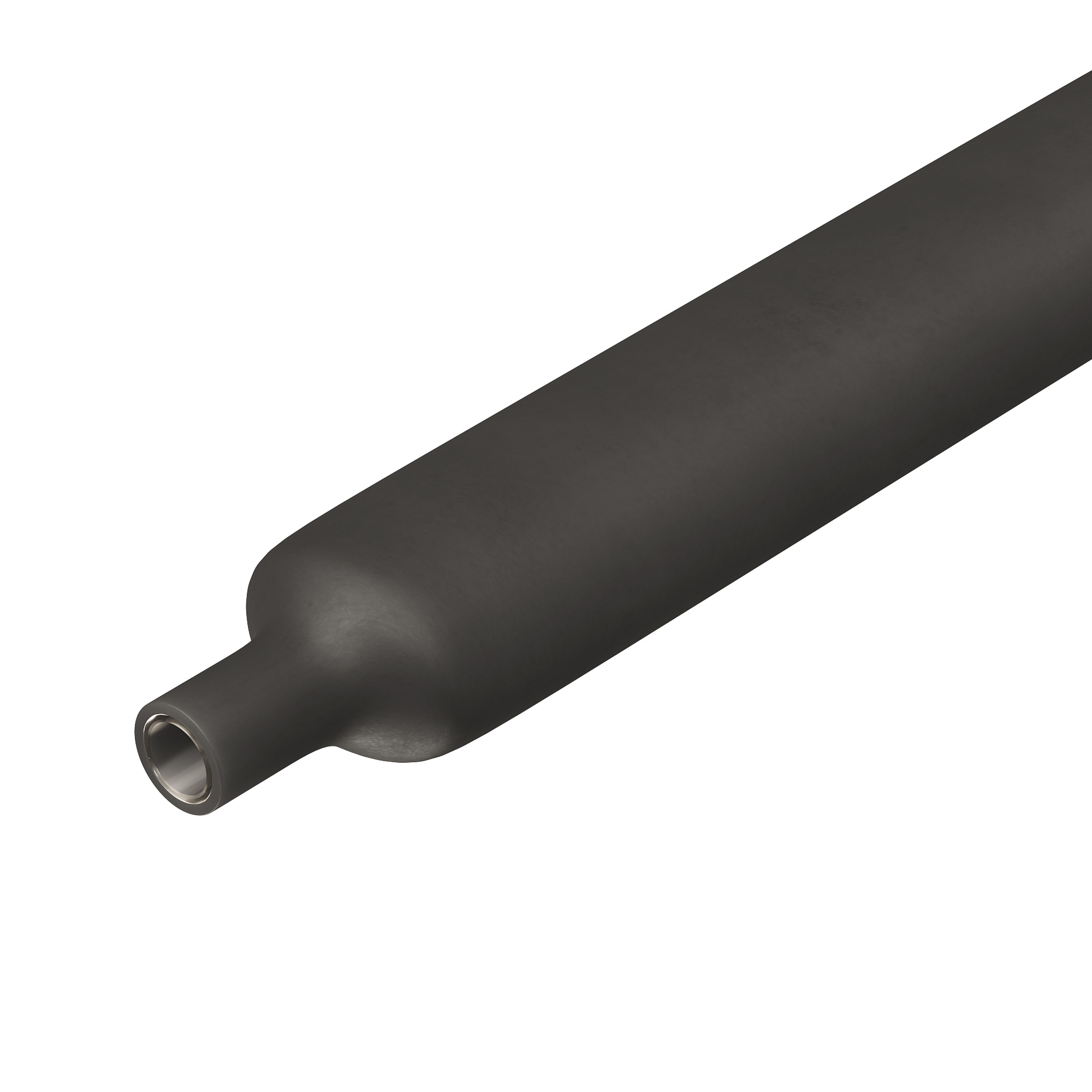

Heat shrink self-extinguishing tube glue composition 24/8 mm black 3:1
Code: TN3PCG301240V0BK
Heat shrink self-extinguishing tube glue composition 24/8 mm black 3:1
Code: TN3PCG301240V0BK
| Colour | Black |
| Model | Thin-walled |
| Halogen free | No |
| Wall thickness after shrinking, mm | 2.5 |
| Type | Heat-shrink |
| Length, m | 1 |
| Material | Polyolefin (PO-X) |
| Operating temperature, °C | -55...110 |
| Inner diameter before heat-shrink, mm | 24 |
| Inner diameter after heat-shrink, mm | 8 |
| Printable | No |
| With inner glue | Yes |
| Shrink rate | 3:1 |
| UL approval | Yes |
Drawings
| Seria | Name | Eplan |
|---|---|---|
|
Quadro - Heat shrinkable tubes
|
