| Width, mm | 118 |
| Height, mm | 185 |
| Depth, mm | 179 |
| Lockable | No |
| With hinged lid | No |
| With socket outlet | No |
| Number of phases | 3 |
| With child-protection | No |
| Frequency, Hz | 50 |
| Cable entry | Gland nut |
| Extension possible | No |
| With transparent cover | No |
| Switch-off function | No |
| Fault current protection | No |
| Number of poles | 4 |
| Contact less detection of the sense of rotation | No |
| Material | Plastic |
| IEC-amperage, A | 63 |
| For heavy conditions (in accordance with VDE) | No |
| Phase inverter | No |
| Empty locations on mounting rail | No |
| Number of height units | 1 |
| With earth leakage switch | No |
| Degree of protection (IP) | IP67 |
| Total number of groups | 1 |
| Clock hour position, h | 6 |
| Identification colour | Red |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Drill hole distance vertical, mm | 204 |
| Drill hole distance horizontal, mm | 96 |
| Width of device, mm | 118 |
| Height of device, mm | 267 |
| Depth of device, mm | 179 |
| Angle of plug | Right-angled |
| Connection system | Screwed terminal |

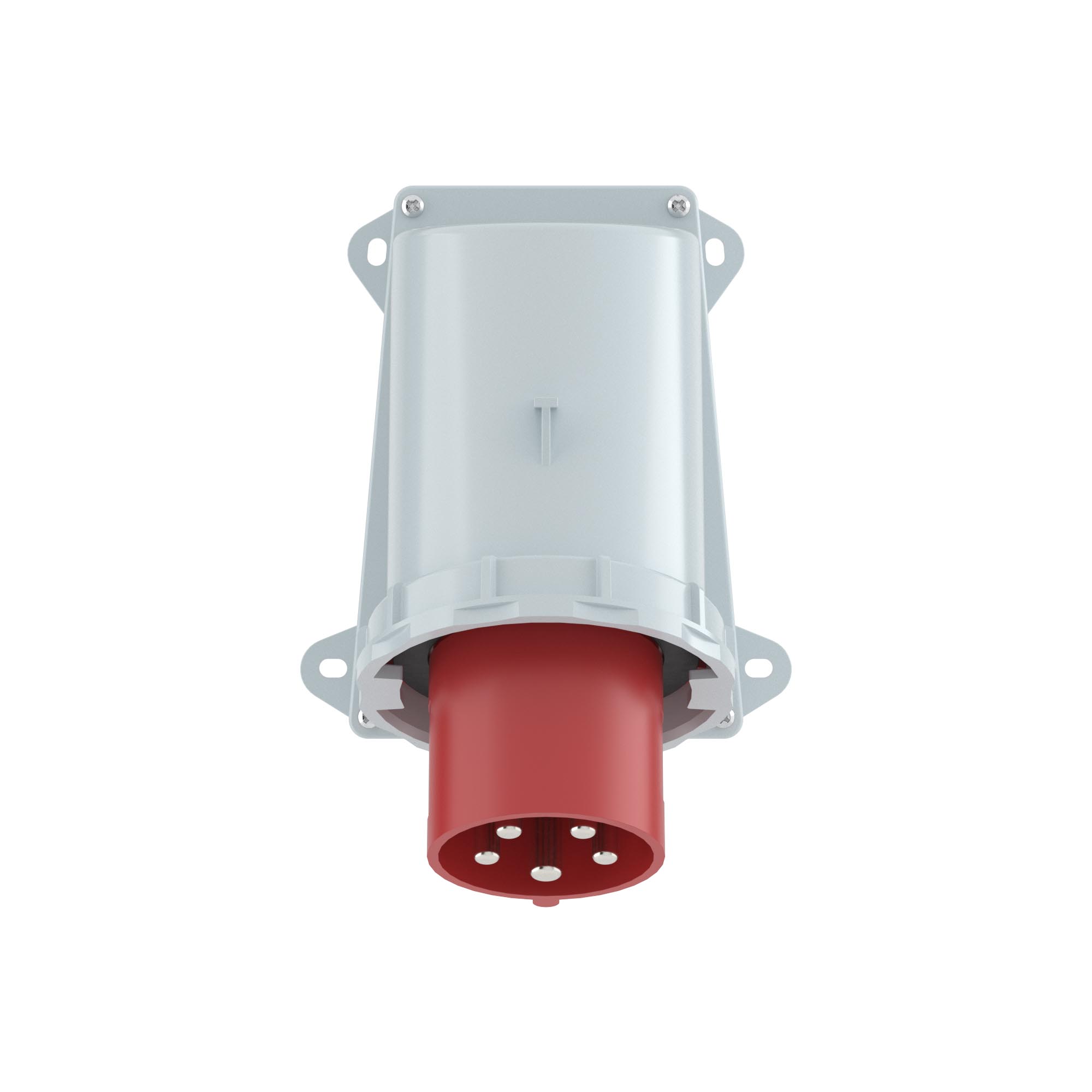

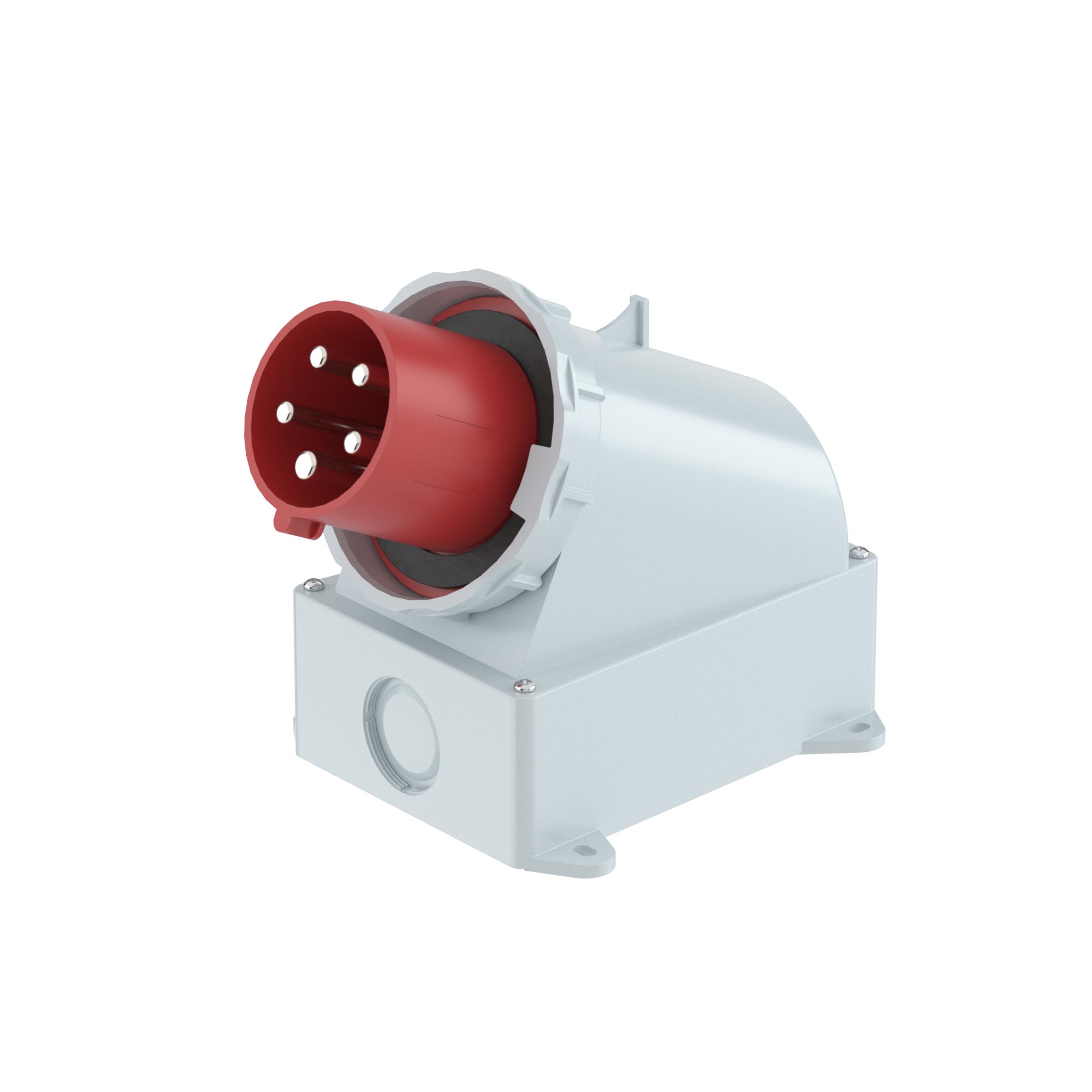

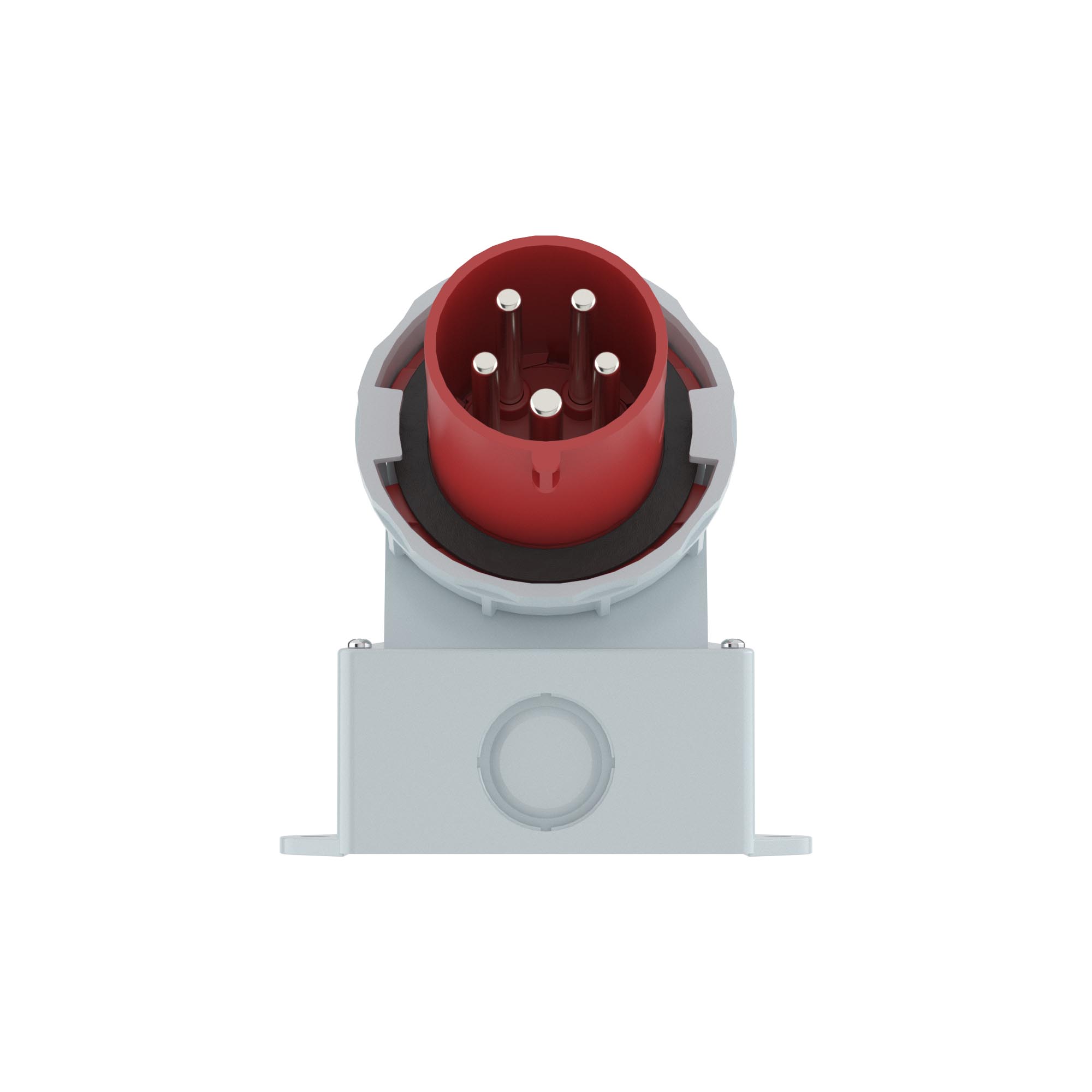

| Product type | Surface mounting plug |
| Voltage | 400V |
Accessories

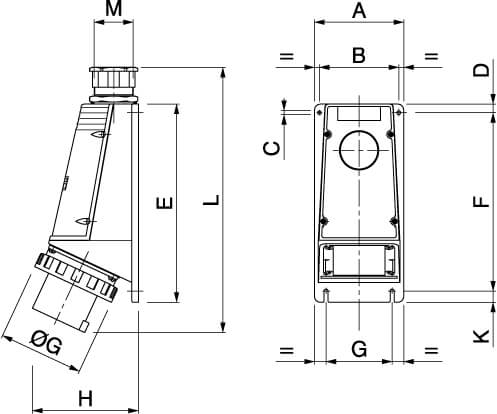

Drawings
| Seria | Name | Eplan | DWG |
|---|---|---|---|
|
