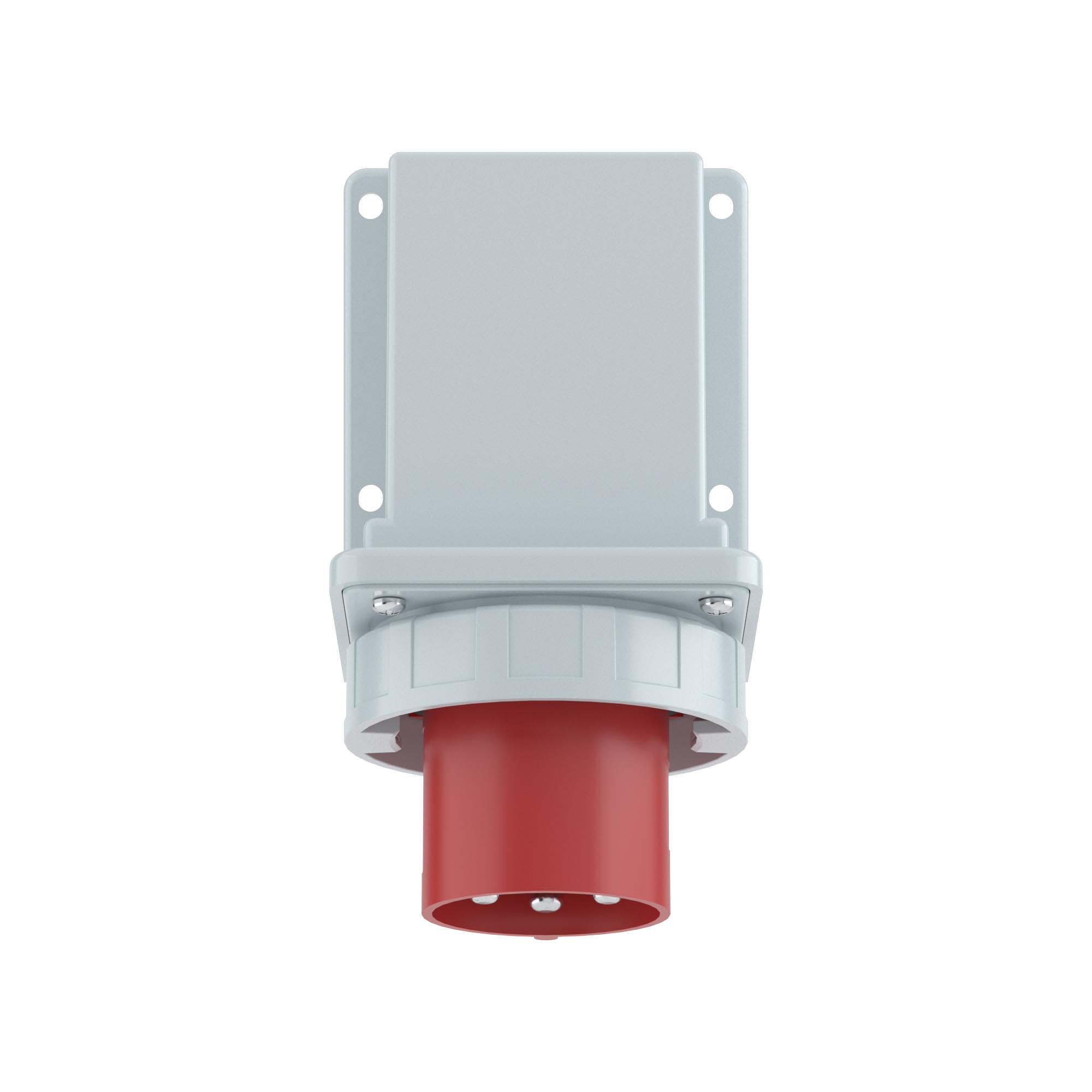

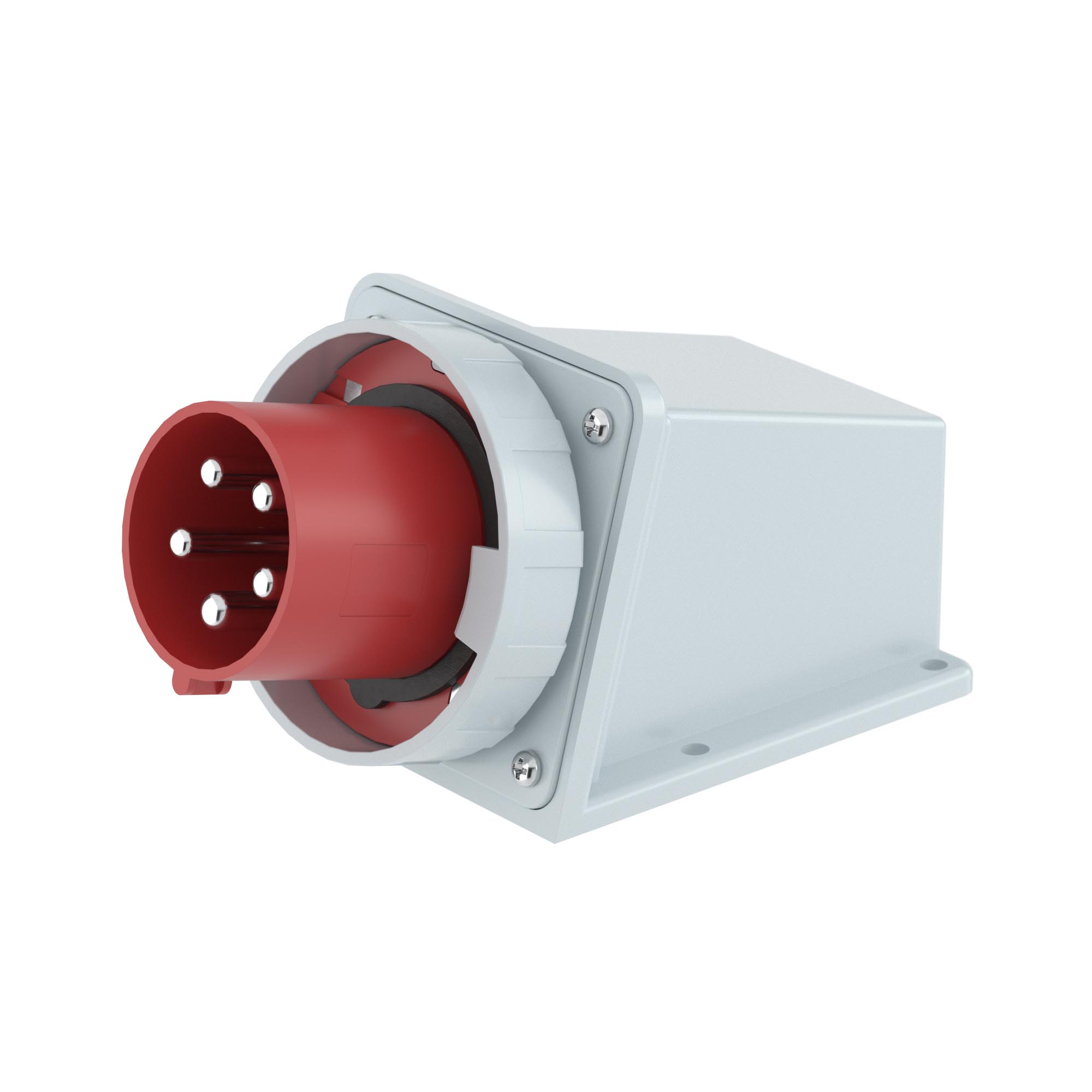

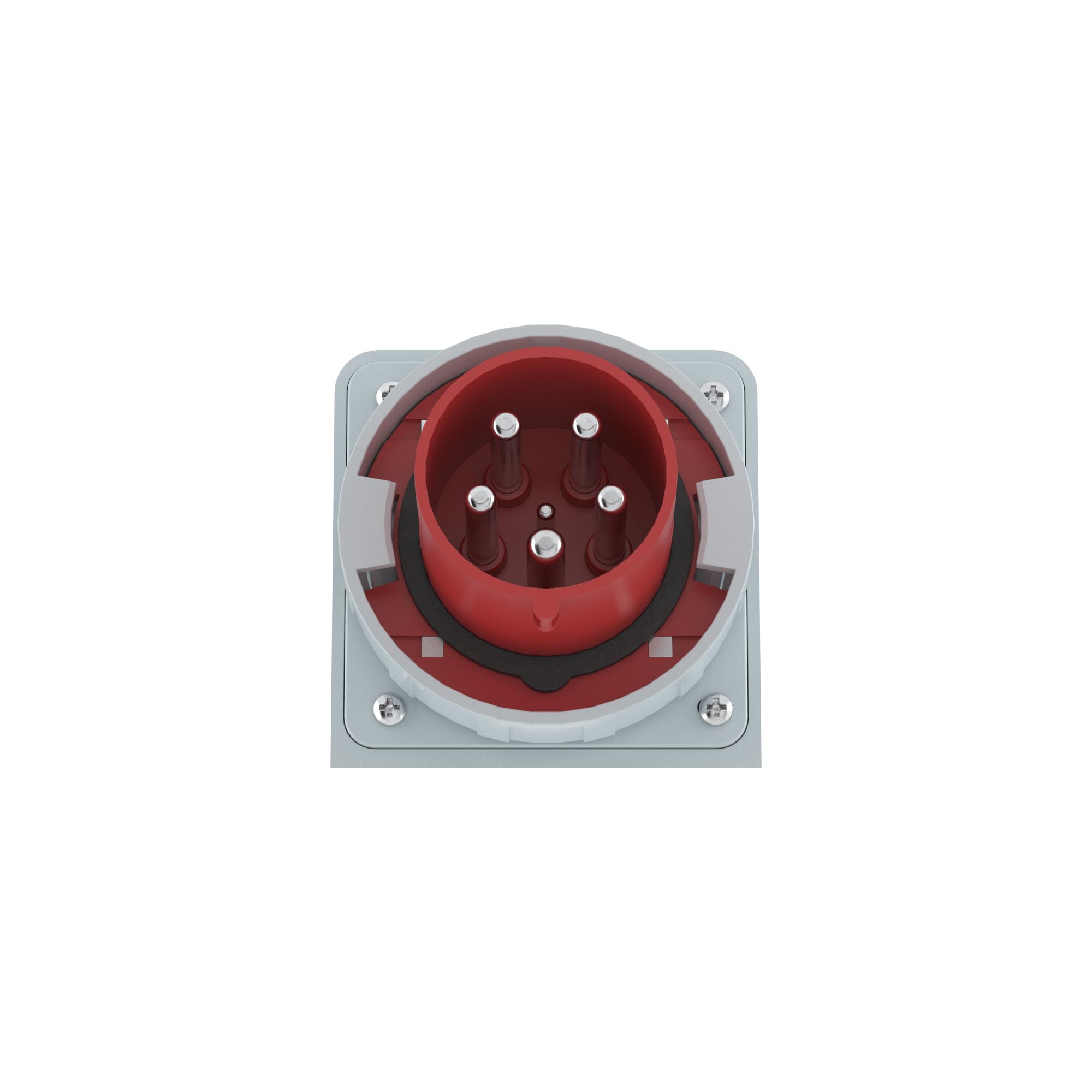

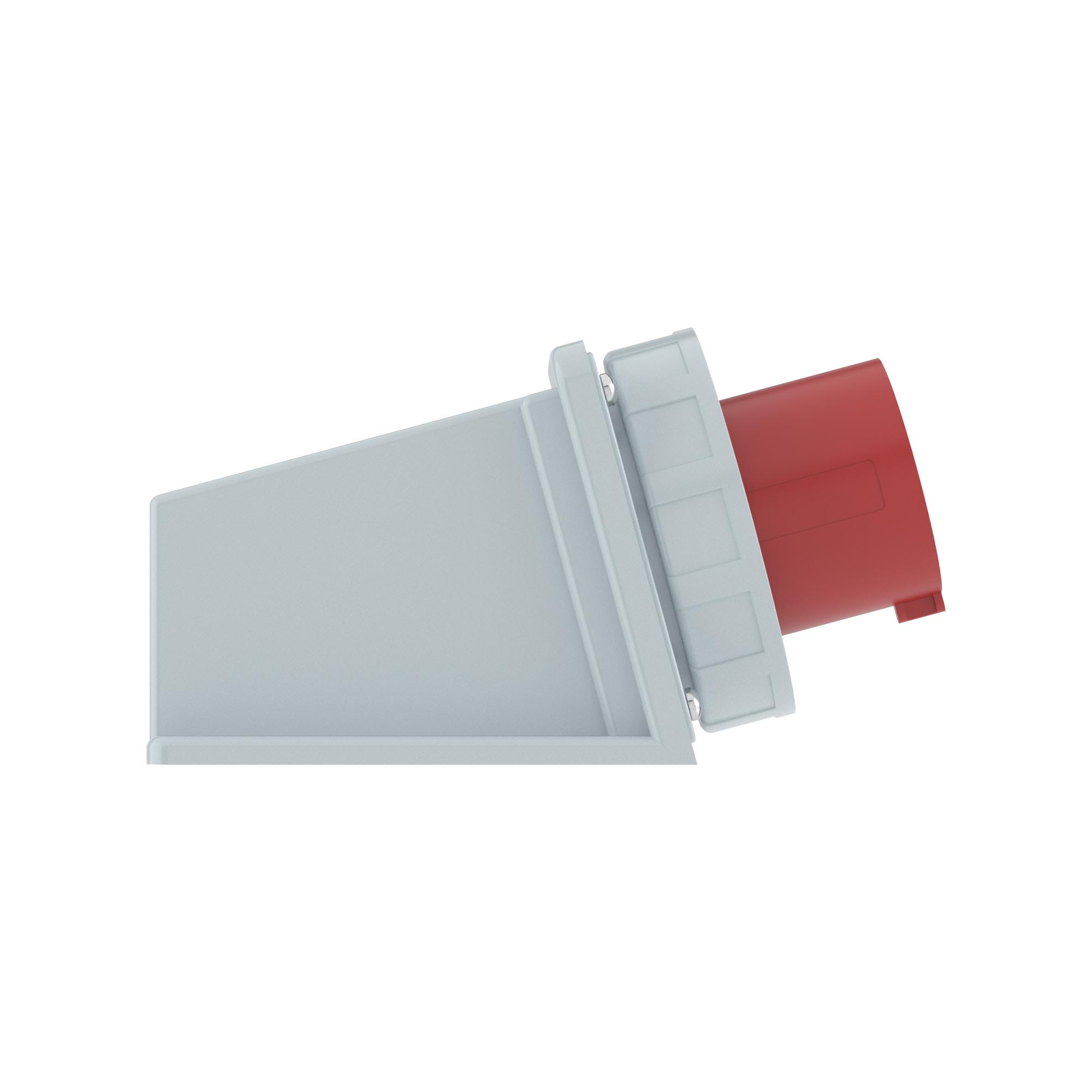

Wall plug WP IP67 125А 3P+E+N 400V
Code: DIS245M12597
Wall plug WP IP67 125А 3P+E+N 400V
Code: DIS245M12597
| Cable entry | Swivel |
| Number of poles | 5 |
| Material | Plastic |
| IEC-amperage, A | 125 |
| Phase inverter | No |
| Degree of protection (IP) | IP67 |
| Clock hour position, h | 6 |
| Identification colour | Red |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
| Connection system | Screwed terminal |
| Height | 264,7 mm |
| GWFI | +850°С |
| Q'ty of holes | 1 |
| Q'ty of poles | 3P+E+N |
| Temperature of operation | +40°С |
| Material of case | polyamide |
| Voltage | 400V |
| Clock position | 6h |
| Degree of protection | IP67 |
| -5°С ... +60°С | -25°С...+40°С |
| Temperature of dinamic operation | -25°С...+40°С |
| Temperature of static operation | -40°С...+40°С |
| Product type | Surface mounting plug |
| Current | 125А |
| Color | Red |
| Width | 138,8 mm |
Accessories

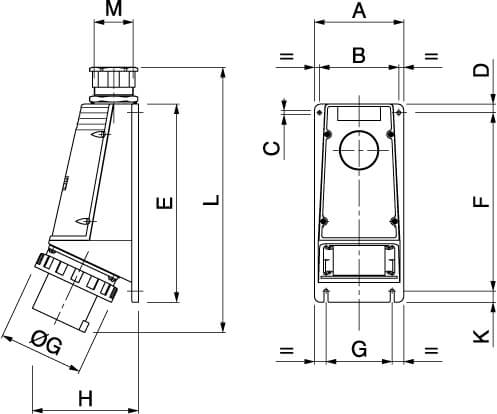

Drawings
| Seria | Name | DWG | Eplan |
|---|---|---|---|
|
