Form cover for installation of “In-liner Front” under floor box of 12 modules

Code: 88212
Form cover for installation of “In-liner Front” under floor box of 12 modules
Form cover for installation of “In-liner Front” under floor box of 12 modules

Form cover for installation of “In-liner Front” under floor box of 12 modules

Code: 88212

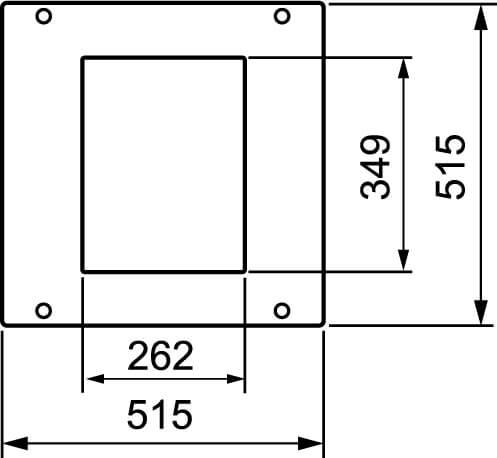

Width, mm 515
Material thickness, mm 2
Length, mm 515
Material Steel
Cover mounting opening Yes
Floor maintenance Wet
Mounting opening Square
Temperature of mounting, °C -40°С ° +60°С
Temperature of operation, °C -40°С ° +60°С
Climate version UHL4
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Product type Form cover
The accompanying goods
Certificates
Name Document
In-liner_In-liner Front - Sanitary-epidemiological conclusion for ducts
PDF
2.31 MB
In-liner_In-liner Front - Exemption letter for Sanitary-epidemiological conclusion for cable ducts and miniducts with accessories_1
PDF
1.14 MB
Certificate of compliance for underfloor box "In-liner Front"
PDF
539.90 kB
In-liner_In-liner Front - Fire safety certificates for miniducts TMR and floor ducts CSP-F
PDF
392.95 kB
"In-liner_In-liner Front" - Certificate of conformity to GOST R for miniducts TMR and floor ducts CSP-F
PDF
514.76 kB
Certificate of conformity to GOST R for on the cable ducts, a series of "In-liner" and "In-liner Front" and accessories
PDF
1.09 MB
The Certificate of expert opinion for cable ducts and miniducts
PDF
3.09 MB
