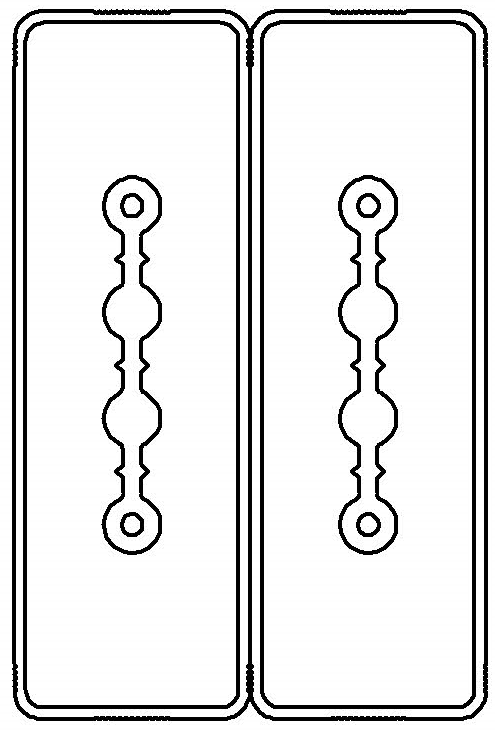

2P+2P 25A CU - Straight element 1 meter - 1 plug-in

2P+2P 25A CU - Straight element 1 meter - 1 plug-in

Code: LTC25BSP44AA000

To ask a question

ETIM

Colour	Grey
Width, mm	47
Model	Double
Height, mm	83.5
Flexible	No
Number of conductors (without earthing)	4
Number of poles	4

Length, mm	1000
Degree of protection (IP)	IP55
Rated voltage at 50 Hz, V	400
Number of tap-off units	2
Rated current at AC 50 Hz, A	25
Length busbar trunk, m	1000

Accessories

Hexagon nut with serrate flange М6

Code: CM100600

Metric sealing washers M25

Code: PAPM25

Threaded rod М6х2000

Code: CM200602

Chain

Code: CM610010

Hexagon nut with serrate flange M6 inox

Code: CM100600INOX

Speed link rope L5000 wire 2 mm

Code: CM620050

Speed link rope L10000 wire 2 mm

Code: CM620100

Simple bracket double

Code: LTN70QFIU1AA000

Plain washer М6 DIN9021

Code: CM120600

2P+2P/4P+4P/4P+2P 25A CU - Feeder 1 + End cover 2

Code: LTC25FFED3AA000

2P+2P/4P+4P/4P+2P 25A CU - Feeder 2 + End cover 1

Code: LTC25FFED4AA000

Prewired plug-in 10A N/L3 - 0,8m H05Z1Z1F

Code: LTN70APP03AA000

Prewired plug-in 10A N/L3 - 3m H05Z1Z1F

Code: LTN70APP13AA000

Prewired plug-in 10A N/L3 - 0,8m FG7(0)M1

Code: LTN70APP23AA000

Prewired plug-in 10A N/L3 - 3m FG7(0)M1

Code: LTN70APP33AA000

Open hook

Code: LTN70ZFIU6AA000

Plain washer М6 DIN9021 inox

Code: CM120600INOX

Threaded rod М6х2000 inox

Code: CM200602INOX

Cable fastening double

Code: LTN70QFIU7AA000

Wire bracket double

Code: LTN70QFIU2AA000

2P+2P/4P+4P/4P+2P 25A CU - Flexible joint

Code: LTC25FFLXJAA000

Drawings

Seria	Name	DWG	DWG (dynamic blocks)
Busbars	The busbars of the series "Hercules"	ZIP 6.21 MB
Busbars	The busbars of the series "Hercules"		ZIP 1.26 MB

Certificates

Name	Document
Certificate of compliance for lighting busbar_Hercules	PDF 614.31 kB
Certificate of compliance for lighting busbar_Hercules	PDF 610.38 kB
Fire safety certificates for lighting busbar_Hercules_1	PDF 2.87 MB
Certificate of compliance for lighting busbar_Hercules_1	PDF 689.70 kB
Certificate of compliance for lighting busbar_Hercules	PDF 619.21 kB
Certificate of conformity for busbars lighting for AC voltage up to 690 V (DKC Power Solutions S.r.l., type LT)	PDF 1.13 MB
The test report for compliance with TR ТС 004/2011 low-voltage complex devices "RAM power" for power distribution system for a rated current of 100 - 1600A	PDF 247.20 kB
Certificate of conformity to TR TS 004/2011 for tap-off units with phase selection	PDF 503.28 kB
