No name

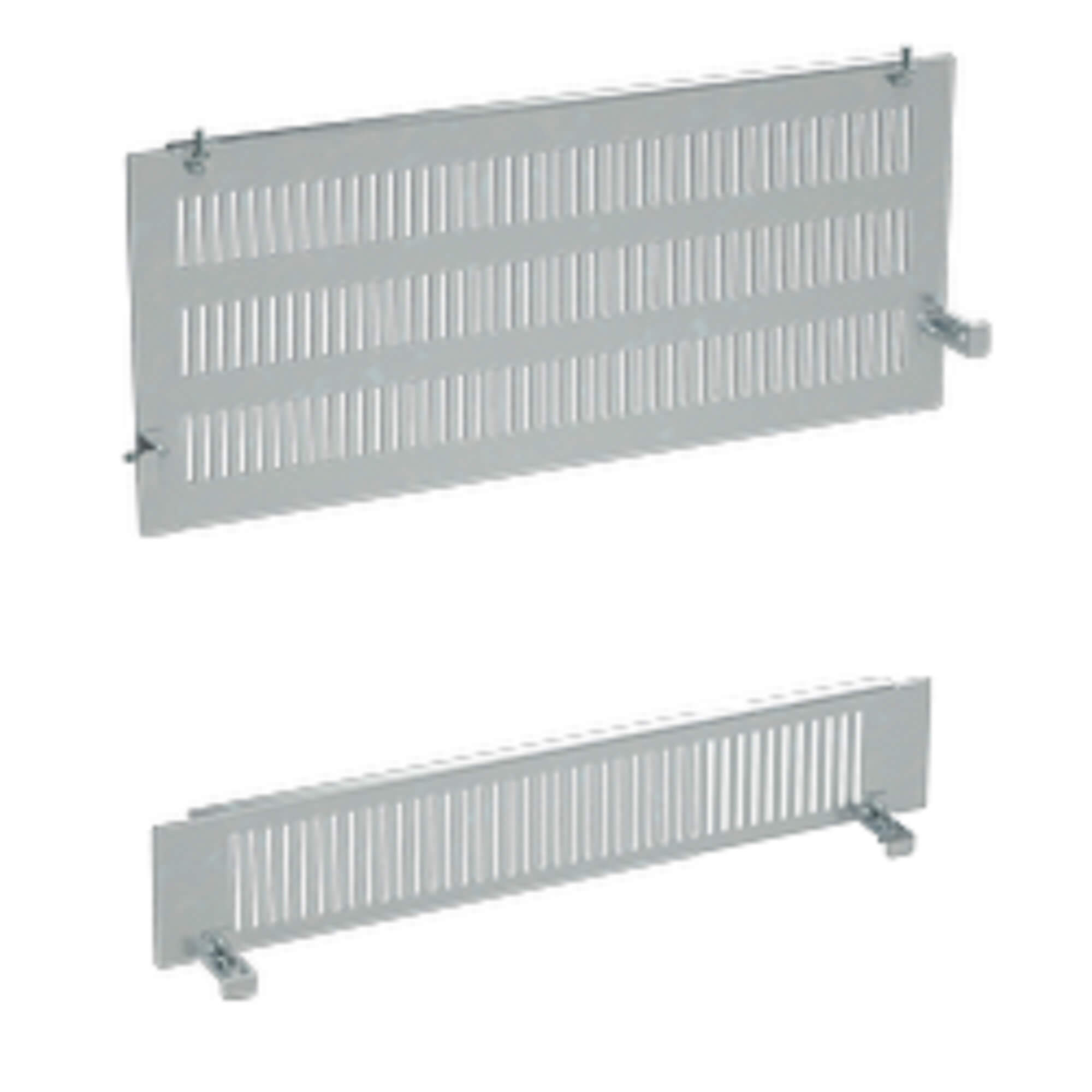

Code: R5SBPF1233
No name
No name

No name

Code: R5SBPF1233
Width, mm 1200
Height, mm 600
Material Steel
Colour Natural colour
Thickness of metal sheet, mm 1.5
Product type Closures
Certificates
Name Document
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
The test report for heating the low-voltage complete device "RAM power" for power distribution system for a rated current of 1600A
PDF
233.33 kB
The test report for resistance to short-circuit currents heating the low-voltage complete device "RAM power" for power distribution system for a rated current of 1600A
PDF
244.51 kB
The test report for compliance with TR ТС 004/2011 low-voltage complex devices "RAM power" for power distribution system for a rated current of 1600 - 3200A
PDF
246.83 kB
The test report for shell tightness the low-voltage complete device "RAM power" for power distribution system for a rated current of 1600A
PDF
414.31 kB
The test report for shell tightness the low-voltage complete device "RAM power" for power distribution system for a rated current of 3200A
PDF
401.15 kB
The test report for lifting with a test static load of 1250 kg the low-voltage complete device "RAM power" for power distribution system for a rated current of 1600A
PDF
425.24 kB
The test report for lifting with a test static load of 1250 kg the low-voltage complete device "RAM power" for power distribution system for a rated current of 3200AThe test report for lifting with a test static load of 1250 kg the low-voltage complete de
PDF
429.44 kB
The test report for compliance with TR ТС 004/2011 low-voltage complex devices "RAM power" for power distribution system for a rated current of 100 - 1600A
PDF
247.20 kB
The test report for heating the low-voltage complete device "RAM power" for power distribution system for a rated current of 1600 – 3200A
PDF
232.02 kB
The test report for resistance to short-circuit currents heating the low-voltage complete device "RAM power" for power distribution system for a rated current of 1600 – 3200A
PDF
242.42 kB
Certificate of conformity to TR TC 004/2011 for the low-voltage complete devices "RAM power" for power distribution system for a rated current of 100 – 1600A
PDF
689.40 kB
Certificate of conformity to TR TC 004/2011 for the low-voltage complete devices "RAM power" for power distribution system for a rated current of 1600 – 3200A
PDF
683.28 kB
Certificate of conformity toTR TC 004/2011 for distribution switchboards “RAM power”(with rated currents of 3200 – 6300 A)
PDF
325.03 kB
The test report for the low-voltage complete device "RAM power PCC" for seismic resistance under intensive dynamic loads (9 points on the MSK-64 scale)
PDF
1.15 MB
Exemption Letter for the low-voltage switchboards RAM power
PDF
196.99 kB
Exemption Letter for the functional clusters and components RAM power
PDF
193.98 kB
