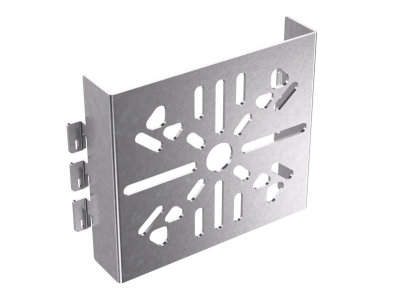

Increased mounting plates 145х130 mm perforated
Code: FC37313
Increased mounting plates 145х130 mm perforated
Code: FC37313
Model | Horizontal/vertical |
Surface protection | Galvanic/electrolytic zinc plated |
Material quality | Steel |
Material | Steel |
Type of fastening | Screw mounting |
Plate width, mm | 130 |
Plate height, mm | 145 |
Stainless steel, pickled | Yes |
Product type | additional components |
Type of accessories | additional components |

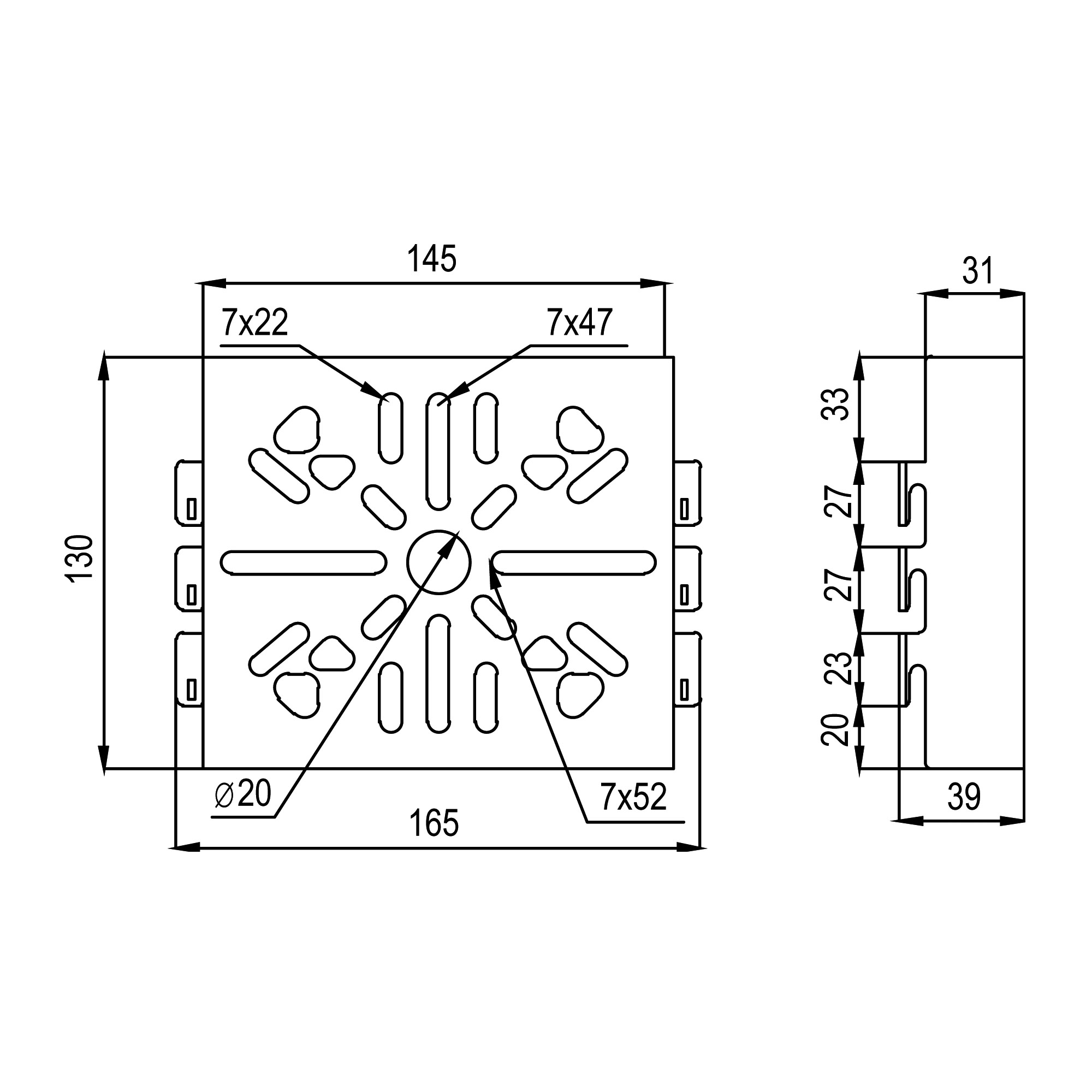

Drawings
Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit |
---|---|---|---|---|
Metal wire mesh trays - "F5 Combitech"
|
|
|
||
Metal wire mesh trays - "F5 Combitech"
|
|
|
||
Metal wire mesh trays - "F5 Combitech"
|
|
|
Certificates
Name | Document |
---|---|
