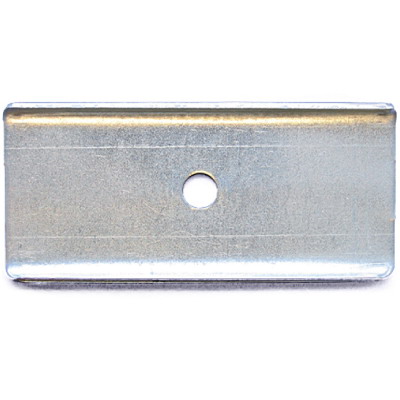

Junction plate with hole

Code: FC37306
Junction plate with hole
Junction plate with hole
Surface protection Continuously galvanized
Material quality Other
Length, mm 80
Material Steel
Suitable for wire mesh tray Yes
Fitting for mesh cable tray filament, mm 50…600
Suitable for cable ladder No
Suitable for cable duct No
Stainless steel, pickled No
Suitable for cable management system height, mm 50…100
Hinged joint horizontal No
Hinged joint vertical No
Suitable for circuit integrity No
Suitable for cable management system width, mm 50…600
Colour Light grey
Model Joint clip bar
Type of connection Screw connector

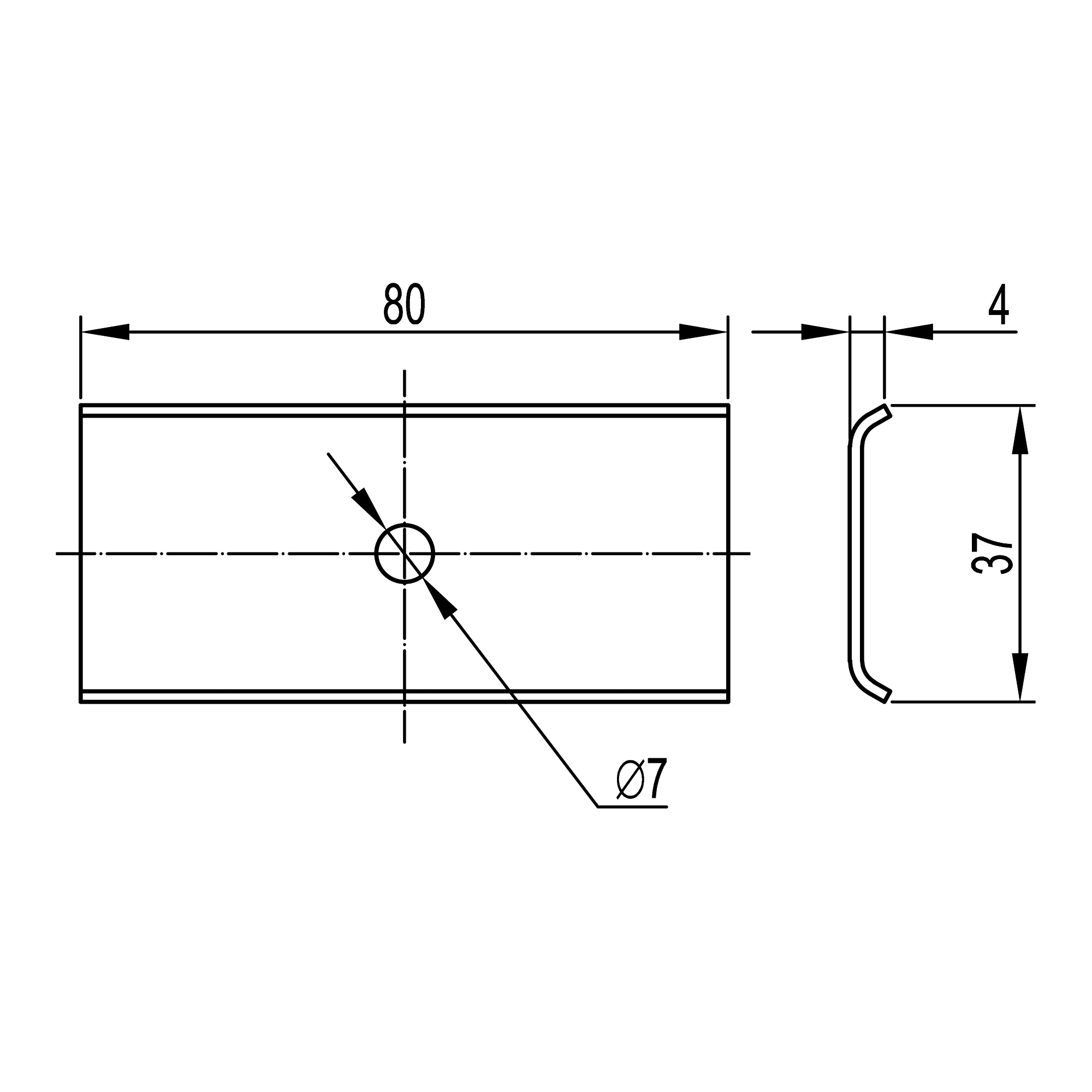

Height, mm 4
Width, mm 37
Length, mm 80
Thickness, mm 1.5
Drawings
