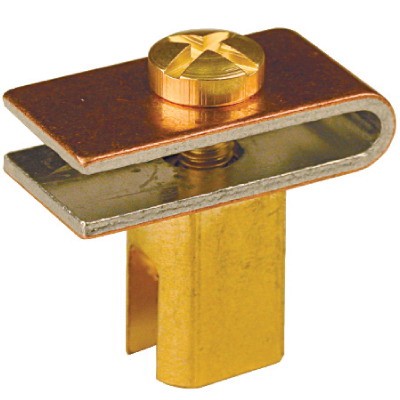

Heavy duty ground connector

Code: FC37303
Heavy duty ground connector
Heavy duty ground connector
Suitable for Round conductor
Surface protection Galvanic/electrolytic zinc plated
Material Brass
Clamping range round conductor, mm Other
Clamp width flat conductor Up to 40 mm
Connection cross section, mm² 0.8…78.5
Height, mm 38
Width, mm 17
Length, mm 38

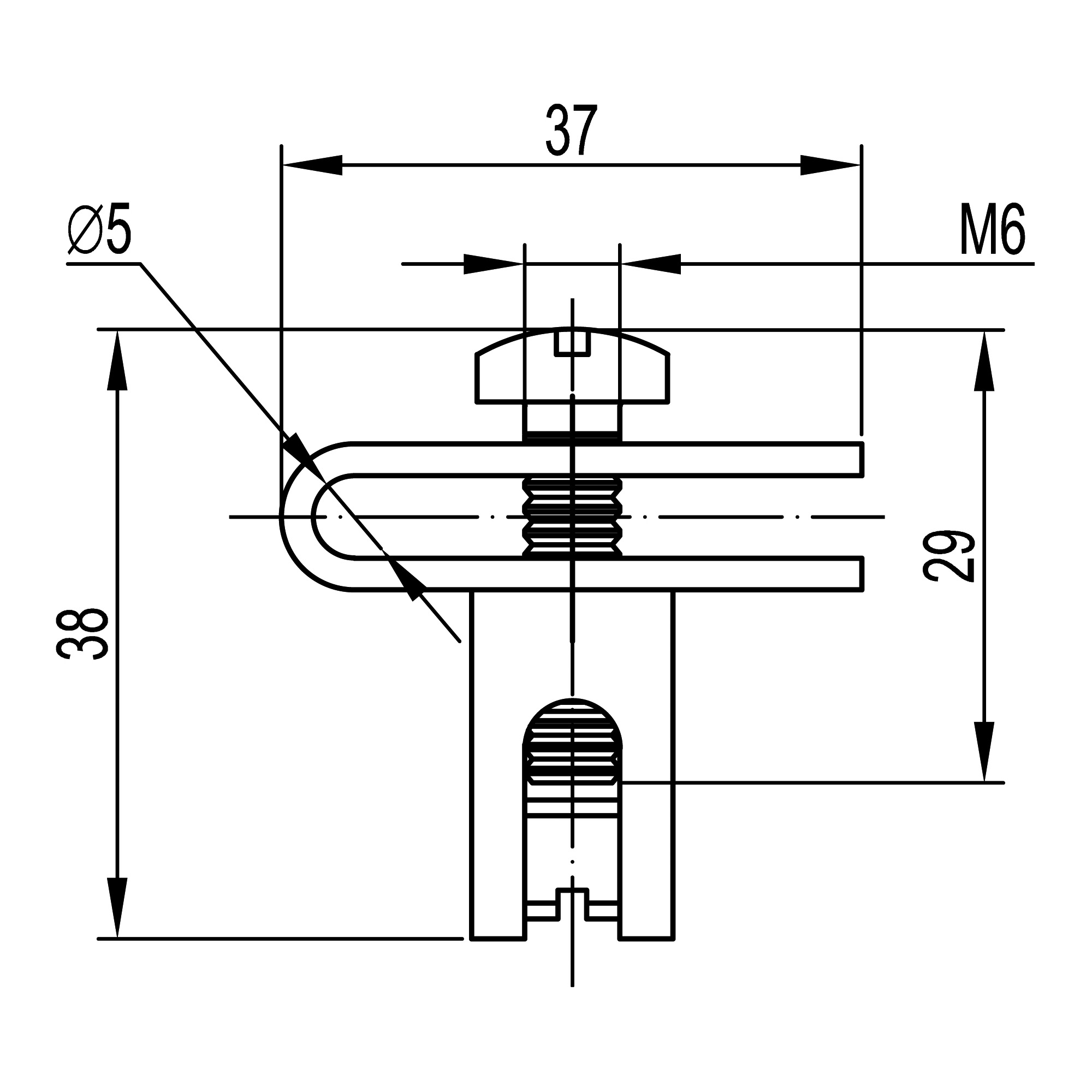

Drawings
