Ground connector

Code: FC37302

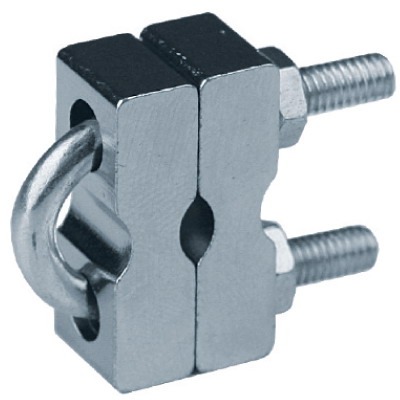

Ground connector
Ground connector

Ground connector

Code: FC37302
Suitable for Round conductor
Surface protection Galvanic/electrolytic zinc plated
Material Brass
Clamping range round conductor, mm Other
Clamp width flat conductor Up to 40 mm
Connection cross section, mm² 7…78.5
Product type additional components
Type of accessories additional components

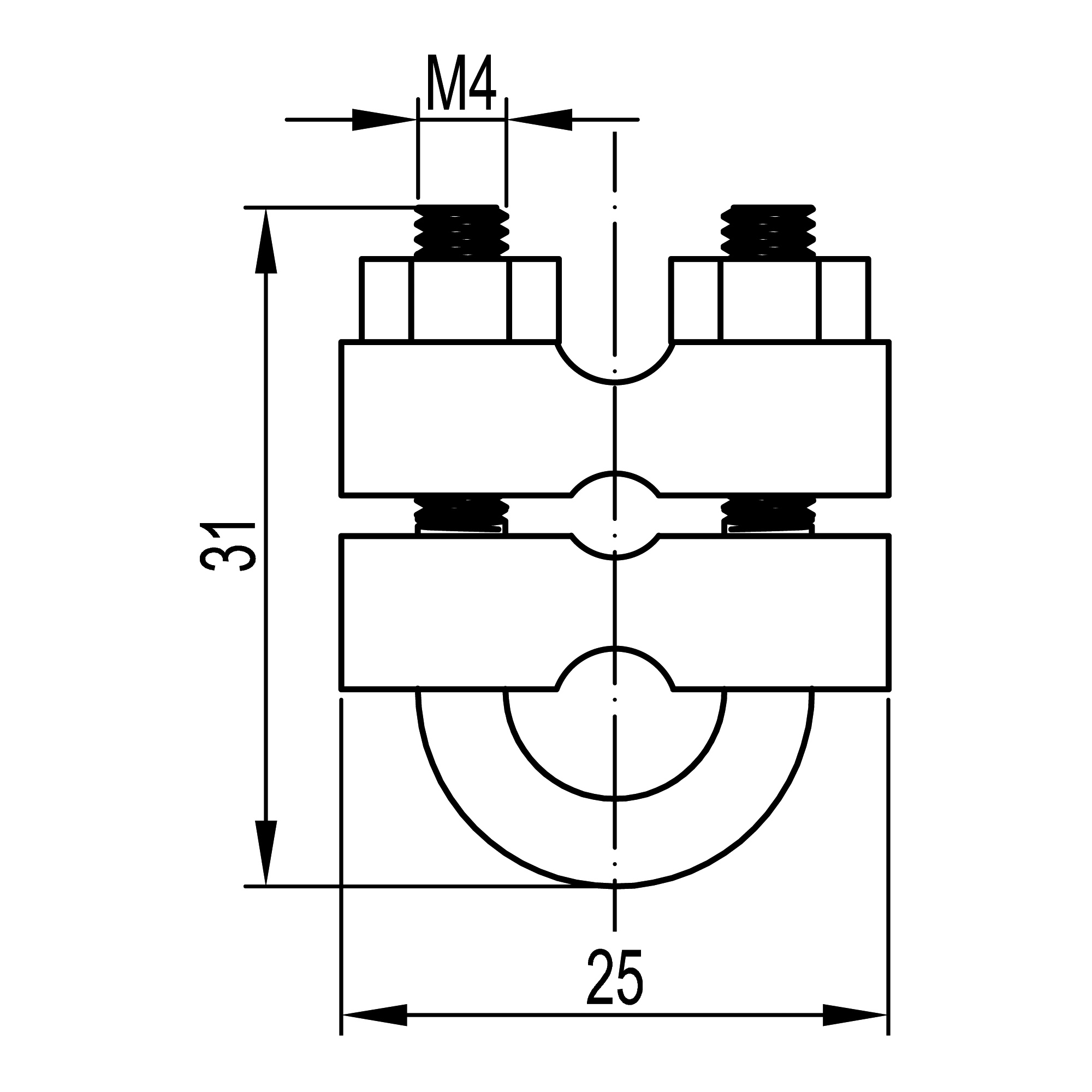

Drawings
