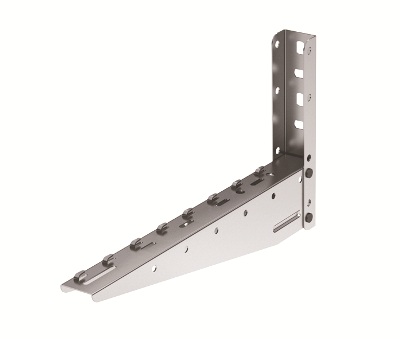

Bracket with rivets for mesh trays ML 400 mm
Code: FC33833
Bracket with rivets for mesh trays ML 400 mm
Code: FC33833
| Colour | Light grey |
| Width, mm | 51 |
| Model | Wall bracket |
| Height, mm | 250 |
| Surface protection | Galvanic/electrolytic zinc plated |
| Length, mm | 400 |
| Material | Steel |
| Load bearing capacity, kN | 1862 |
| Stainless steel, pickled | Yes |
| Suitable for circuit integrity | Yes |
| Material quality | Steel galvanised |
| Product type | Brackets |
| For trays width (max.) | 400 mm |
| Material | Pre-galvanized |
| Thickness | 1.5 mm |

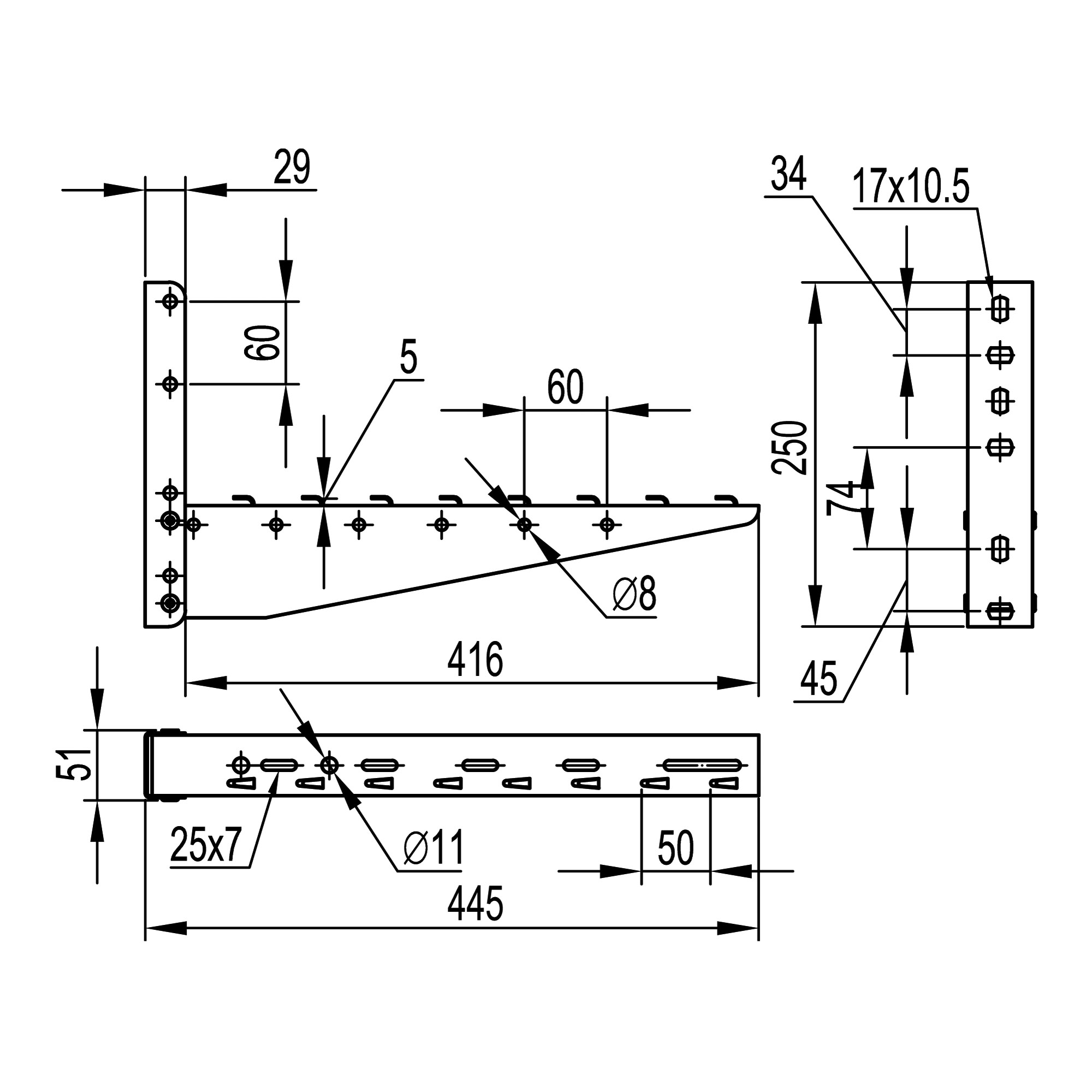

Drawings
| Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit |
|---|---|---|---|---|
|
Metal wire mesh trays - "F5 Combitech"
|
|
|
||
|
Metal wire mesh trays - "F5 Combitech"
|
|
|
||
|
Metal wire mesh trays - "F5 Combitech"
|
|
|
Certificates
| Name | Document |
|---|---|
