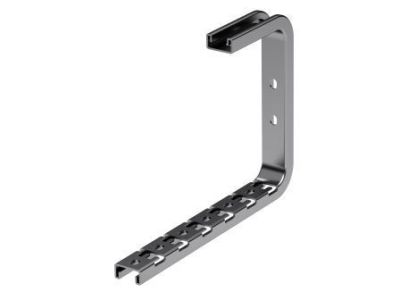

Light bracket for mesh trays 200 mm thickness 2,5 mm

Code: FBA3010
Light bracket for mesh trays 200 mm thickness 2,5 mm
Light bracket for mesh trays 200 mm thickness 2,5 mm
  • To ask a question
Colour Light grey
Width, mm 41
Model Wall- and profile console
Height, mm 250
Surface protection Galvanic/electrolytic zinc plated
Material quality Other
Length, mm 100
Material Steel
Load bearing capacity, kN 980
Angle, ° 90
Stainless steel, pickled No
Suitable for circuit integrity No
Suitable for cable management system width, mm 100
Product type Brackets
For trays width (max.) 100 mm
Material Electrolytic galvanized steel

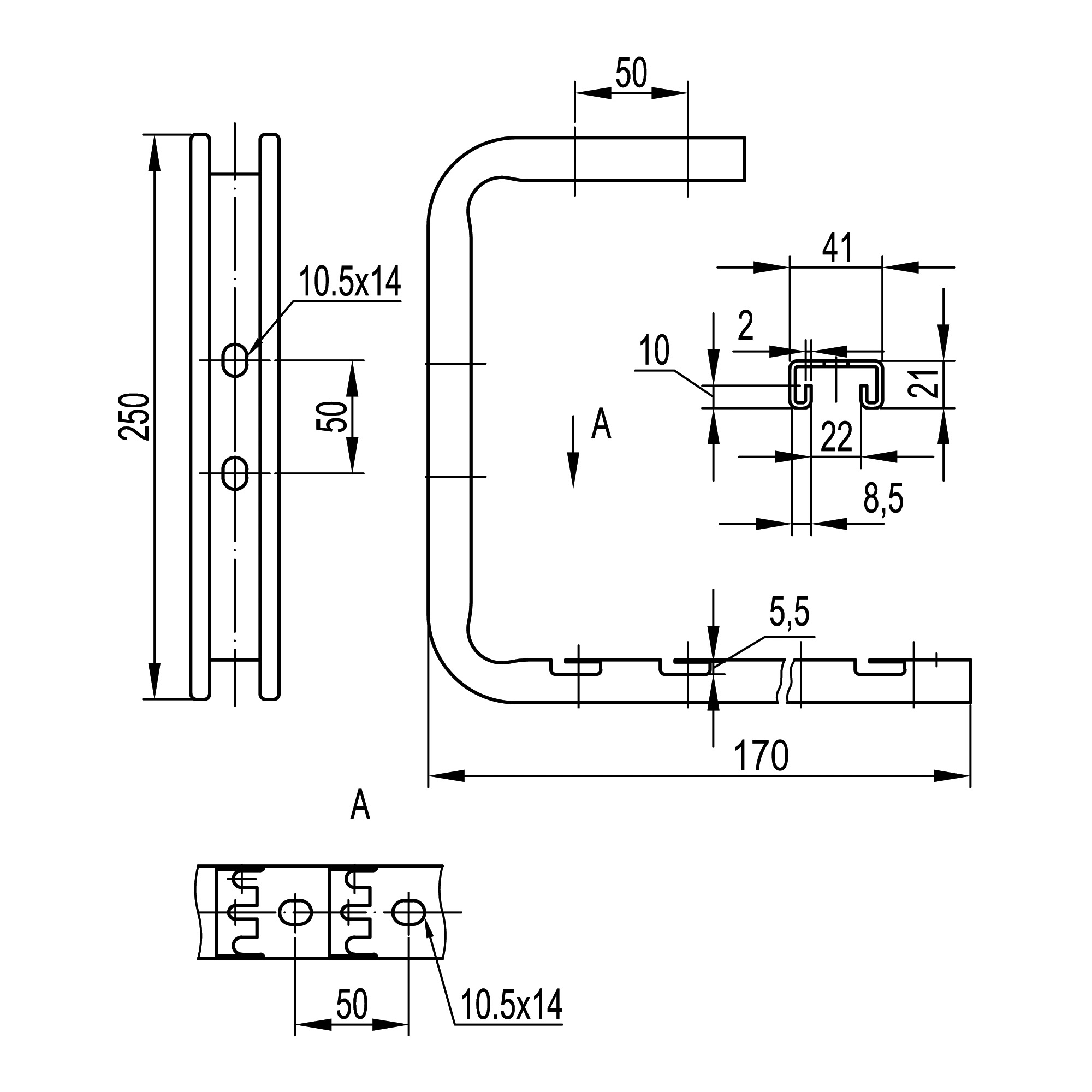

Drawings
Seria Name DWG (dynamic.) Intergraph Autodesk Revit
Metal wire mesh trays - "F5 Combitech"
System metal wire trays "F5 Combitech"
ZIP
16.42 Mb
Metal wire mesh trays - "F5 Combitech"
System metal wire trays "F5 Combitech"
RAR
5.28 Mb
Metal wire mesh trays - "F5 Combitech"
System metal wire trays "F5 Combitech"
ZIP
11.67 Mb
