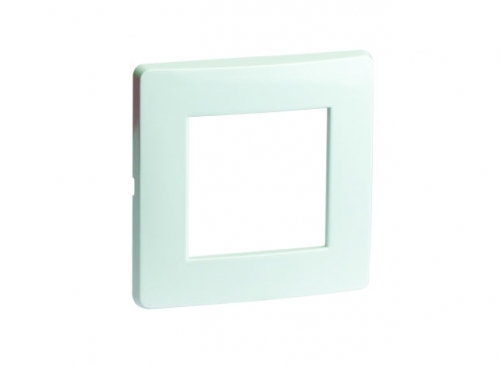

1-socket frame, 2 mod., white, RAL9016

Code: 75010W

1-socket frame, 2 mod., white, RAL9016

Code: 75010W
Colour White

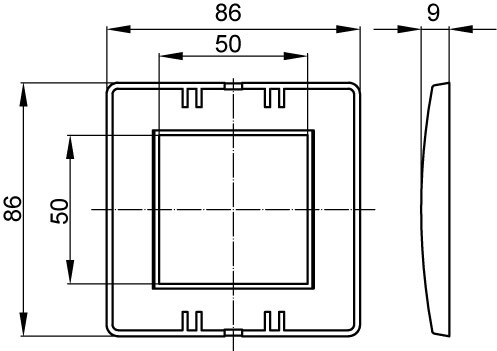

Width, mm 86
Halogen free Yes
Height, mm 86
Depth, mm 20
Number of units 1
With hinged lid Yes
Surface protection Decor
Built-in height, mm 50
Built-in width, mm 50
Label space/information surface Yes
Material Plastic
Type of fastening Clamp mounting
Mounting direction Horizontal and vertical
Degree of protection (IP) IP20
Suitable for floor box Yes
Transparent Yes
Surface finishing Glossy
Suitable for wall duct Yes
Suitable for flush-mounted installation Yes
Suitable for built-in installation Yes
Number of units horizontal 1
Number of units vertical 1
Number of modules 2
Decoration Декор по эскизу
Without bridge Yes
Material ABC-plastic
Length, mm 86
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 86
Ingress Protection rating, IP IP40
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL4
Depth, mm 9
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Color White
Type of installation Concealed installation
Product type Frame
Number of modules 2
