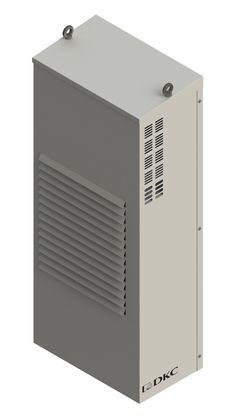

Outdoor wall-mounted conditioner 6000 W, 400 V, 3 ph, 1400x550x397 mm
Code:
R5KLM60043LO
Code:
R5KLM60043LO
| Width, mm | 550 |
| Model | Air/air |
| Height, mm | 1400 |
| Depth, mm | 397 |
| Voltage type | AC |
| With heating function | No |
| With temperature control | Yes |
| Function master/slave | Yes |
| Ambient temperature during operating, °C | -40...55 |
| Total cooling capacity according to EN 14511 at 35/35 °C, W | 6000 |
| Speed-regulated | No |
| Operating voltage at AC 50 Hz, V | 400...400 |
| Operating voltage at AC 60 Hz, V | 400...400 |
| Product type | Air conditioner |
| Class of cooling output, W | 6000 |
| Rated operating voltage V, ~, Hz | 400 V, 3 p, 50/60 Hz |
| Version of cooler | Outdoor |
| Mounting type | Wall-mounted |
| External dimensions of cooler (W x H x D), mm | 550 x 1400 x 397 |
| Temperature regulating range, ˚C | +25…+40 |
| Operating temperature range, ˚C | -40…+55 |
| Material | Steel sheet |
| Degree of protection, internal circuit | IP55 |
| Degree of protection, external circuit | IP34 |
| Weight, kg | 105 |
| Refrigeration power DIN 3168 (L35/L35), W | 5600/5880 |
| Refrigeration power DIN 3168 (L35/L50), W | 4210/4420 |
| Rated power consumption (L35/L35), kW | 2,24 |
| Rated current, A | 4,5 |
| Protective device, A | 8 |
| Start-up current, A | 25 |
| Noise level, dB(A) | 75 |
| Coolant type | R134a |
