Model Reverser
Rated operation power at AC-3, 400 V, kW 7.5
Rated permanent current Iu, A 12
Number of poles 3
With 0 (off) position Yes
Type of electrical connection of main circuit Screw connection
Suitable for floor mounting No
Suitable for front mounting Yes
Suitable for distribution board installation Yes
Suitable for intermediate mounting Yes
Complete device in housing No
Type of control element Long turning handle
Degree of protection (IP), front side IP65
With retraction in 0-position Yes
Product type Switch/closet door switch
Rated operation current Ie at AC-3, 400 V, A 4

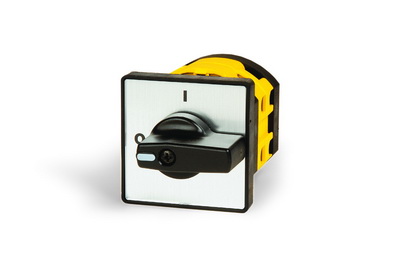

Product type Cam switches with handle
Drawings
Seria Name DWG
