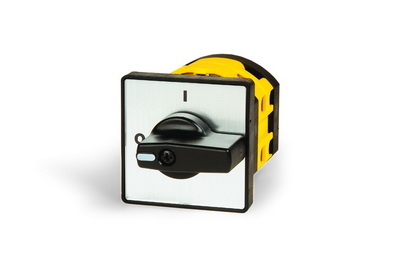

Model Reverser
Rated operation power at AC-3, 400 V, kW 7.5
Rated permanent current Iu, A 12
Number of poles 4
With 0 (off) position Yes
Connection type main current circuit Screw connection
Suitable for ground mounting No
Suitable for front mounting 4-hole Yes
Suitable for distribution board installation Yes
Suitable for intermediate mounting Yes
Complete device in housing No
Type of control element Long turning handle
Degree of protection (IP), front side IP65
With retraction in 0-position Yes
Product type Switch/closet door switch
Rated operation current Ie at AC-3, 400 V 4
Seria Name DWG
Quadro - buttons and switches
