No name

Code: AS1201R-1001-1

To ask a question

ETIM

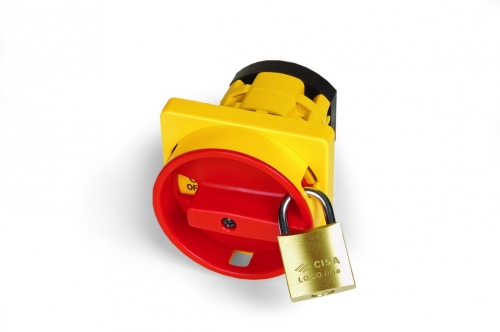

Model	On/Off switch
Rated operation power at AC-3, 400 V, kW	5.5
Rated permanent current Iu, A	12
Number of poles	1
With 0 (off) position	Yes

Connection type main current circuit	Screw connection
Suitable for ground mounting	No
Suitable for front mounting 4-hole	Yes
Suitable for distribution board installation	Yes
Complete device in housing	No

Drawings

Seria	Name	DWG
Quadro - buttons and switches	Quadro - buttons and switches	ZIP 611.26 kB

Certificates

Name	Document
Quadro_Connection Devices - Exemption letter for a сertificate of conformity to GOST R	PDF 6.07 MB
Quadro_Connection Devices - Certificate of conformity to GOST R for disconnector, series AM32	PDF 1.30 MB
Quadro_Connection Devices - Certificate of conformity to GOST R for cam switches	PDF 1.58 MB
Quadro_Connection Devices - Exemption letter for thermoplastic enclosure for cam switches and buttons	PDF 3.67 MB
