| Outer diameter, mm | 18 |
| Shape | Outer - and inner side plain |
| Inner radius, mm | 50 |
| Bend angle, ° | 90 |
| Colour | Natural colour |
| Model | Rigid |
| Surface protection | Hot-dip galvanized |
| Material quality | Steel |
| Material | Metal |
| Inner diameter, mm | 18 |

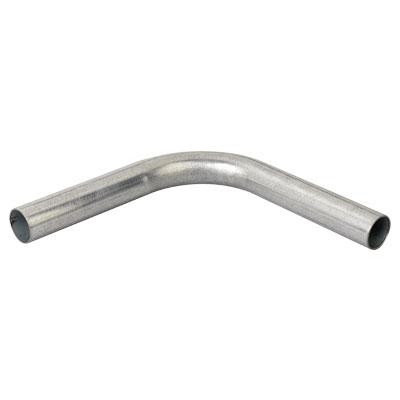

| Product type | 90° conduit-conduit bend |
| Material | Galvanized steel |
| -5°С ... +60°С | -60 ... +150 °С |
| Ingress Protection rating, IP | IP67 |
| от -25°С до +60°С | from -60 to +150 °С |
| Shock resistance, J | > 20 J at -25 °С |
| Climate version | U2, HL2, UHL2 |
| Fire protection | non-combustible material |
| ТУ 2248-012-47022248-2009 | Technical specifications 4833-041-47022248-2016 |
| 3 года | 3 years |
| 15 лет | 3 years |
