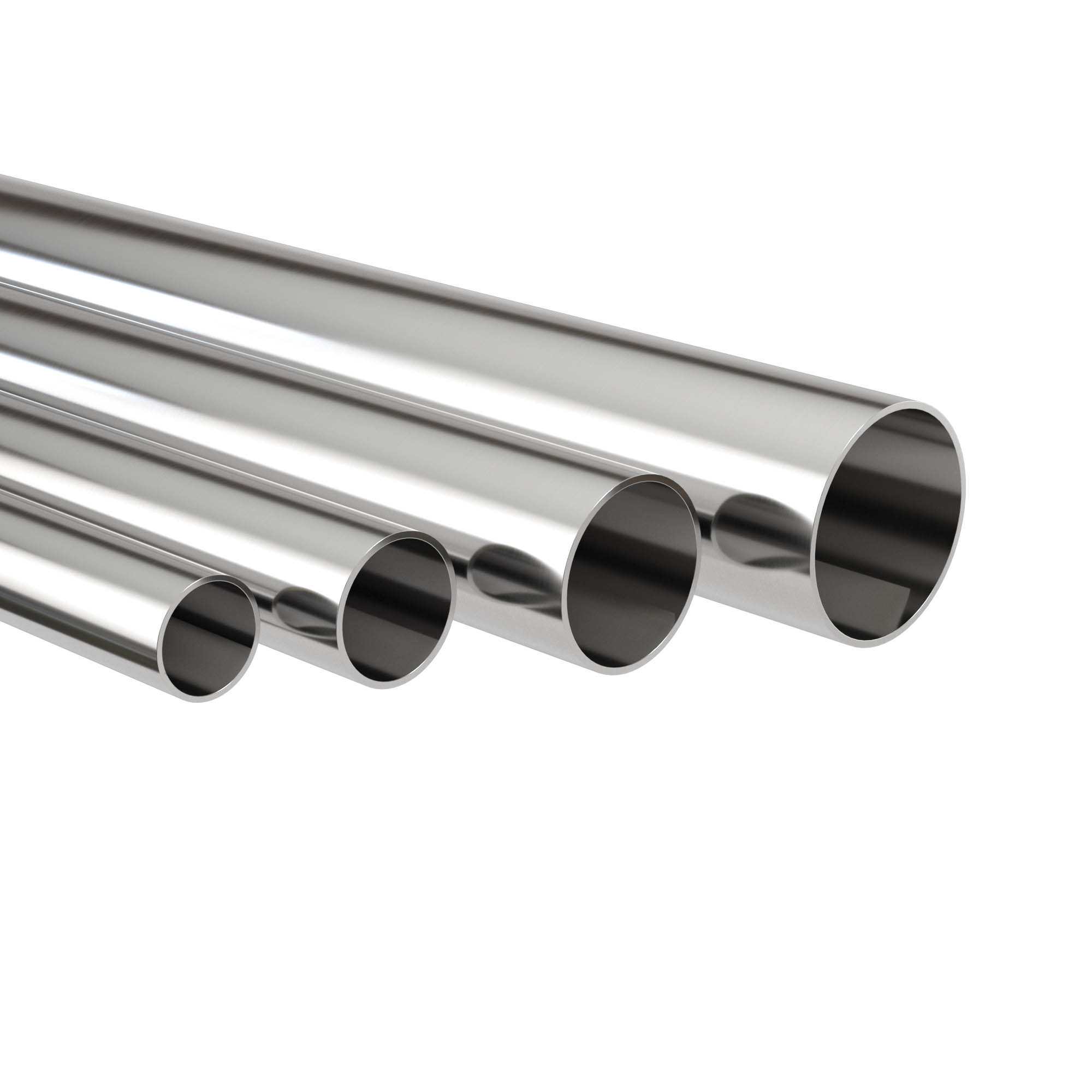

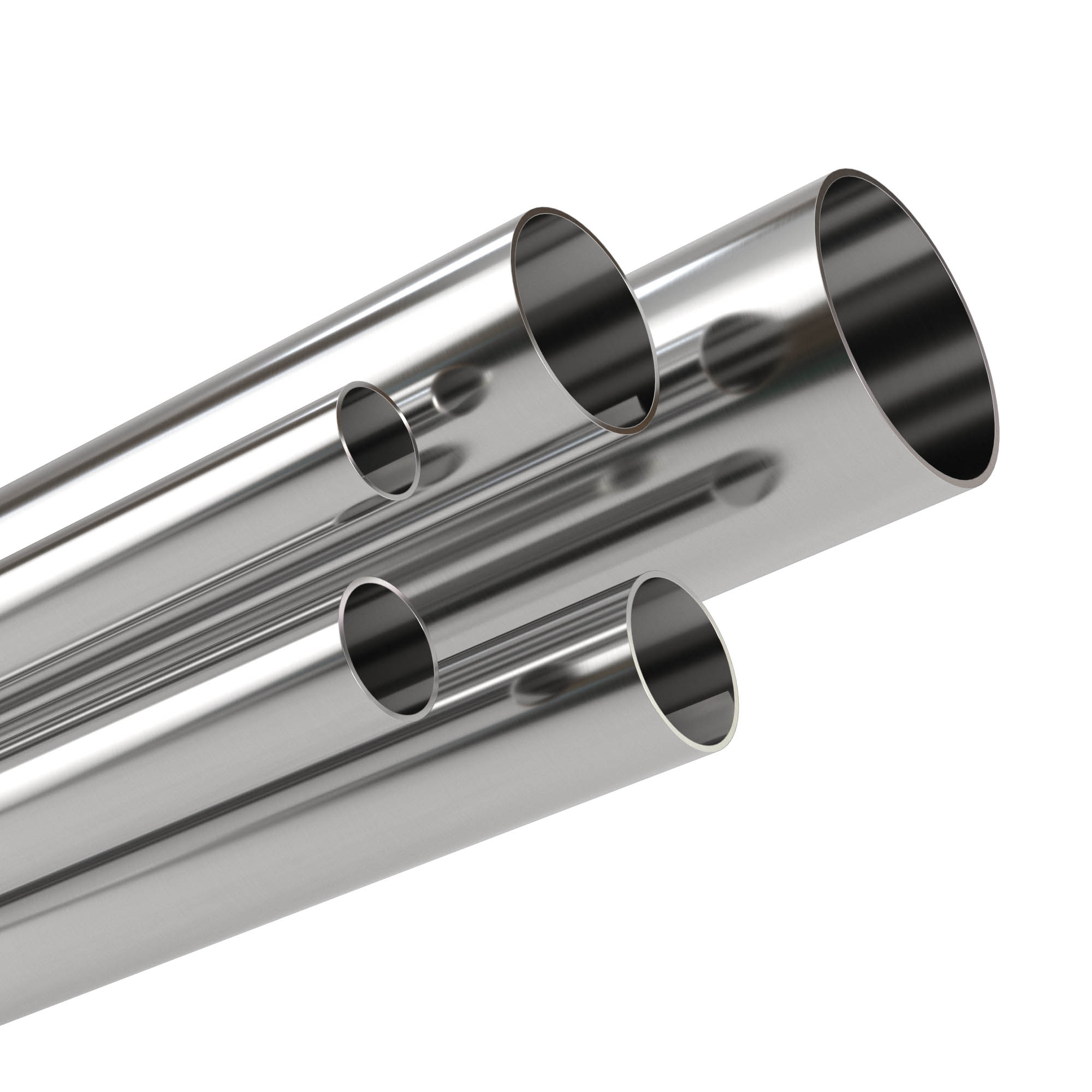

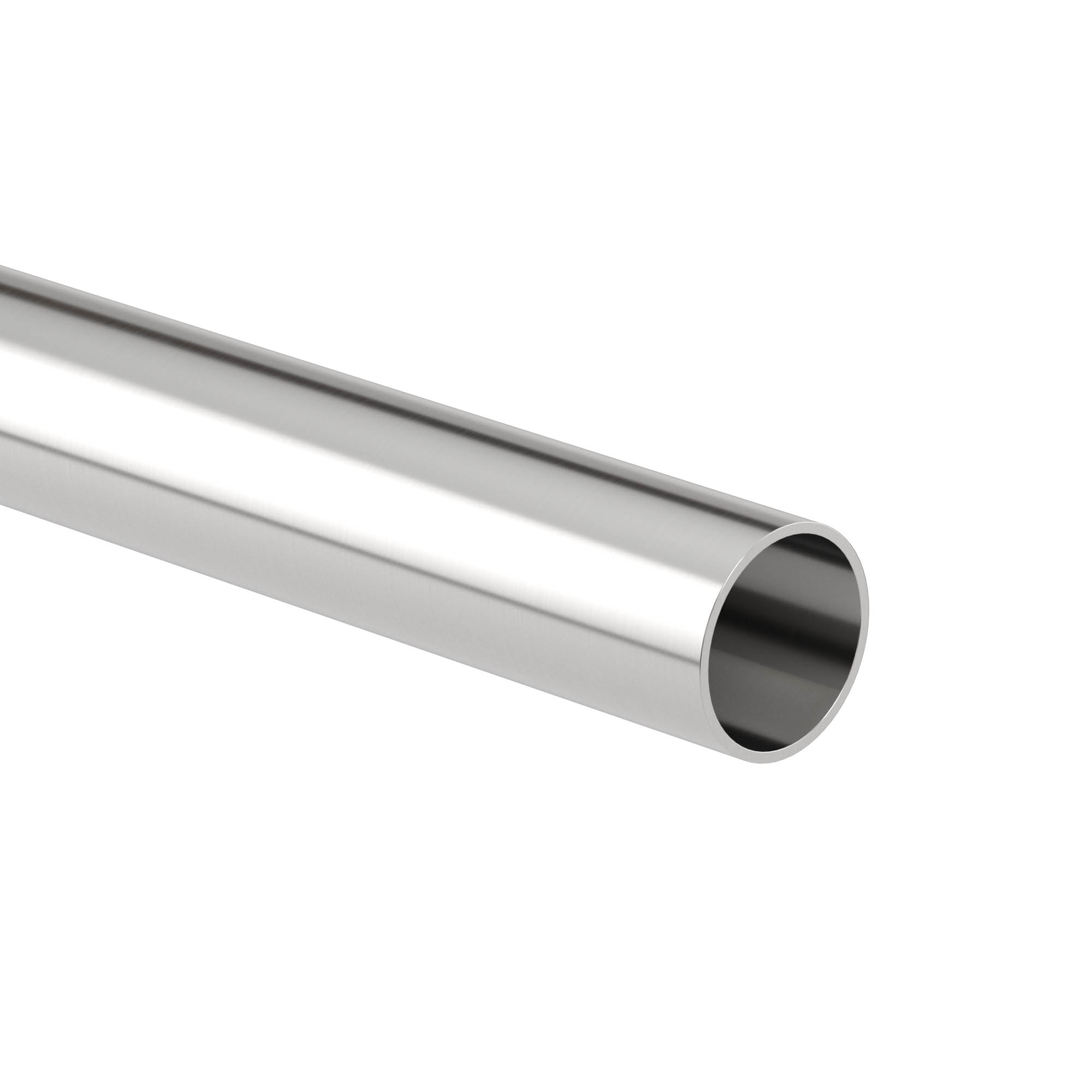

Rigid stainless steel conduit AISI 316L ø50x1,2x3000 mm
Code:
6700A-50L3R
Code:
6700A-50L3R
| Model | Rigid non-threaded |
| Outer diameter, mm | 50 |
| Inner diameter, mm | 47.6 |
| Material | Stainless steel |
| Surface mounted | Yes |
| Suitable for subsurface installation (screed) | Yes |
| Outdoor installation | Yes |
| Suitable for hollow wall installation | Yes |
| Installation on wood | Yes |
| Product type | Rigid stainless steel pipe AISI 304 |
| Material | Stainless steel AISI 304 |
| Length | 4m |
| Thickness | 1,2mm |
| -5°С ... +60°С | -45 ... +150 °С |
| Degree of protection | IP66/IP67 |
| от -25°С до +60°С | -60 … +150 °С |
| Impact strength | >20 J at -25 °С |
| Climate version | U1, HL1, UHL1, UHL5, OM1,T |
| Fire protection | non-combustible material |
| ТУ 2248-012-47022248-2009 | Technical specifications 4833-041-47022248-2014 |
| 3 года | 3 years |
| 15 лет | 3 years |
