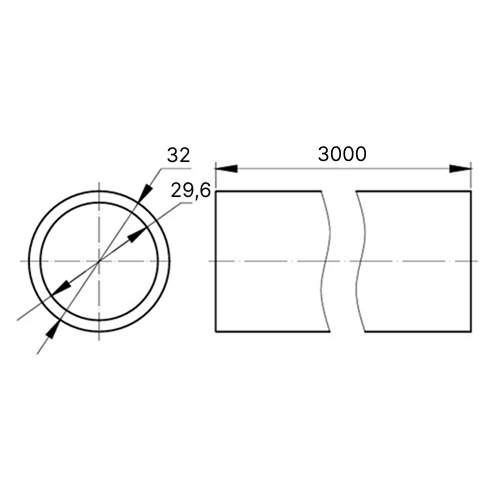

Rigid galvanized steel conduit ø32x1,2x3000 mm

Code: 6008-32L3
Model Rigid non-threaded
Outer diameter, mm 32
Inner diameter, mm 29.6
Material Steel
Operating temperature, °C -60...150
Surface mounted Yes
Suitable for subsurface installation (screed)) Yes
Outdoor installation Yes
Type Rigid steel conduits
Material PVC
Length, mm 3000
Thickness, mm 1,2
Temperature of mounting, °C -60 ... +150 °С
Ingress Protection rating, IP IP66/IP67
Temperature of operation, °C from -60 to +150 °С
Shock resistance, J > 20 J at -25 °С
Climate version U2, HL2, UHL2
Fire protection non-combustible material
Accessories
Seal gasket IP67 for M32
Code: 6060-3238
Sleeve junction М32х1,5
Code: 6003-32A
