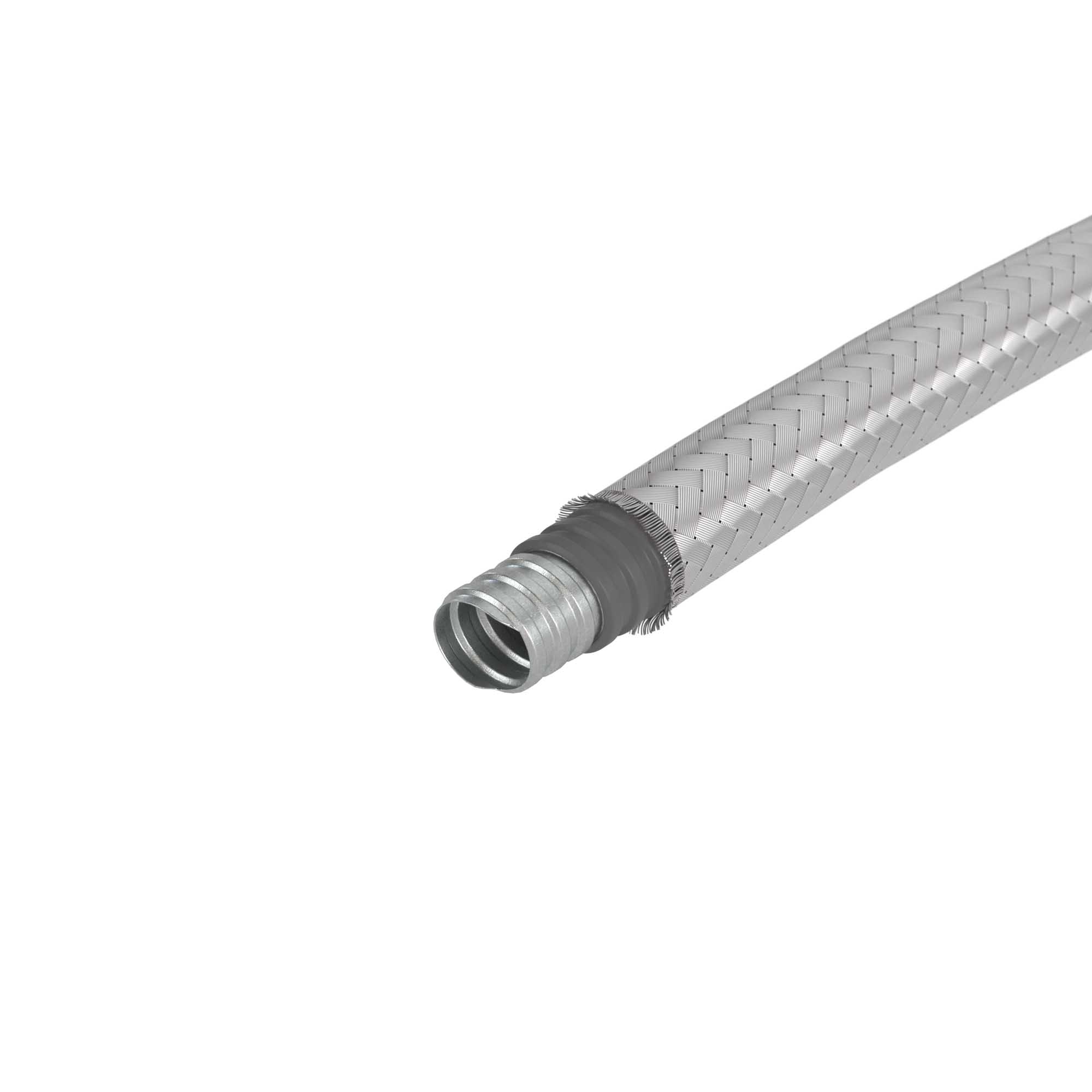

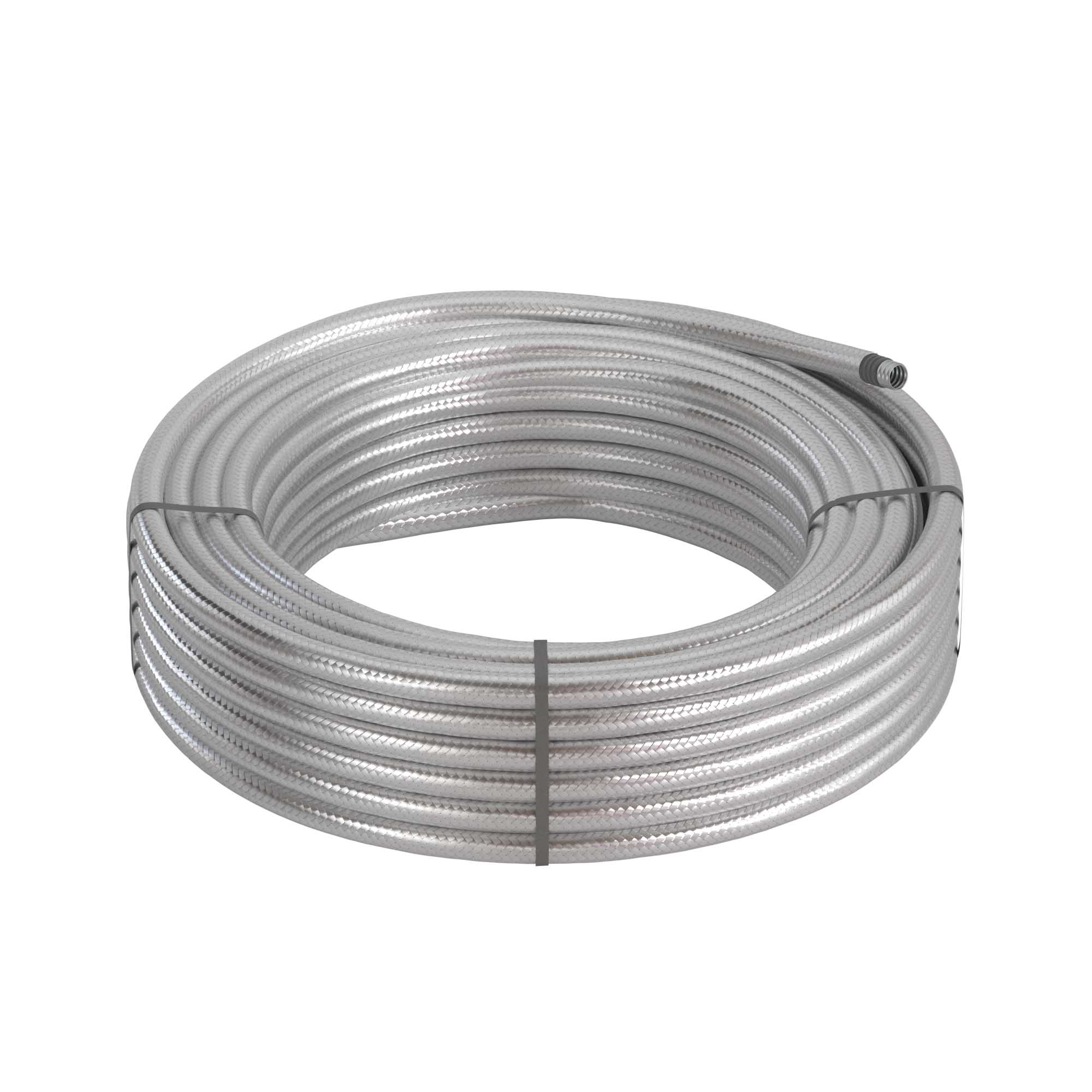

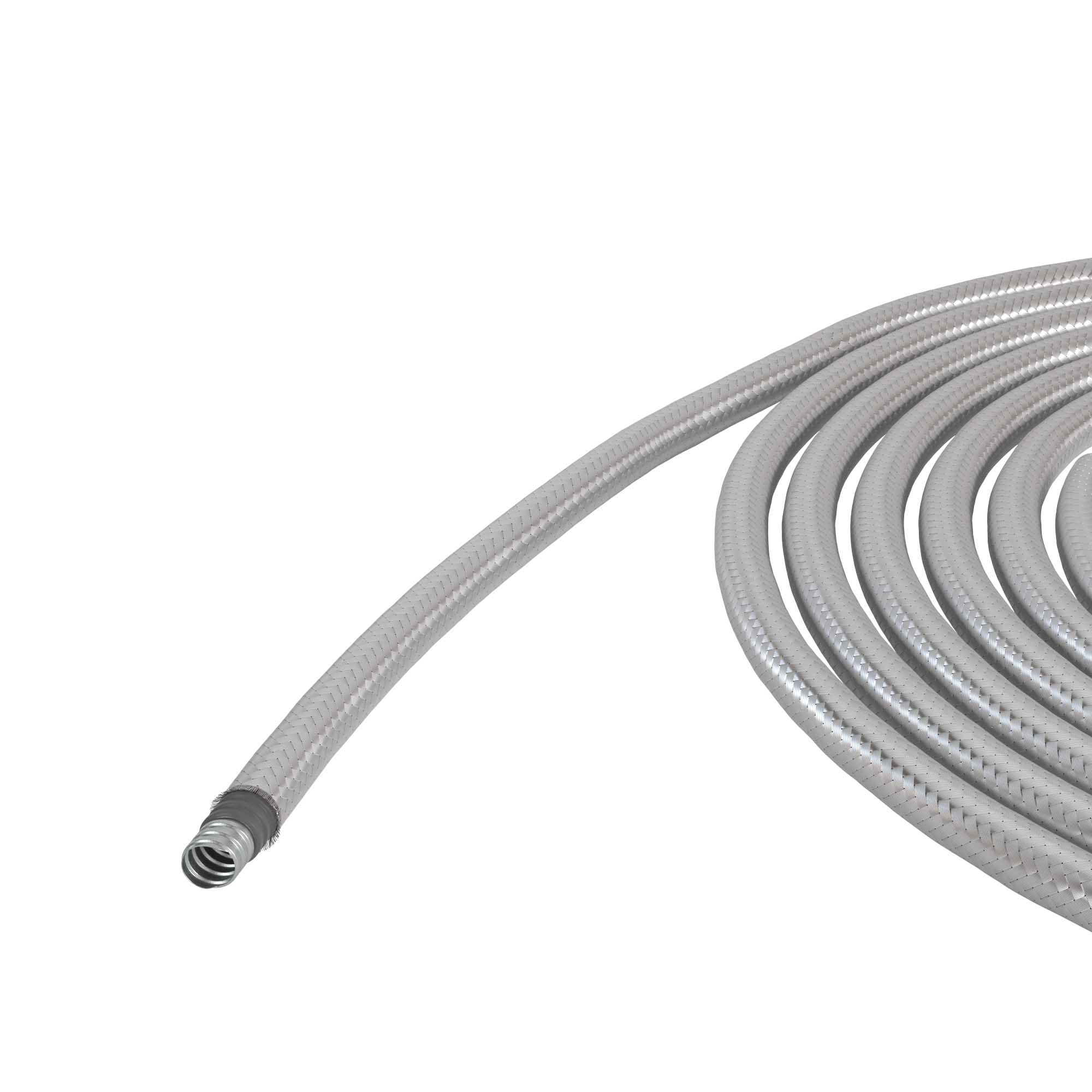

Flexible metal conduit in PVC coating DN 15 mm with galvanised steel braid, ?in 15,5 mm, ?ex 19,5 mm, 50m
Code: 6071TX-016
Flexible metal conduit in PVC coating DN 15 mm with galvanised steel braid, ?in 15,5 mm, ?ex 19,5 mm, 50m
Code: 6071TX-016
Colour | Grey |
Outer diameter, mm | 19.5 |
Inner diameter, mm | 15.5 |
Compressive strength, N | 1250 |
Operational temperature, °C | -45...70 |
Flame accelerating | No |
Sealing | No sealing |
Suited for EX-applications | No |
Material | Steel |
Tensile strength, N | 500 |
Sheathing material 1st coating | Polyvinyl chloride (PVC) |
Sheathing material 2nd coating (exterior) | Stainless steel wire |
Nominal diameter, mm | 15 |
Degree of protection (IP) | IP66 |
Bending strength | Flexible |
