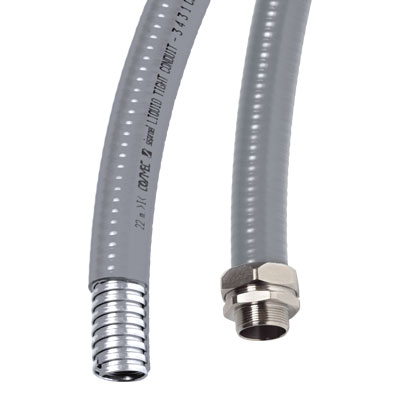

Simple interlocking flexible conduit in smooth PVC DN 12 mm, øin 12,0 mm, øex 18,0 mm, IP66, 50m,color grey

Code: 6070-12
Simple interlocking flexible conduit in smooth PVC DN 12 mm, øin 12,0 mm, øex 18,0 mm, IP66, 50m,color grey
Simple interlocking flexible conduit in smooth PVC DN 12 mm, øin 12,0 mm, øex 18,0 mm, IP66, 50m,color grey
Code: 6070-12
Removed from the product range . Proposed replacement: 6070R-12
  • To ask a question
  • Characteristics
  • Accessories
  • Certificates
  • Promo
  • Viewed items
Colour Grey
Outer diameter, mm 18
Inner diameter, mm 12
Compressive strength, N 1250
Operational temperature, °C -15...70
Material Steel
Tensile strength, N 500
Nominal diameter, mm 12
Degree of protection (IP) IP66
Bending strength Flexible
Sheathing material 2nd coating (exterior) Polyvinyl chloride (PVC)
With draw wire No
Product type Metal flexible conduits in smooth PVC coating
Material Galvanized steel
Shell material PVC
Color gray
Length 50 m
-5°С ... +60°С -45 ... +70 °С
от -25°С до +60°С -45 ... +70 °С
Degree of protection IP66
Impact strength >1 J at -45 °С
Fire protection IEC 53313
ТУ 2248-012-47022248-2009 Technical specifications 4833-051-47022248-2016
3 года 3 years
15 лет 3 years
