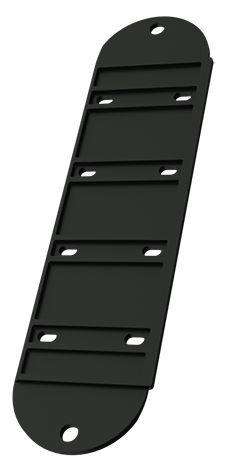

GTA-SN 60 Connector of cable trunking

Code: 02308

GTA-SN 60 Connector of cable trunking

Code: 02308
Colour Black
Surface protection Other
Depth of wall duct, mm 6
Material quality Other
Material Plastic
Symmetric Yes
Width branch/opening, mm 60
Suitable for wall duct width, mm 60
Material Polycarbonate
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 60
Ingress Protection rating, IP IP40
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL4
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Product type Inner duct base connector
