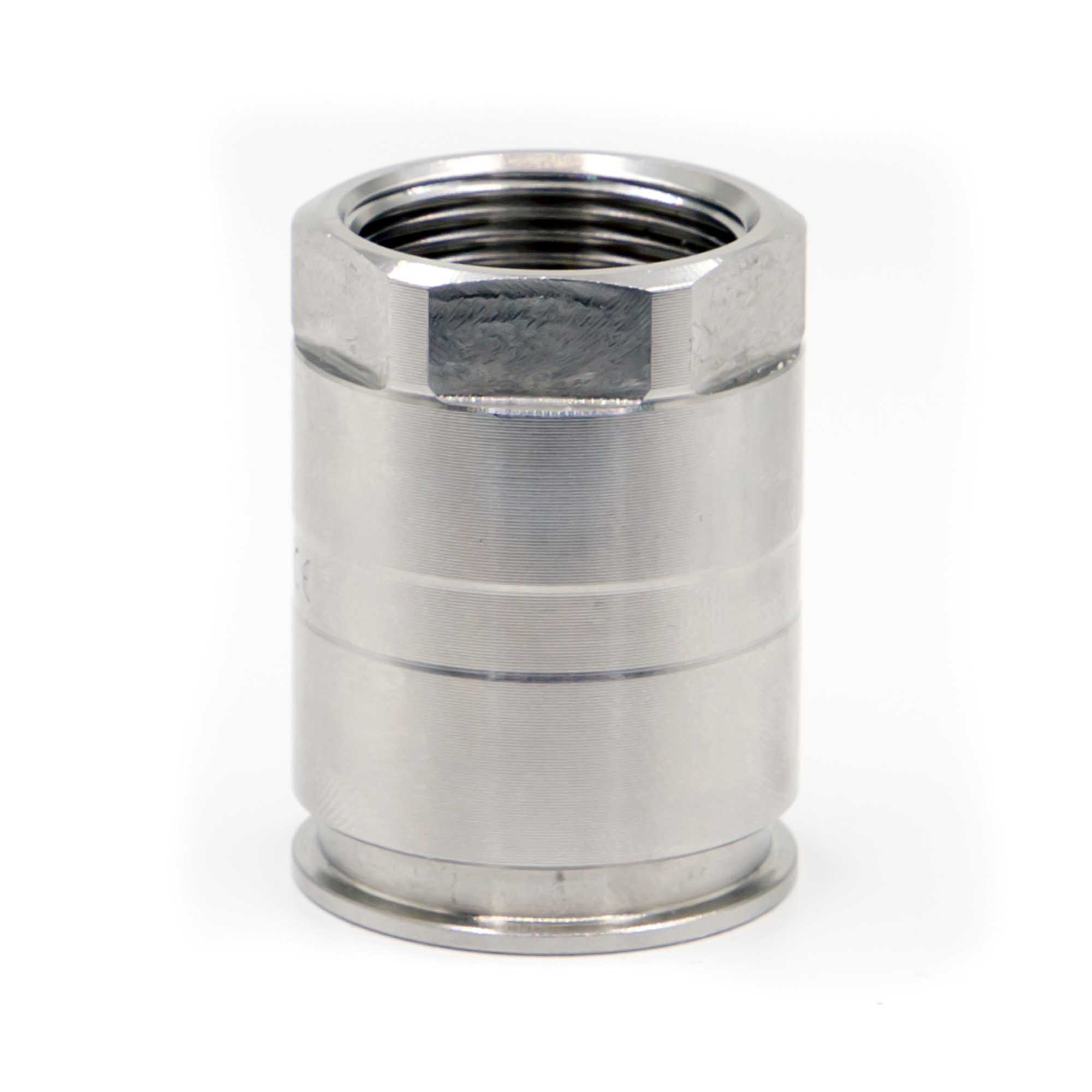

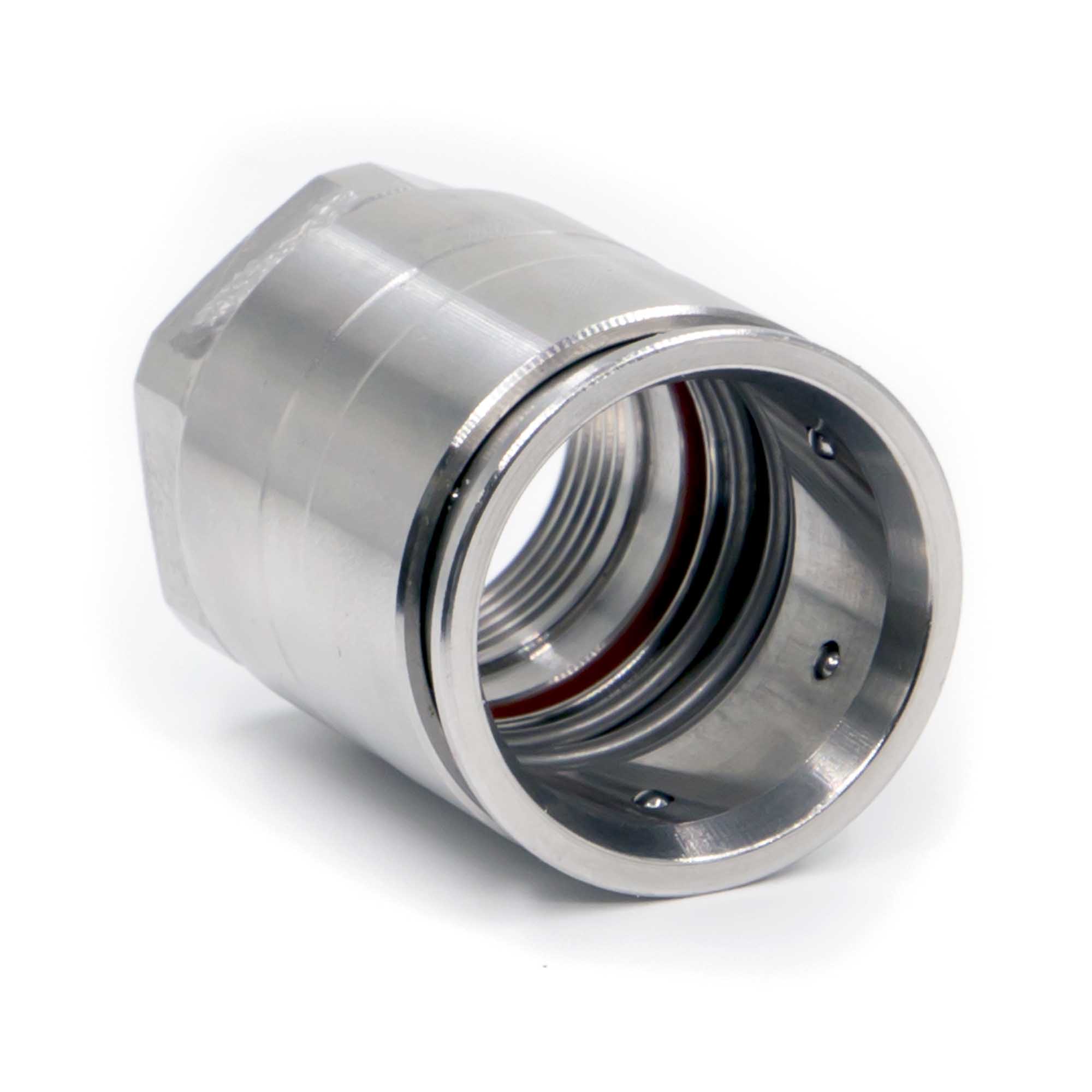

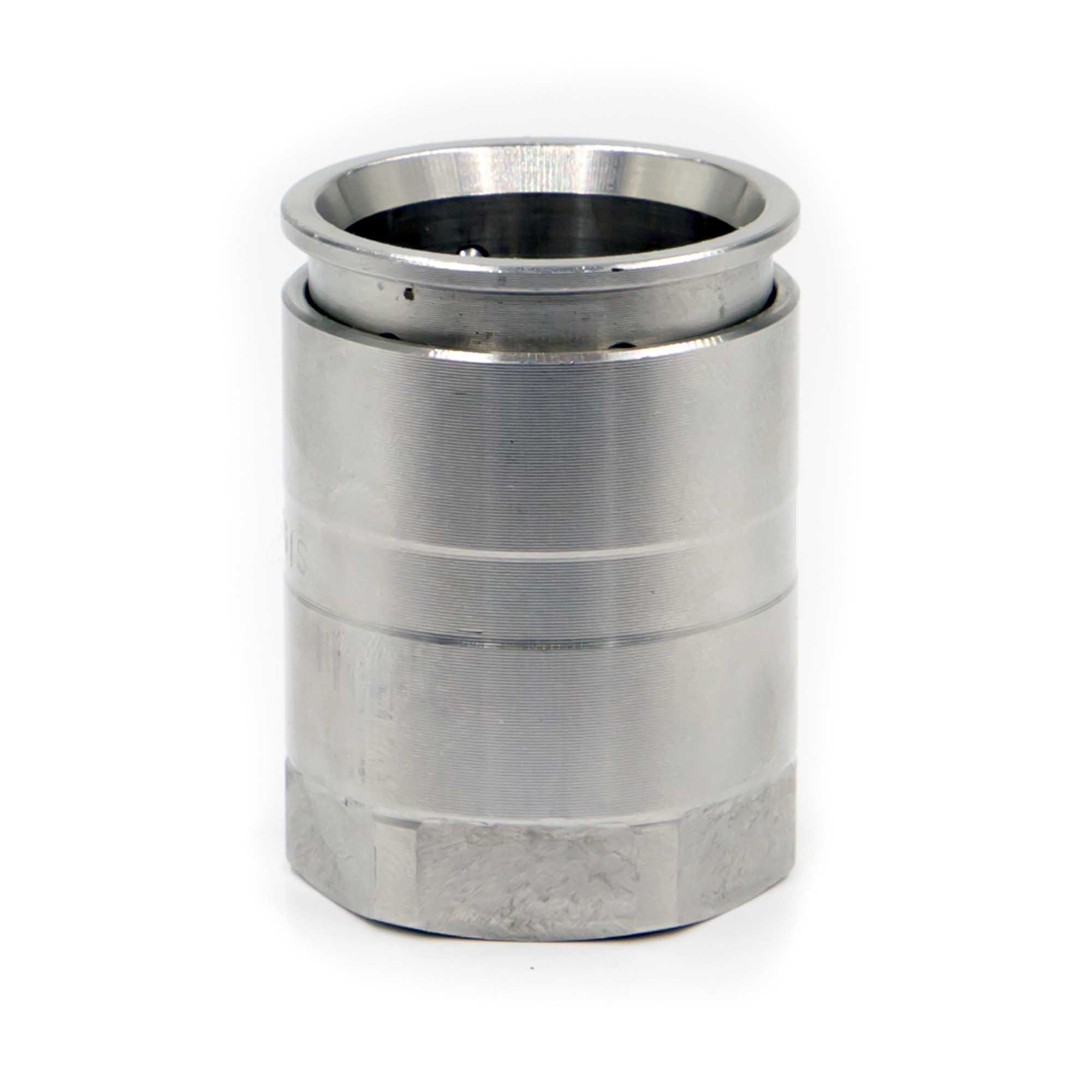

Straight metric female thread connector metal rigid tube - box DN 20mm, М20х1,5, stainless steel AISI 303
Code:
6112-20X
Code:
6112-20X
| Construction type | Internal thread |
| Nominal diameter, mm | 20 |
| Thread connection size | M20 x 1.5 |
| Model | Straight |
| Degree of protection (IP) | IP67 |
| -5°С ... +60°С | -60 ... +150 °C |
| от -25°С до +60°С | -60 ... +150 °C |
| Degree of protection | IP66/67 |
| Russian Classification of Products by Economic Activities (OKPD 2) | 24.20.13.190 |
| Commodity Nomenclature of Foreign Economic Activity | 7307291008 |
