| Model | Rigid non-threaded |

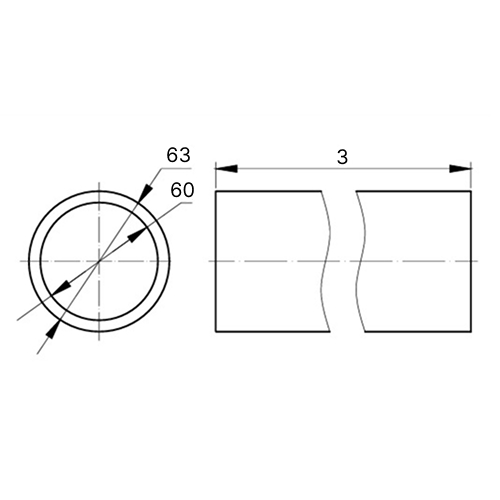

| Outer diameter, mm | 63 |
| Inner diameter, mm | 60 |
| Material | Steel |
| Operating temperature | -60...150 |
| Surface mounted | Да |
| Suitable for subsurface installation (screed) | Да |
| Outdoor installation | Да |

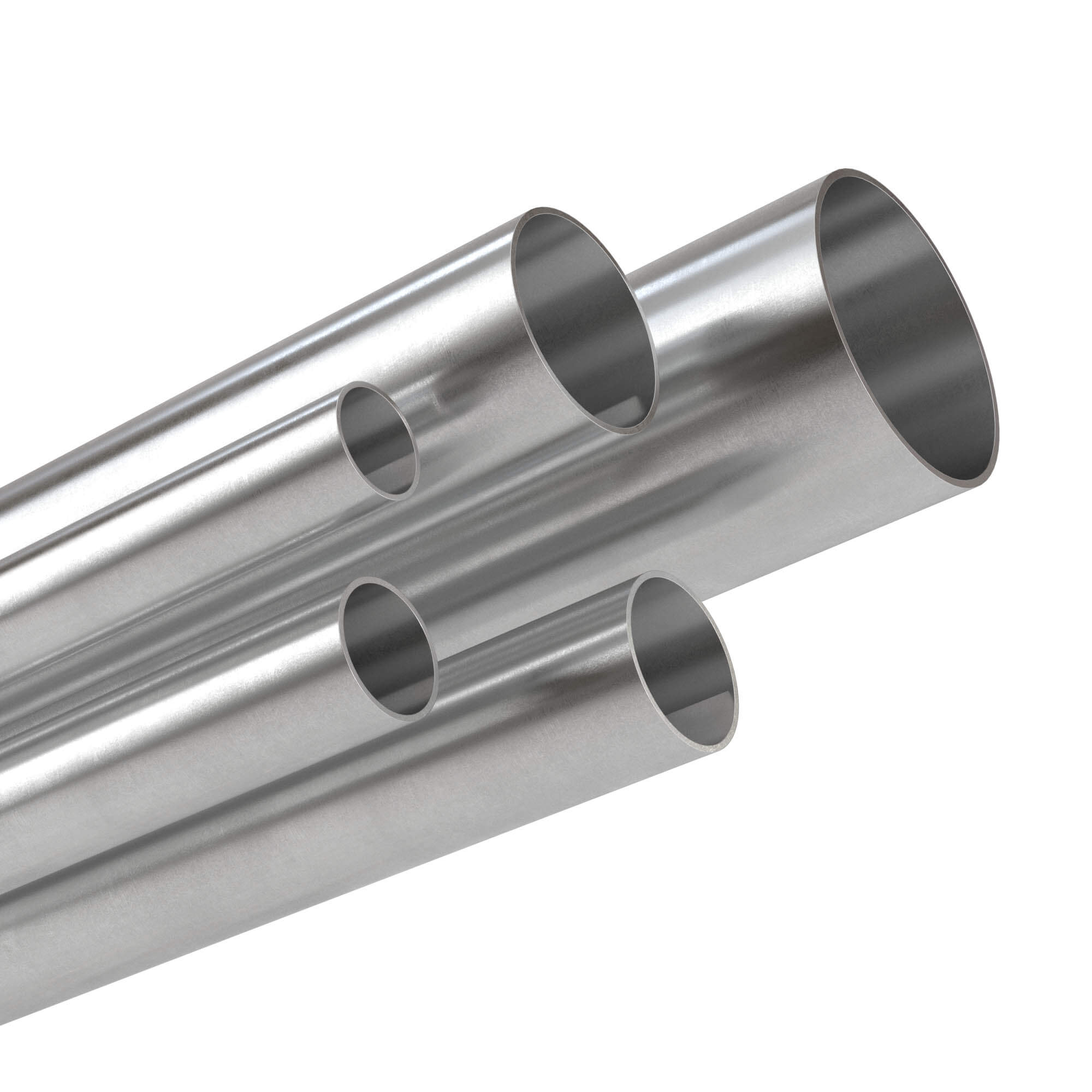

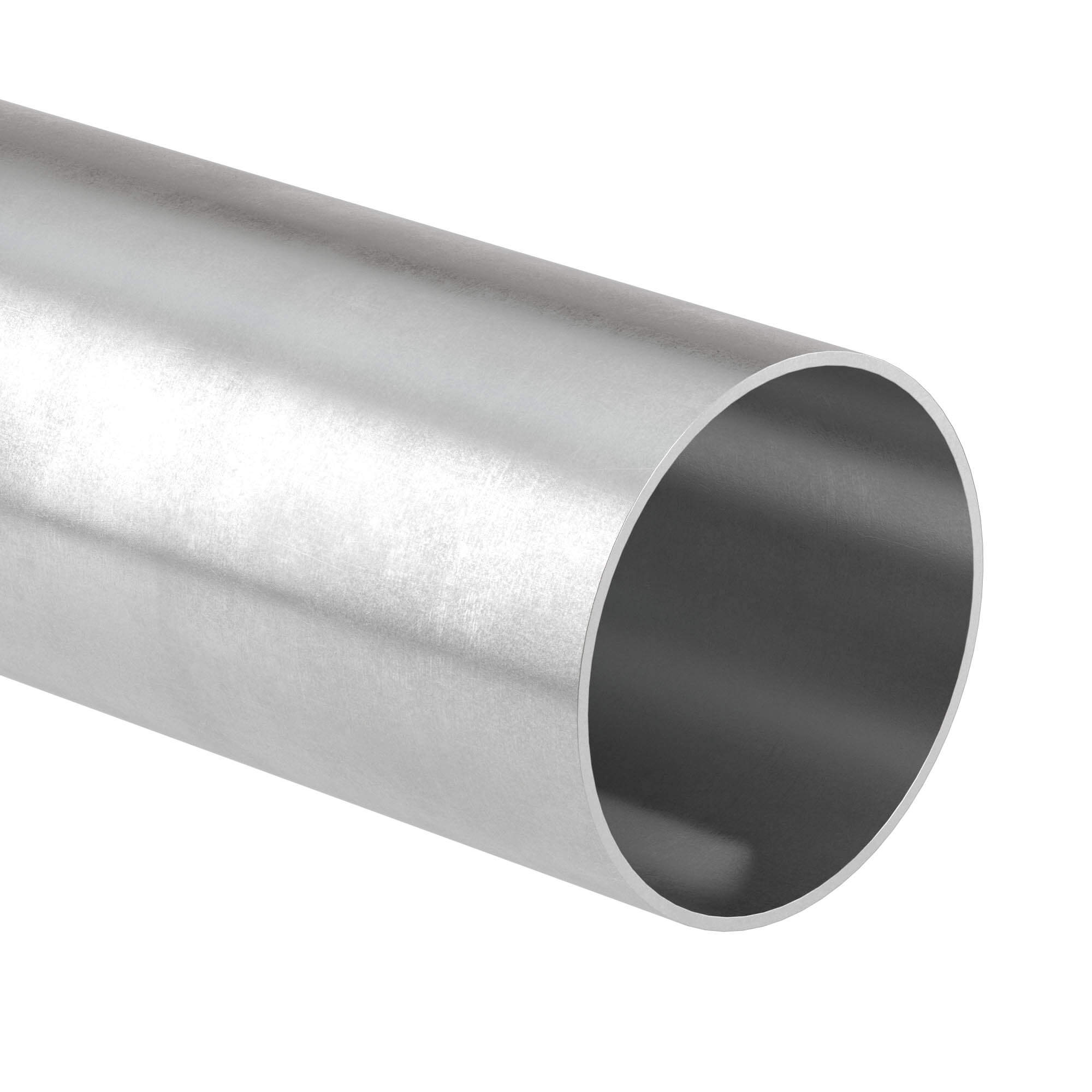

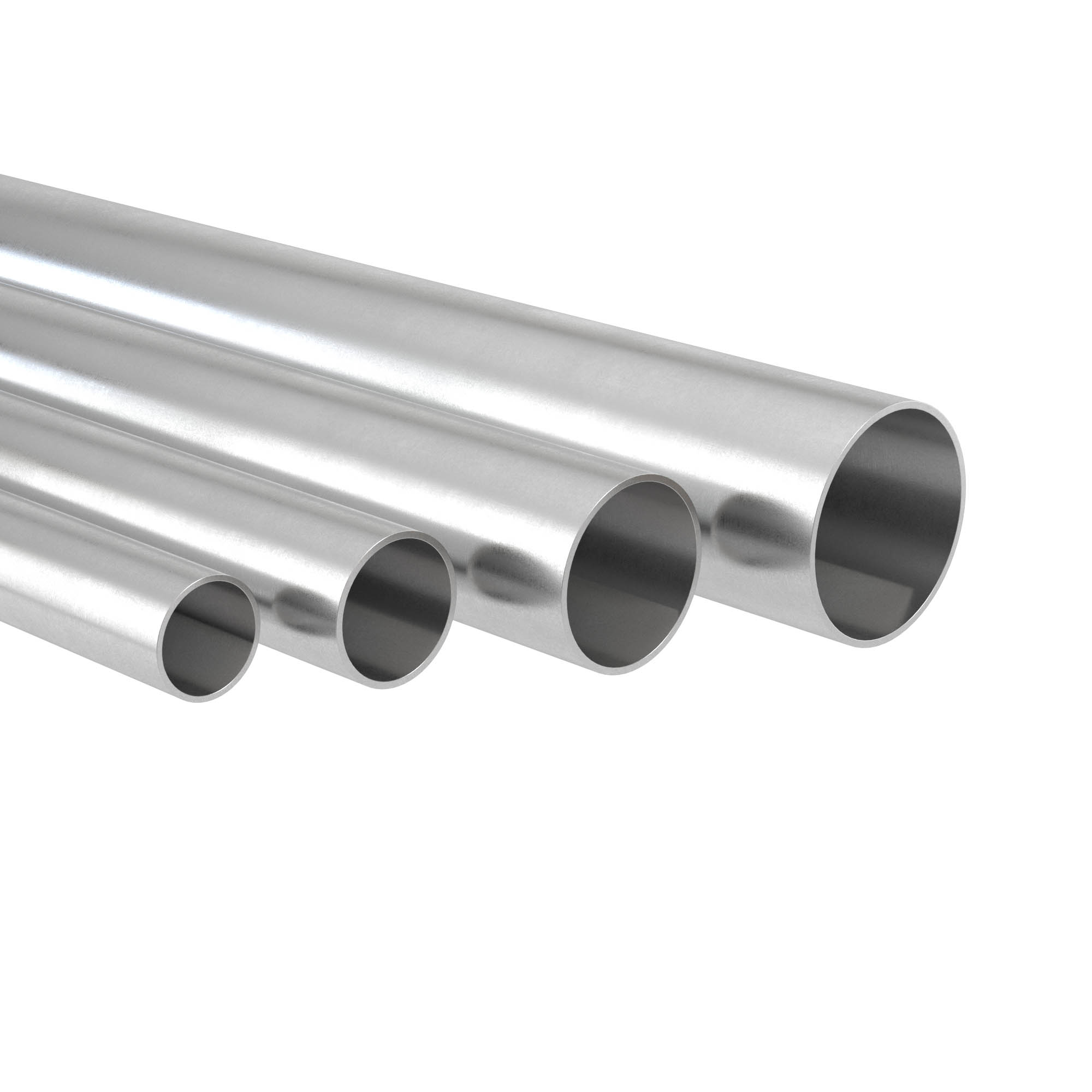

| Product type | Rigid steel conduits |
| Material | Galvanized steel |
| -5°С ... +60°С | -60 ... +150 °С |
| Ingress Protection rating, IP | IP66/IP67 |
| от -25°С до +60°С | from -60 to +150 °С |
| Shock resistance, J | > 20 J at -25 °С |
| Climate version | U2, HL2, UHL2 |
| Fire protection | non-combustible material |
| ТУ 2248-012-47022248-2009 | Technical specifications 4833-041-47022248-2016 |
| 3 года | 3 years |
| 15 лет | 3 years |
