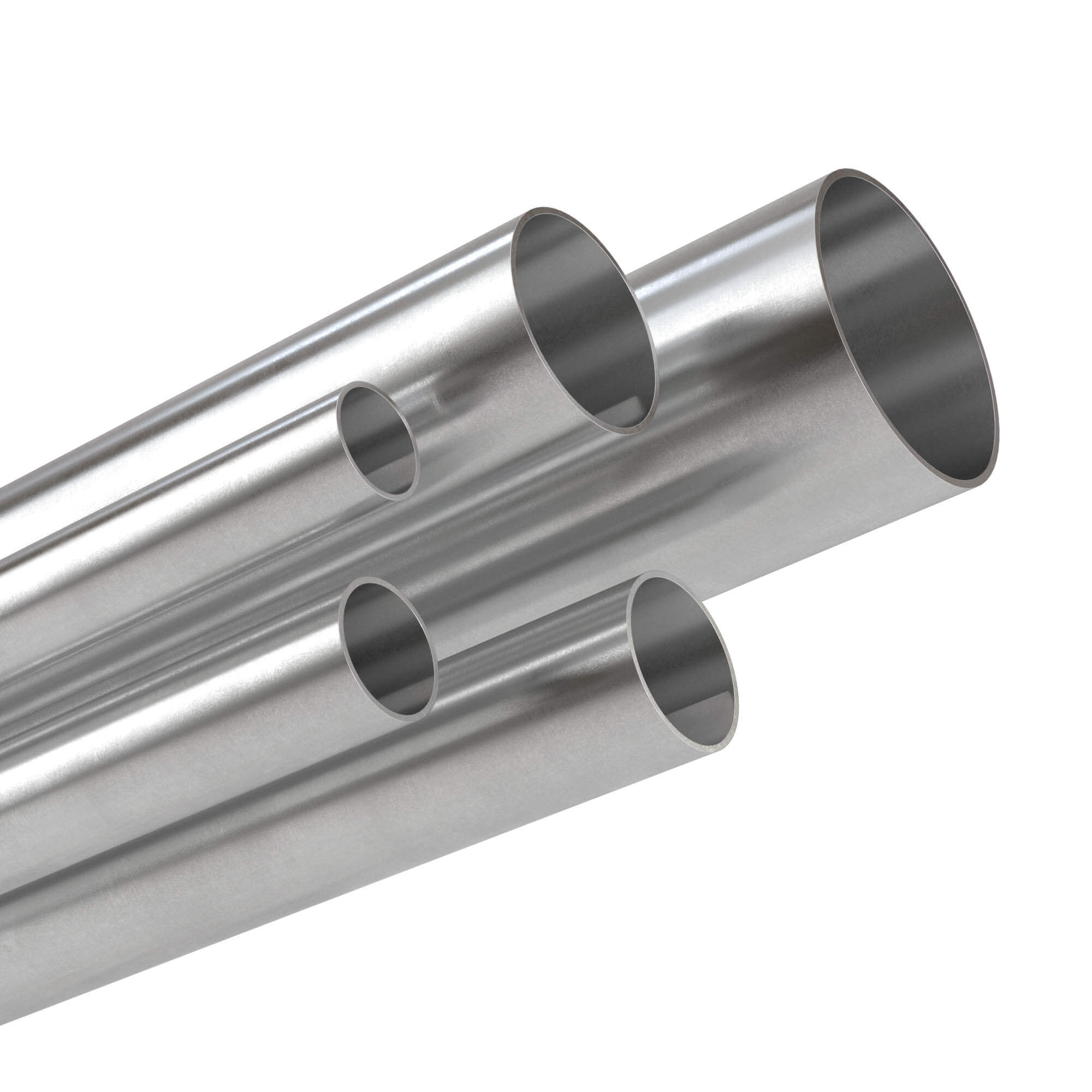

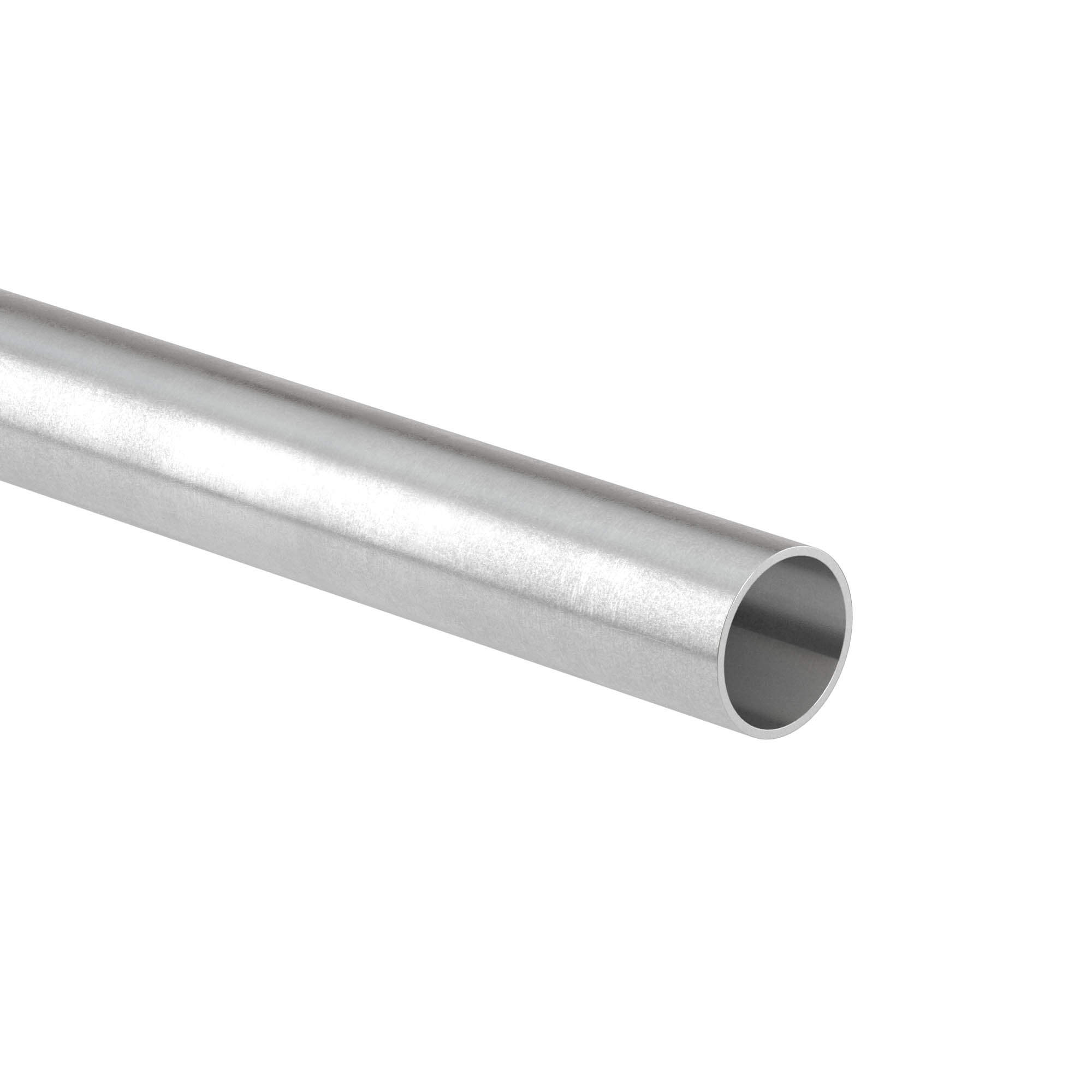

Rigid galvanized steel conduit ø20x1x3000 mm

Code: 6008-20L3
Rigid galvanized steel conduit  ø20x1x3000 mm
  • To ask a question

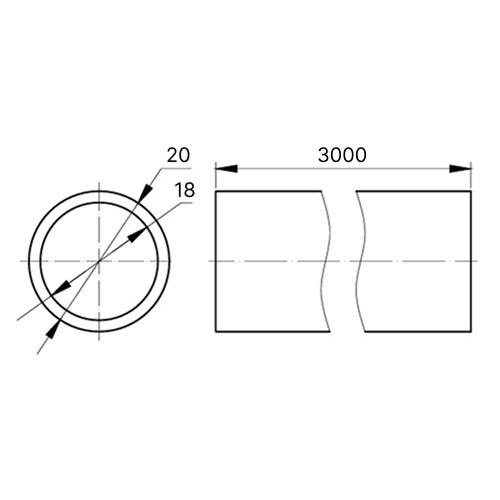

Model Rigid non-threaded
Outer diameter, mm 20
Inner diameter, mm 18
Material Steel
Operating temperature, °C -60...150
Surface mounted Yes
Suitable for subsurface installation (screed)) Yes
Outdoor installation Yes
Product type Rigid steel conduits
Material Galvanized steel
-5°С ... +60°С -60 ... +150 °С
Ingress Protection rating, IP IP66/IP67
от -25°С до +60°С from -60 to +150 °С
Shock resistance, J > 20 J at -25 °С
Climate version U2, HL2, UHL2
Fire protection non-combustible material
ТУ 2248-012-47022248-2009 Technical specifications 4833-041-47022248-2016
3 года 3 years
15 лет 3 years
