Rigid stainless steel conduit AISI 304 ?25x1x3000 mm

Code: 6700-25L3
Rigid stainless steel conduit AISI 304 ?25x1x3000 mm
  • To ask a question
Model Rigid non-threaded

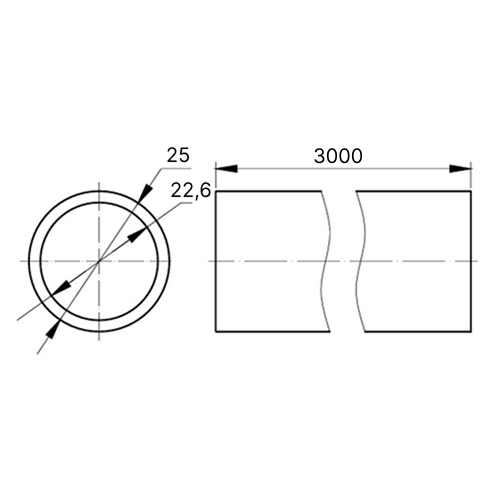

Outer diameter, mm 25
Inner diameter, mm 22.6
Material Stainless steel
Surface mounted Yes
Suitable for subsurface installation (screed) Yes
Outdoor installation Yes
Product type Rigid stainless steel pipe AISI 304
Material Stainless steel AISI 304
Length, mm 3000
Thickness, mm 1,2
Temperature of mounting, °C -45 ... +150 °С
Ingress Protection rating, IP IP66/IP67
Temperature of operation, °C -60 to +150 °С
Shock resistance, J > 20 J at -25 °С
Climate version U1, HL1, UHL1, UHL5, OM1
Fire protection non-combustible material
ТУ 2248-012-47022248-2009 Technical specifications 4833-041-47022248-2014
3 года 3 years
15 лет 3 years
