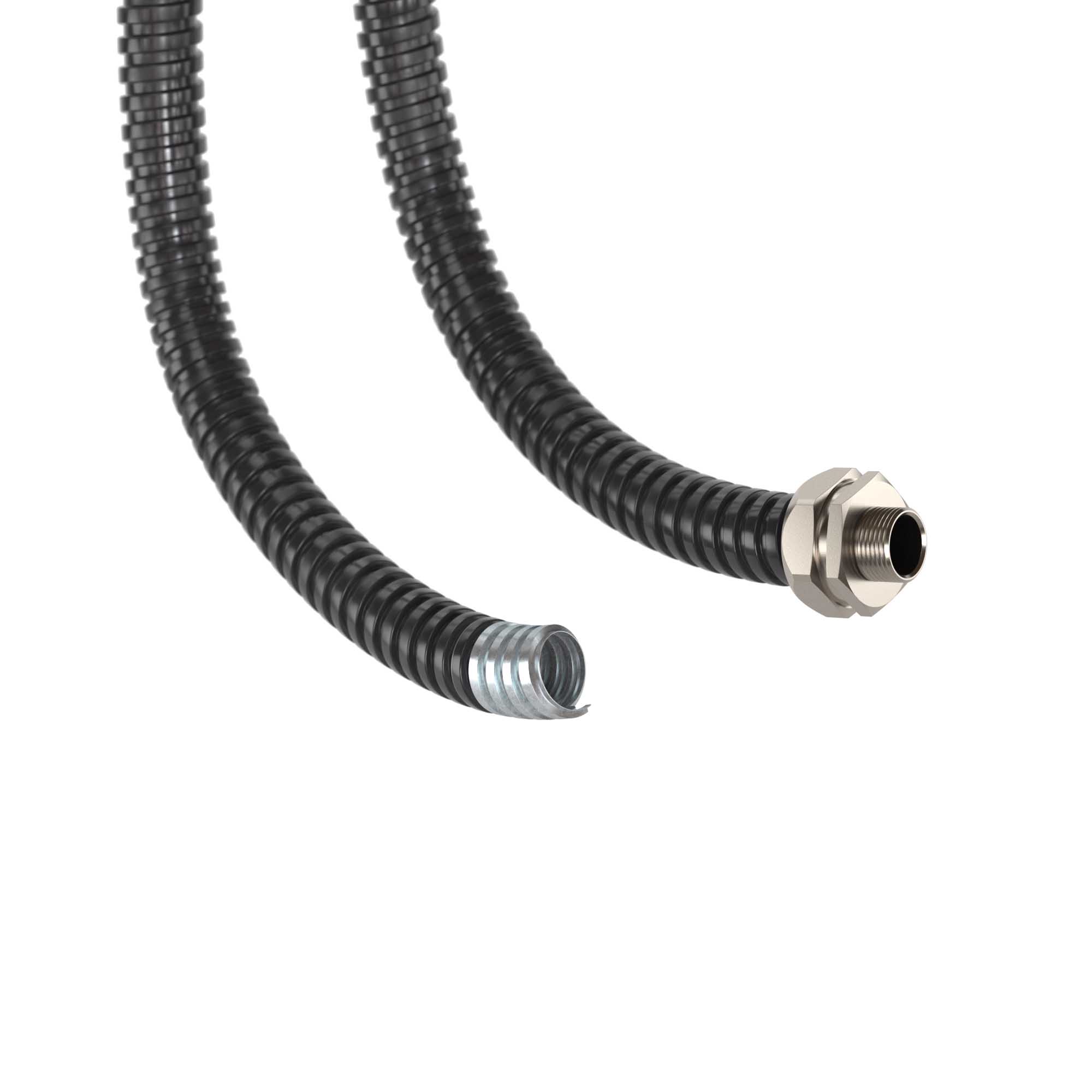

Flexible metal conduit in PVC coating DN 26 mm, Øin 26,5 mm, Øex 31,5 mm, 25m, black color

Code: 6071R-027N
Flexible metal conduit in PVC coating DN 26 mm, Øin 26,5 mm, Øex 31,5 mm, 25m, black color
  • To ask a question
Colour Black

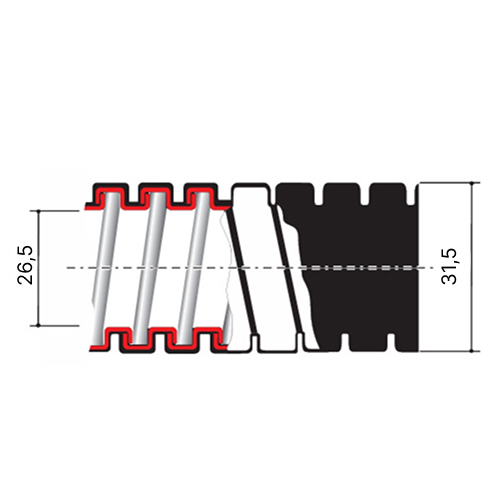

Outer diameter, mm 31.5
Inner diameter, mm 26.5
Compressive strength, N 1250
Operating temperature, °C -15…70
Flame accelerating No
Material Steel
Tensile strength, N 1000
Nominal diameter, mm 26
Degree of protection (IP) IP67
Bending strength Flexible
Sheathing material 2nd coating (exterior) PVC
Color Black
Product type Metal flexible conduits with vacuum PVC coating
Material PVC
-5°С ... +60°С -15 ... +70 °С
Ingress Protection rating, IP IP44/IP66/IP67
от -25°С до +60°С from -15 to +70 °С
Shock resistance, J >2 at -15°С
Fire protection GOST Р 53313
ТУ 2248-012-47022248-2009 Technical specifications 4833-051-47022248-2016
3 года 3 years
15 лет 3 years
Length 25000 mm
