Flexible metal conduit in PVC coating DN 35 mm, Øin 35,0 mm, Øex 41,0mm, 25m,black color
Code: 6070R-38N
Flexible metal conduit in PVC coating DN 35 mm, Øin 35,0 mm, Øex 41,0mm, 25m,black color
Code: 6070R-38N
| Colour | Black |

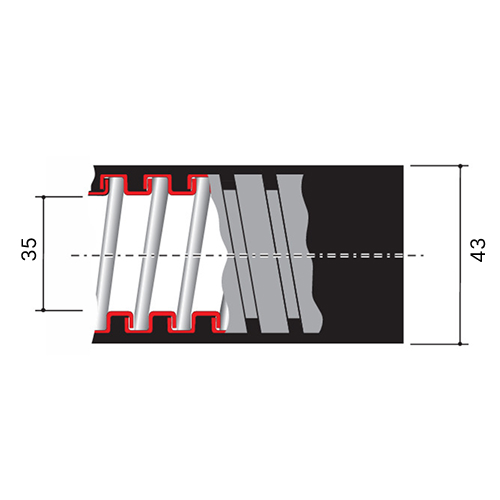

| Outer diameter, mm | 43 |
| Inner diameter, mm | 35 |
| Weight, kg/m | 680±30 |
| Compressive strength, N | 750 |
| Operational temperature, °C | -45…70 |
| Bending radius, static, mm | 150 |
| Flame accelerating | Yes |
| Material | Steel |
| Tensile strength, N | 1000 |
| Nominal diameter, mm | 35 |
| Degree of protection (IP) | IP67 |
| Bending strength | Flexible |
| Sheathing material 2nd coating (exterior) | Polyvinyl chloride (PVC) |
| Color | Black |
| Product type | Metal flexible conduits in smooth PVC coating |
| Material | PVC |
| -5°С ... +60°С | -15 ... +70 °С |
| Ingress Protection rating, IP | IP66/IP67 |
| от -25°С до +60°С | from -15 to +70 °С |
| Shock resistance, J | >2 at -15°С |
| Fire protection | GOST Р 53313 |
| ТУ 2248-012-47022248-2009 | Technical specifications 4833-051-47022248-2016 |
| 3 года | 3 years |
| 15 лет | 3 years |
| Length | 25000 mm |
