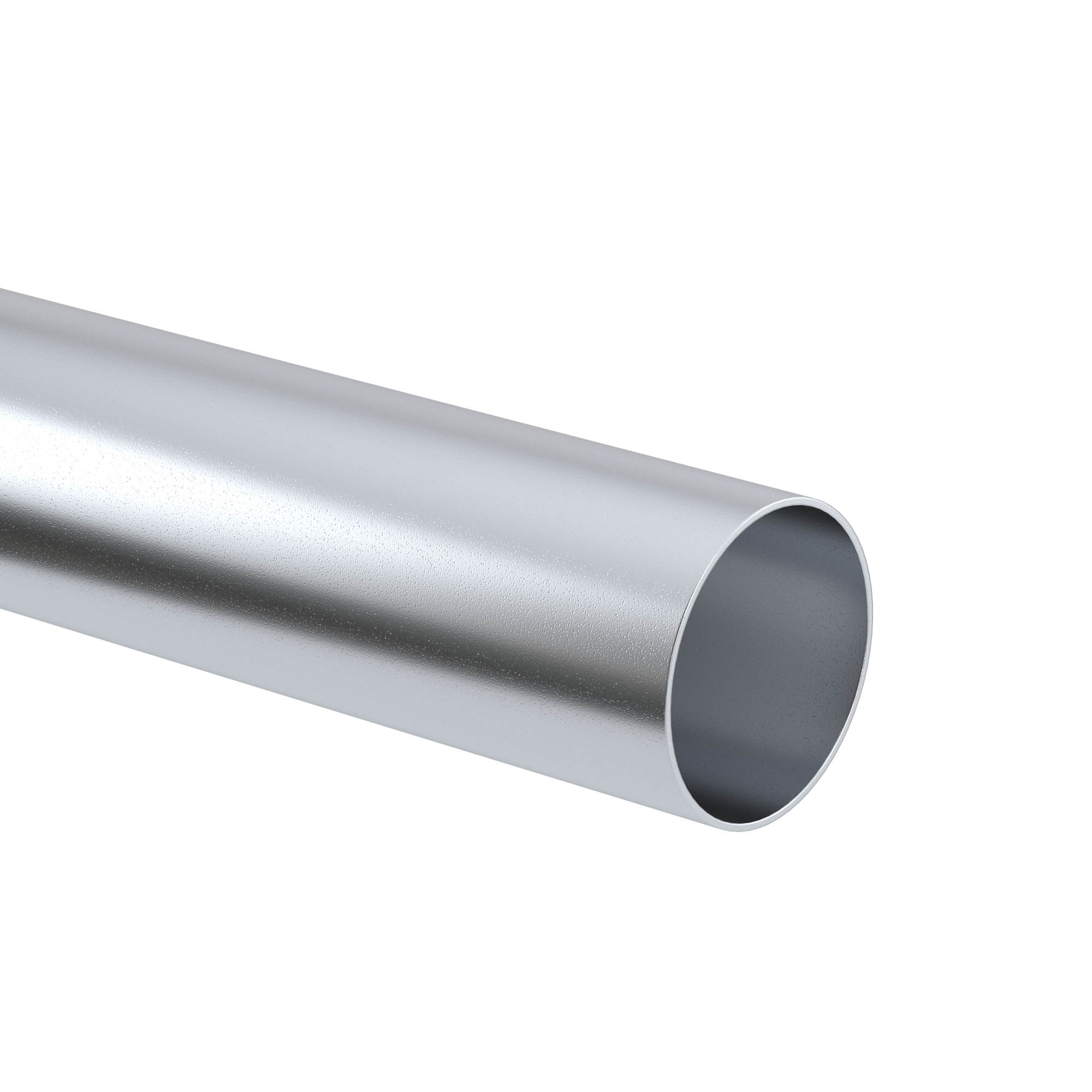

Rigid ZL conduit ø50x1,2x3000 mm

Code: 6008-50L3ZL
Code: 6008-50L3ZL
  • To ask a question
Model Rigid non-threaded

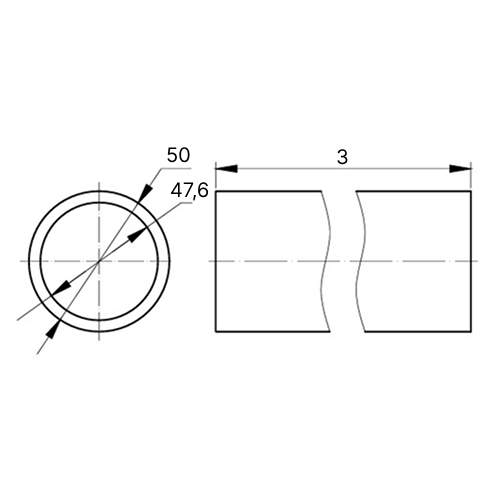

Outer diameter, mm 50
Inner diameter, mm 47.6
Material Steel
Operating temperature -60...151
Suitable for subsurface installation (screed) Yes
Outdoor installation Yes
Colour Natural colour
Product type Rigid pipe, zinc lamella
Material Zinc-lamellated steel
Length, mm 3000
Thickness, mm 1,2
Temperature of mounting, °C -45 ... +150 °С
Ingress Protection rating, IP IP66/IP67
Temperature of operation, °C -60 to +150 °С
Shock resistance, J > 20 J at -25 °С
Climate version U1, HL1, UHL1, UHL5, OM1
Fire protection non-combustible material
ТУ 2248-012-47022248-2009 Technical specifications 4833-041-47022248-2014
3 года 3 years
15 лет 3 years
Length 3 m
