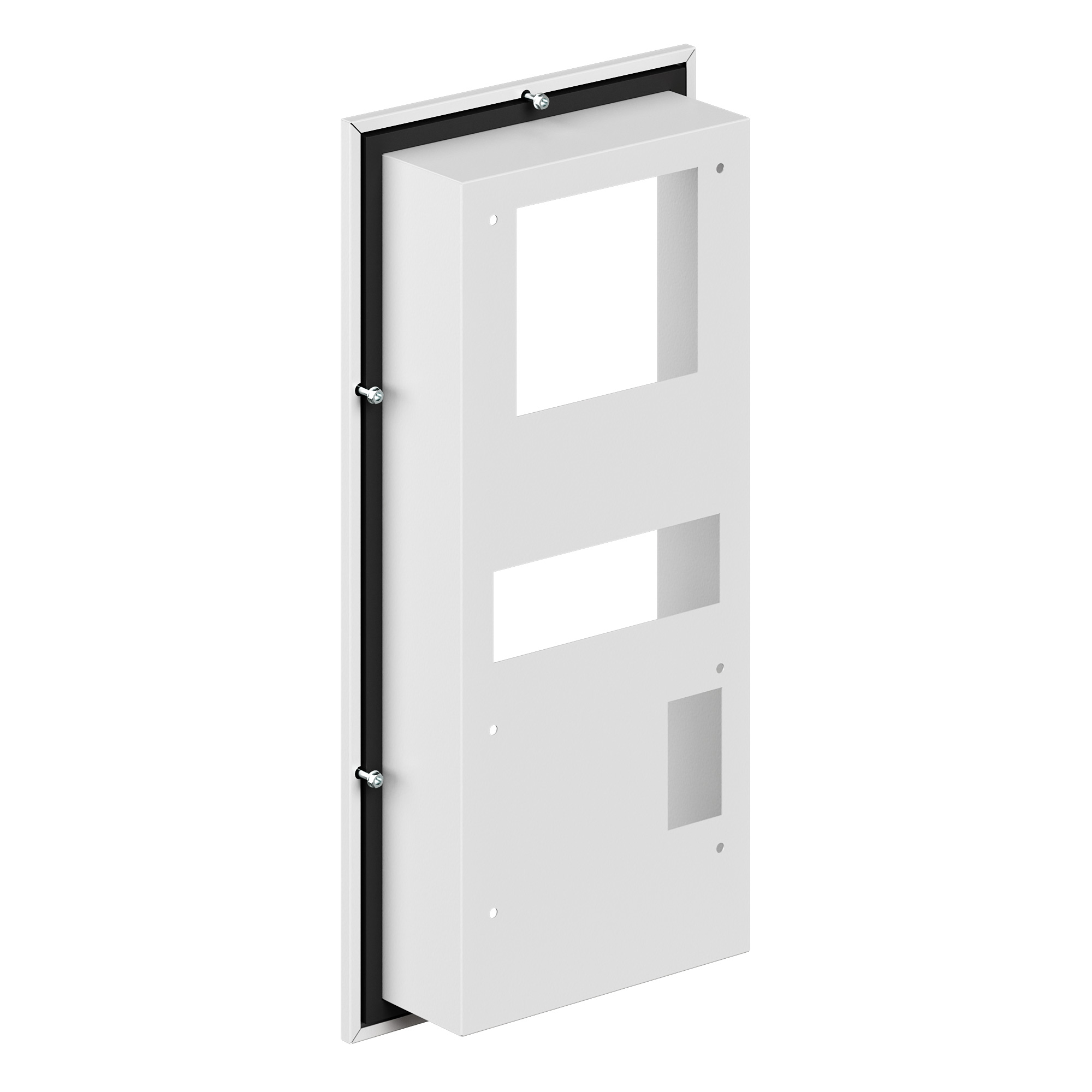

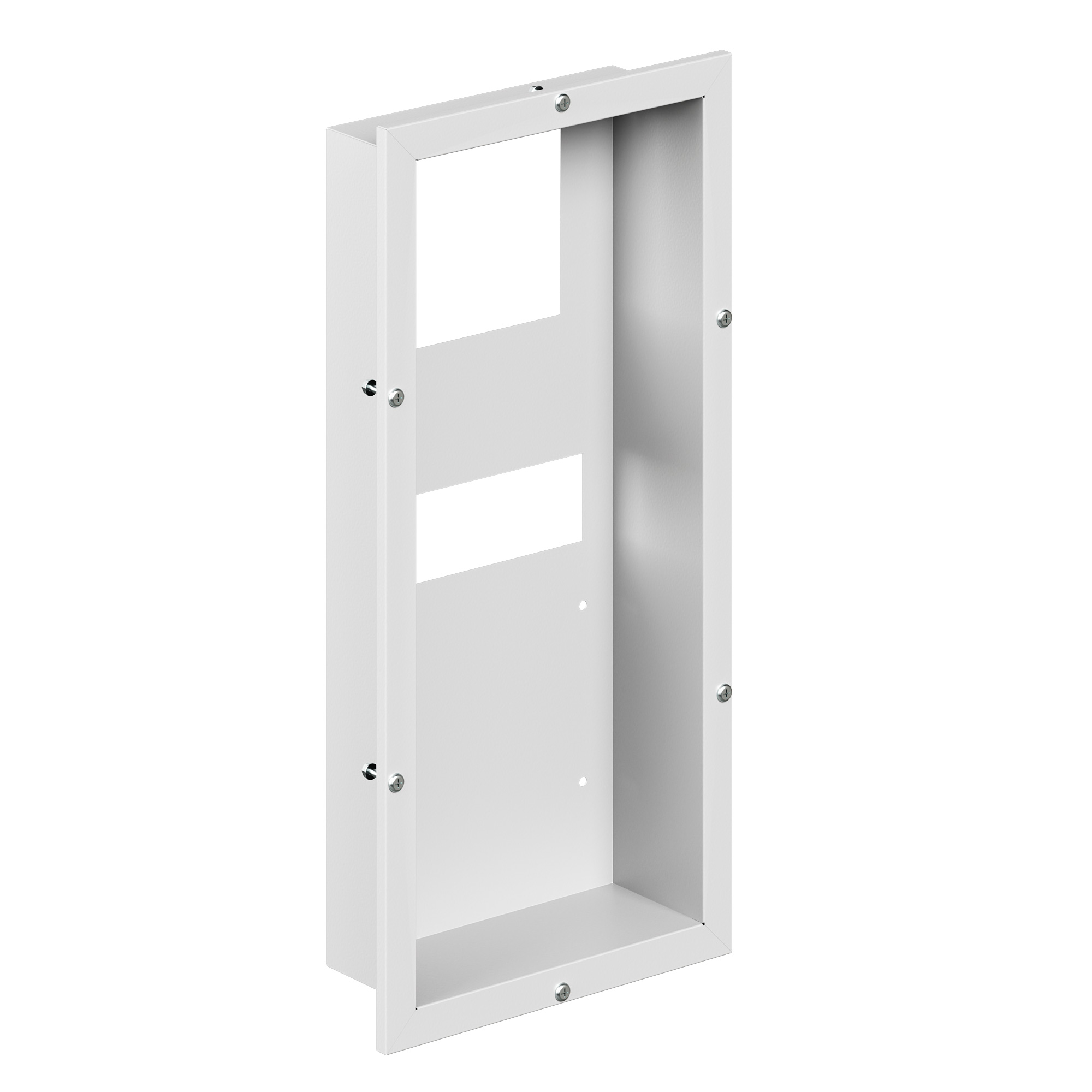

Frame for semi-inbuilt mounting of wall-mounted conditioner 500 W 400 V
Code:
R5KLMCSI3
Code:
R5KLMCSI3
| Mounting method | Screw mounting |
| Material | Steel |
| Degree of protection (IP) | IP54 |
| Surface finishing | Powder coating |
| Width, mm | 345 |
| Height, mm | 710 |
| Suitable for 19 inch rack mounting | No |
| Suitable for 10 inch mounting | No |
| Suitable for enclosure building width, mm | 287 |
| Suitable for enclosure building depth, mm | 102 |
| With built-in filter | No |
| Product type | Accessories for air conditioners |
| Mounting type | Wall-mounted |
| Material | Metal |
| External dimensions (W x H x D) | 345 х 710 х 115 mm |
