| Mounting method | DIN-rail (DRA) |
| Width, mm | 182 |
| Height, mm | 120 |
| Depth, mm | 160 |
| Voltage type | AC |
| With digital indication | No |
| With room temperature controller | Yes |
| With fan | Yes |
| Operating temperature, °C | -45...+70 |
| Degree of protection (IP) | IP20 |
| With hygrostat | No |
| Rated power, W | 1000 |
| Operating voltage at AC 50 Hz, V | 115...115 |
| Operating voltage at AC 60 Hz, V | 115...115 |
| Adjustment range temperature, °C | 0...+60 |
| Continuous heating power at 20, W | 1000 |

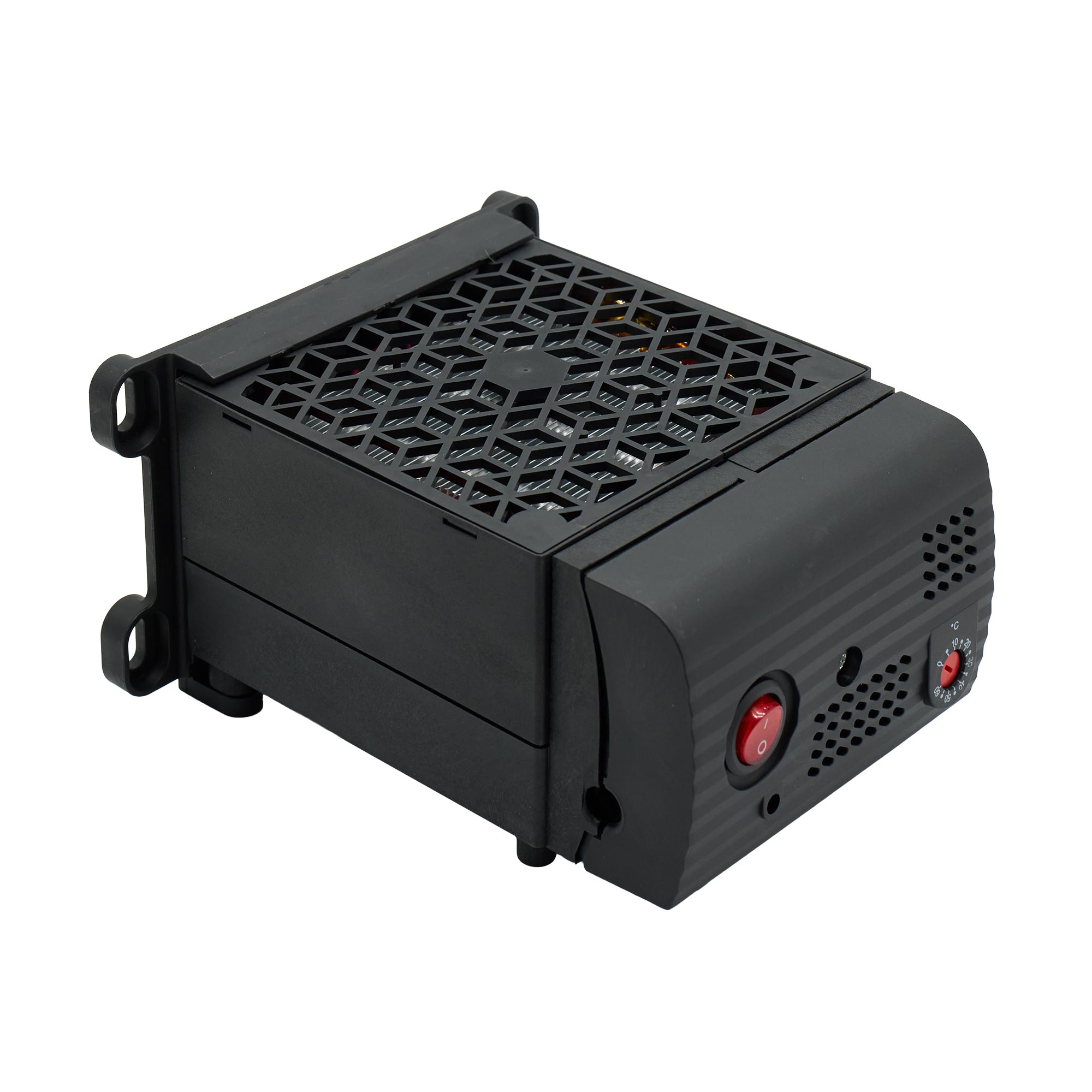

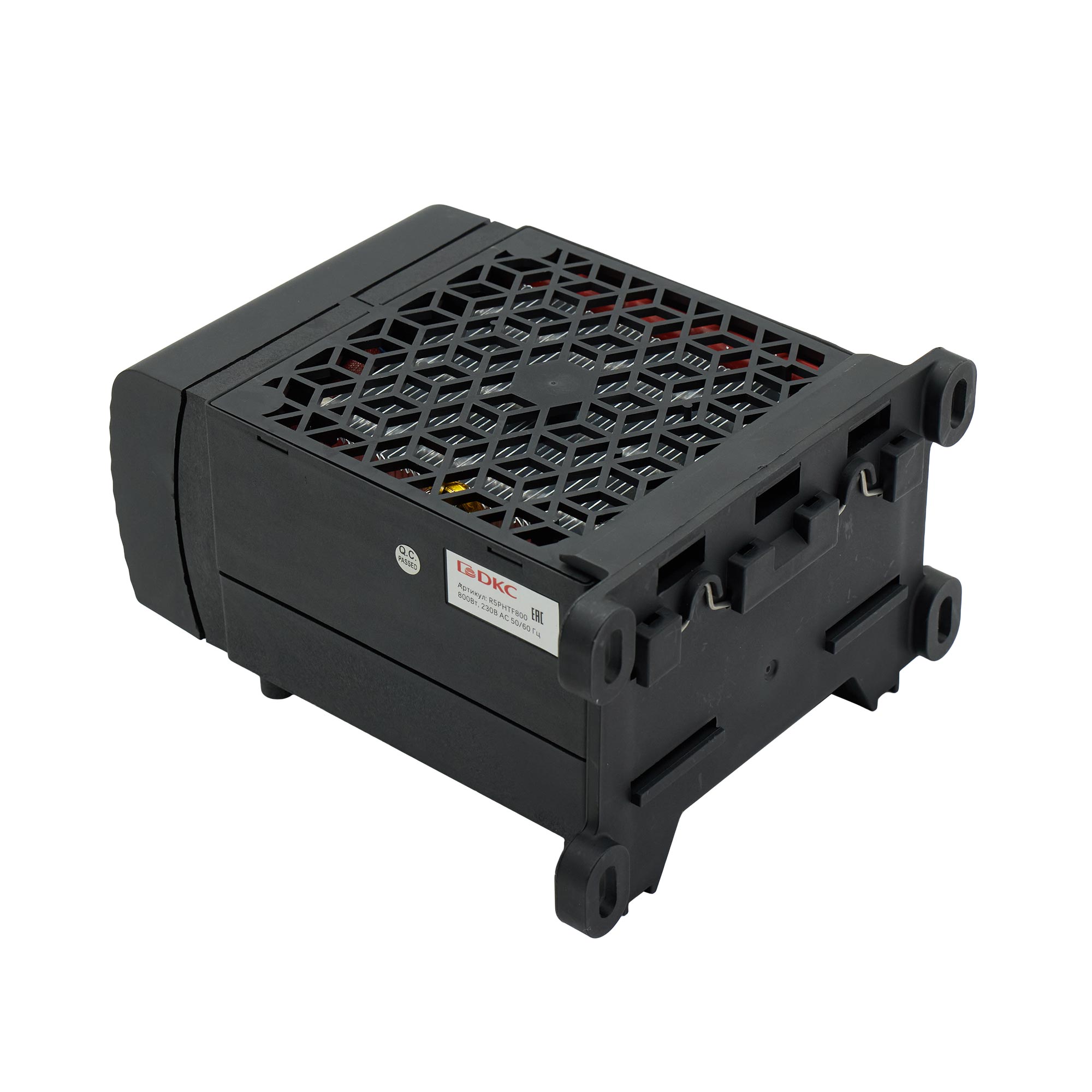

| Product type | Heater |
| Mounting type | DIN-rail+Mounting plate |
| Heating capacity | 1000 W |
| Rated voltage | 115 V |
| Voltage type | AC |
| Starting current | 13,06 А |
| With blower | Yes |
| Efficiency | 160 m³/h |
| With plastic protective case | Yes |
| With temperature controller | Yes |
| With a hygrostat | No |
| Type of clamp for connecting wires | Screw |
| Recommended tightening torque | 0,8 N*m |
| Maximum cable cross section | 2,5 mm2 |

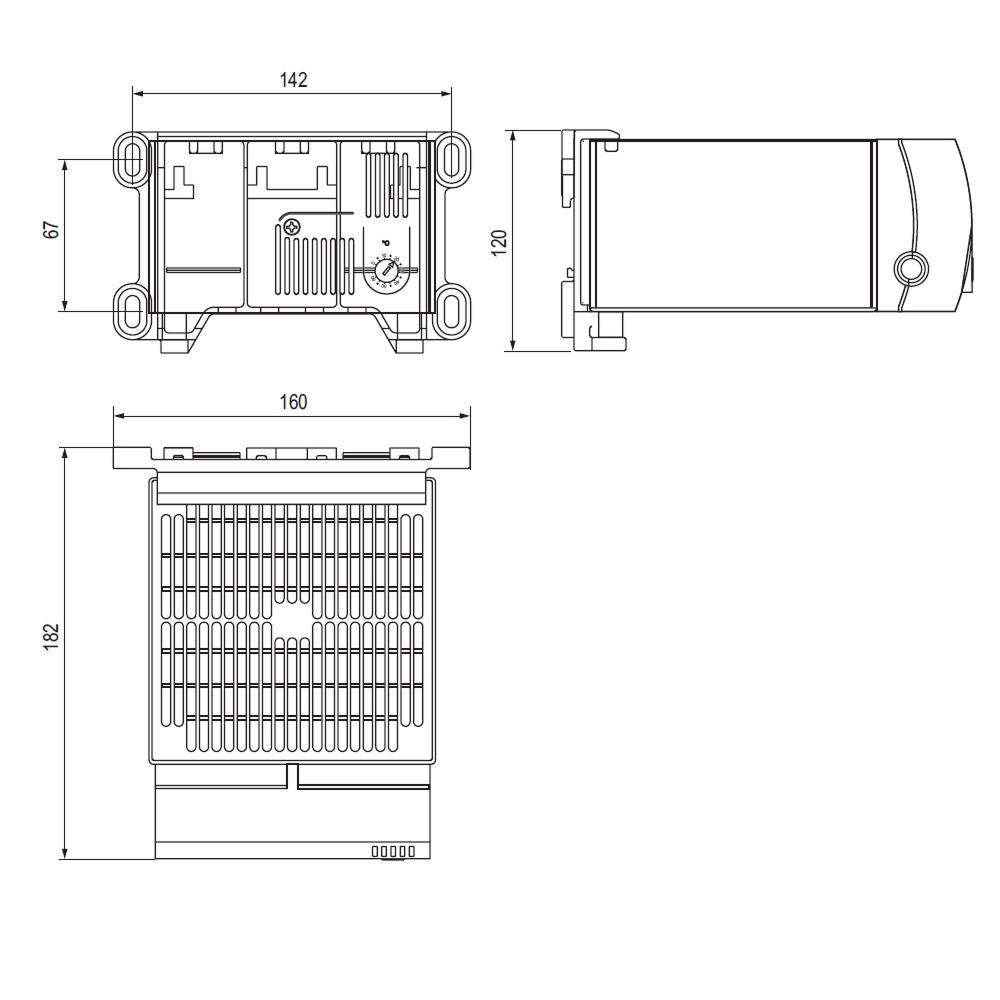

| External dimensions of heater | 182 x 120 x 160 mm |
| Operating temperature range | –45...+70 ˚C |
| Storage temperature range | –45...+70 ˚C |
| Heating element type | PTC |
| Degree of protection | IP20 |
| Weight | 1,3 kg |
