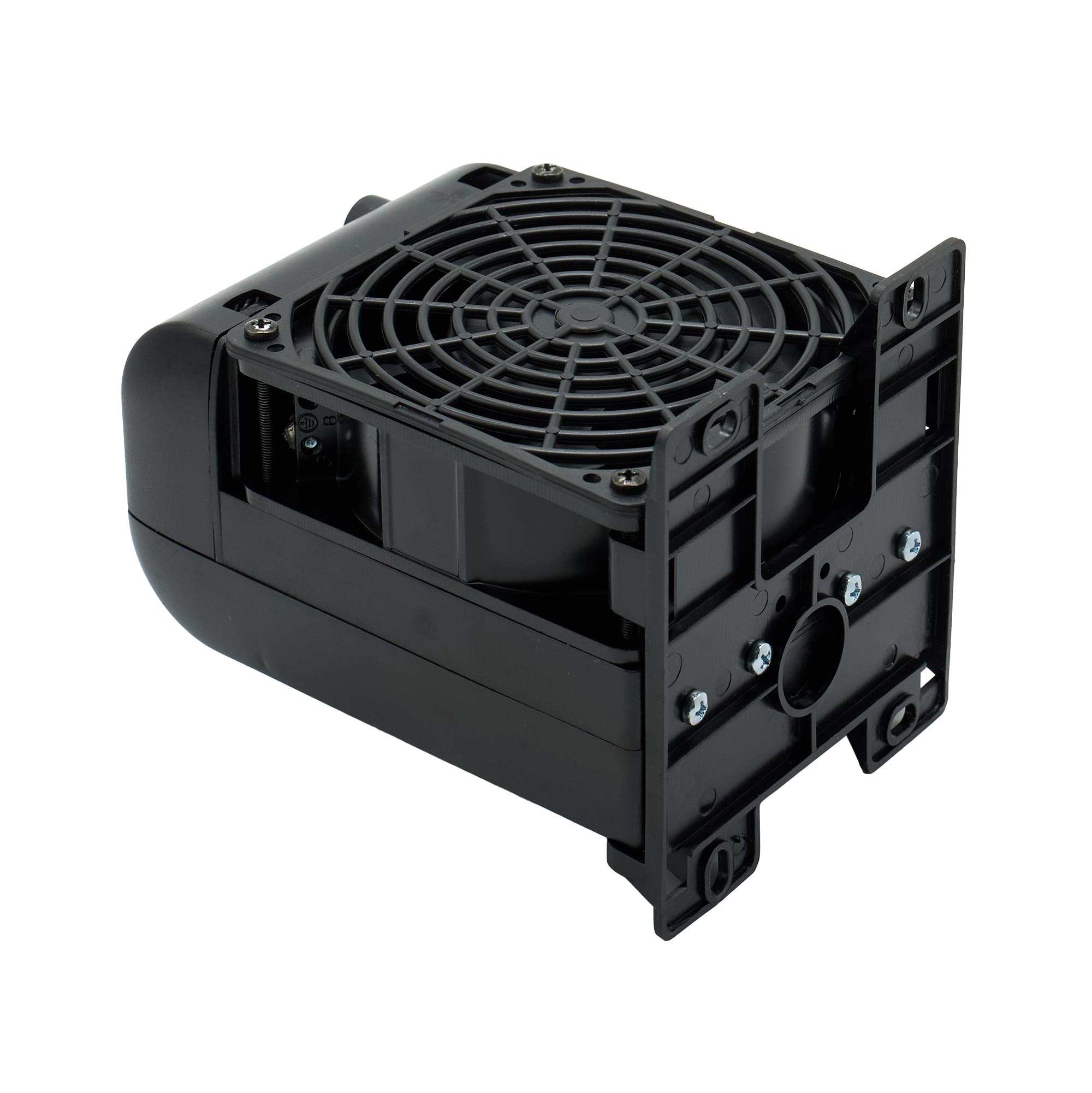

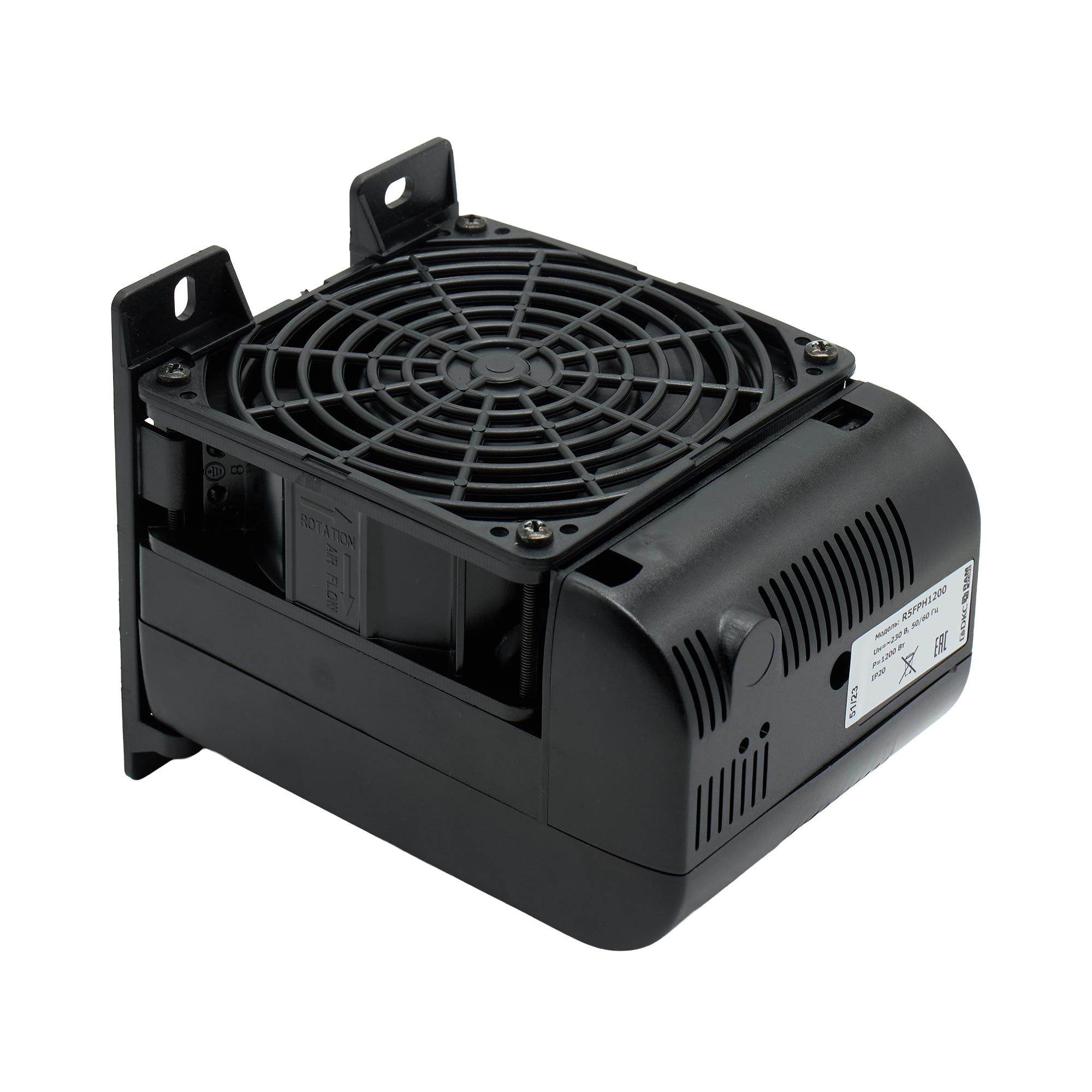

Heater in plastic case with blower 1500 W, 230 V

Code: R5FPH1500

Heater in plastic case with blower 1500 W, 230 V

Code: R5FPH1500
Width, mm 120
Height, mm 95
Depth, mm 160
With room temperature controller Нет
With fan Да
Degree of protection (IP) IP20
Rated power, W 1500
Operating voltage at AC 50 Hz, V 230
Operating voltage at AC 60 Hz, V 230
Voltage type AC
Mounting method Screw mounting
With digital indication Нет
With hygrostat Нет
Heating capacity, W 1500
Rated operating voltage V, ~, Hz 230 V, 1 p, 50/60 Hz
With blower Yes
With plastic protective case Yes
External dimensions of heater (W x H x D), mm 120 x 95 x 160
Operating temperature range, ˚C –40...+70
Storage temperature range, ˚C –45...+80
Heating element type PTC
Degree of protection IP20
Weight, kg 1.2
Product type Heater
Accessories
Drawings
Seria Name DWG (dynamic.) Eplan DWG STEP
