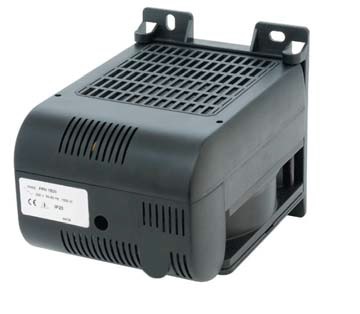

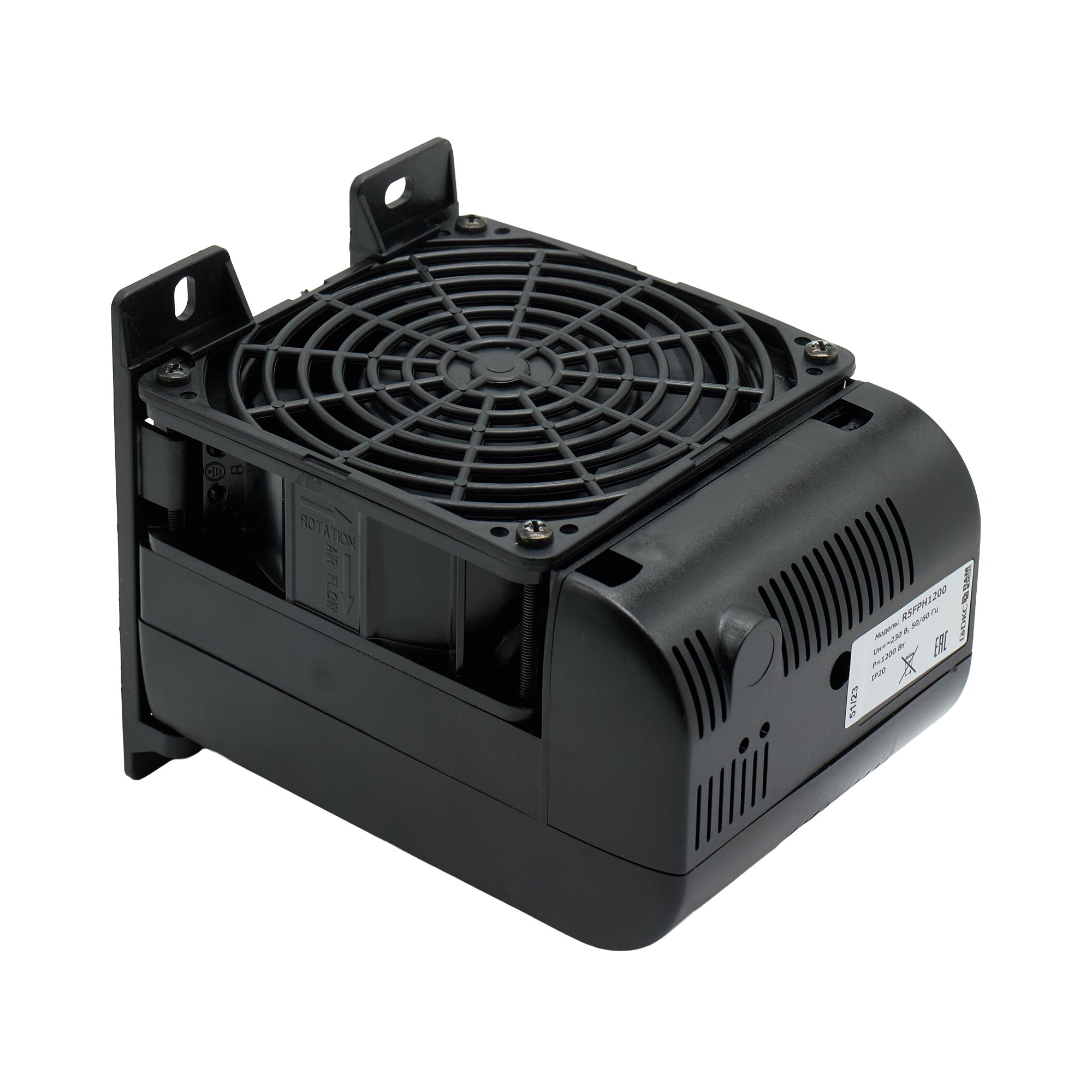

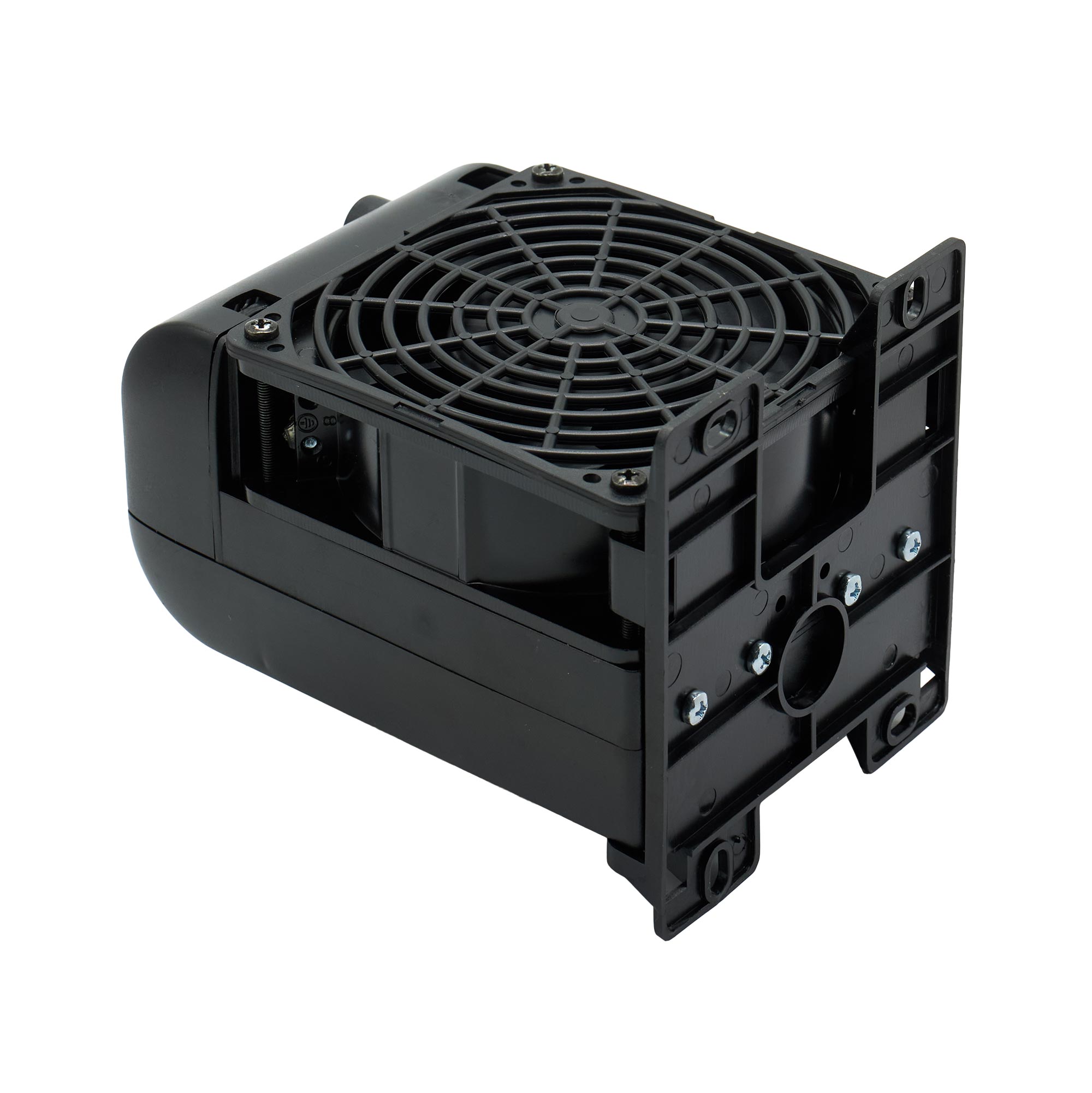

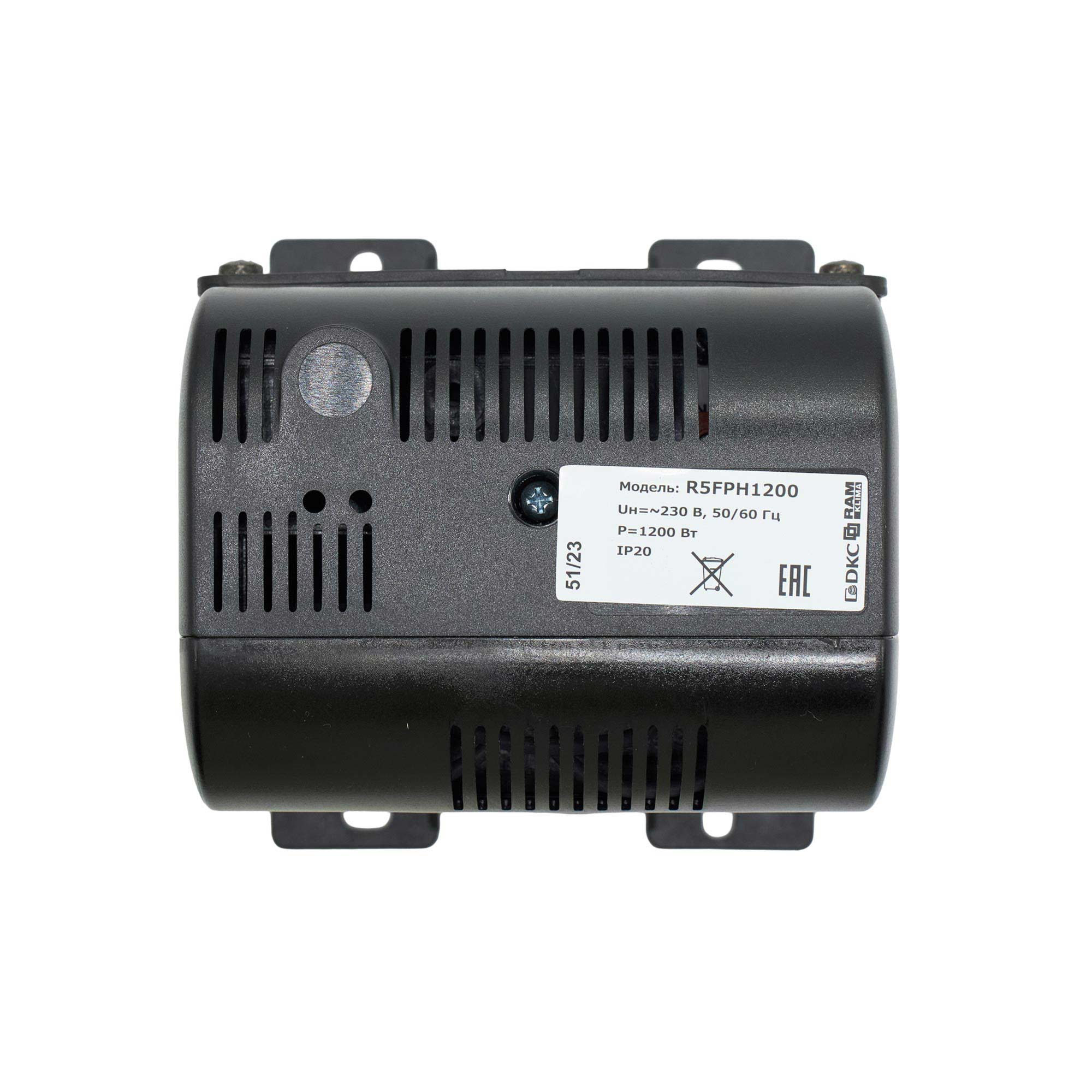

No name

Code: R5FPH1200

To ask a question

ETIM

Width, mm	120
Height, mm	95
Depth, mm	160
With room temperature controller	No
With blower	No
Degree of protection (IP)	IP20

Rated power, W	1200
Continuous heating power at 20, W	1200
Operating voltage at AC 50 Hz, V	230
Operating voltage at AC 60 Hz, V	230
Voltage type	AC

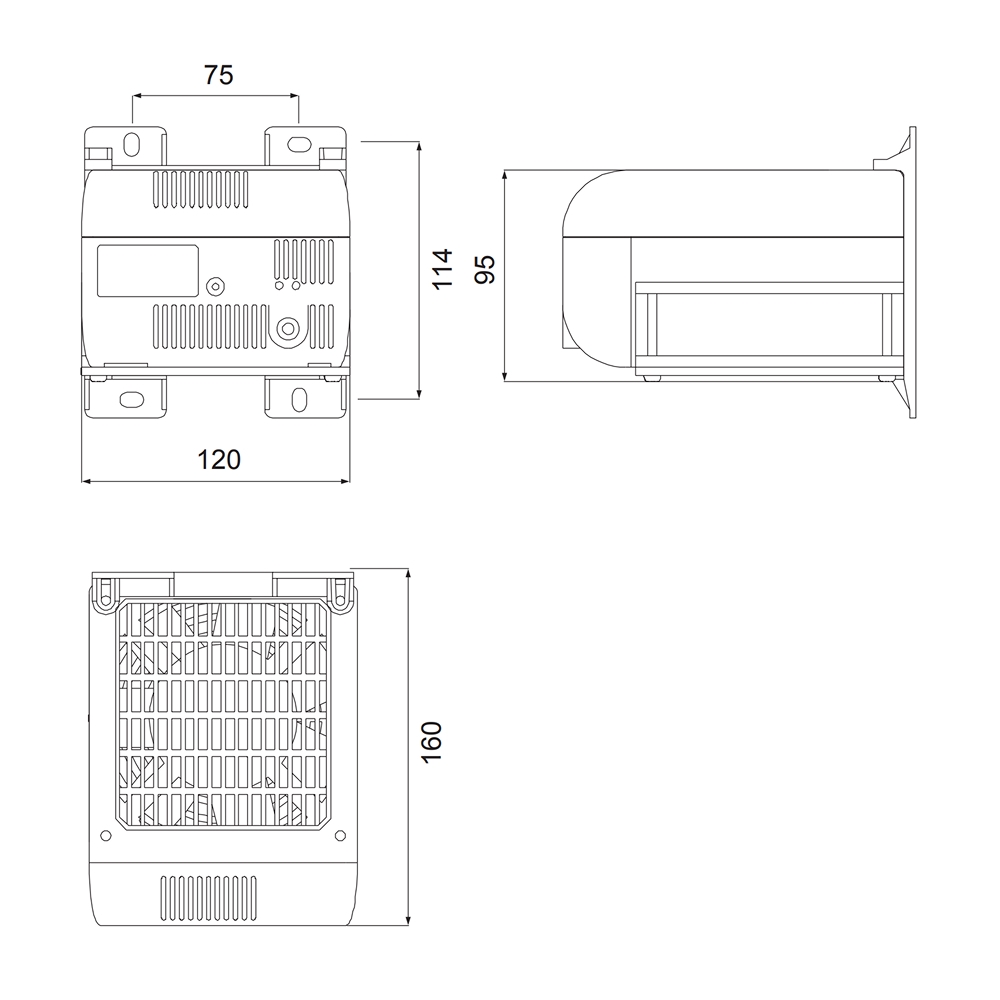

Drawings

Seria	Name	Eplan	DWG	STEP	DWG (dynamic blocks)
RAMklima - climate control system	The microclimate control system "RAM klima"	RAR 261.98 MB
RAMklima - climate control system	Heater for increased capacity without a thermostat, P=1200W		RAR 473.76 kB	RAR 996.79 kB
RAMklima - climate control system	Heaters and thermostats (dynamic blocks)				RAR 3.57 MB
RAMklima - climate control system	Vetilyatsionnye grilles and fans (dynamic blocks)				RAR 1.76 MB

Certificates

Name	Document
Declaration of Conformity for the heaters	PDF 1.49 MB
Declaration of Conformity for the heaters	PDF 471.20 kB
