Compact heater 5 W, connecting cable, 110…250 V

Code: R5MHT5
Compact heater 5 W, connecting cable, 110…250 V
  • To ask a question
Width, mm 40
Height, mm 55
Depth, mm 40
With room temperature controller Нет
With fan Нет
Degree of protection (IP) IP20
Rated power, W 5
Operating voltage at AC 50 Hz, V 110…250
Operating voltage at AC 60 Hz, V 110…250
Operating voltage at DC, V 110…250
Voltage type AC/DC
With digital indication Нет
With hygrostat Нет
Heating capacity, W 5
Rated operating voltage V, ~, Hz 110…250 V, 1 p, 50/60 Hz; 110…250 V, DC
With blower No
With plastic protective case No
External dimensions of heater (W x H x D), mm 40 x 55 x 40
Operating temperature range, ˚C –45...+70
Storage temperature range, ˚C –45...+80
Heating element type PTC
Degree of protection IP20
Weight, kg 0.11
Comment Compact size, connection cable
Product type Heater
Accessories

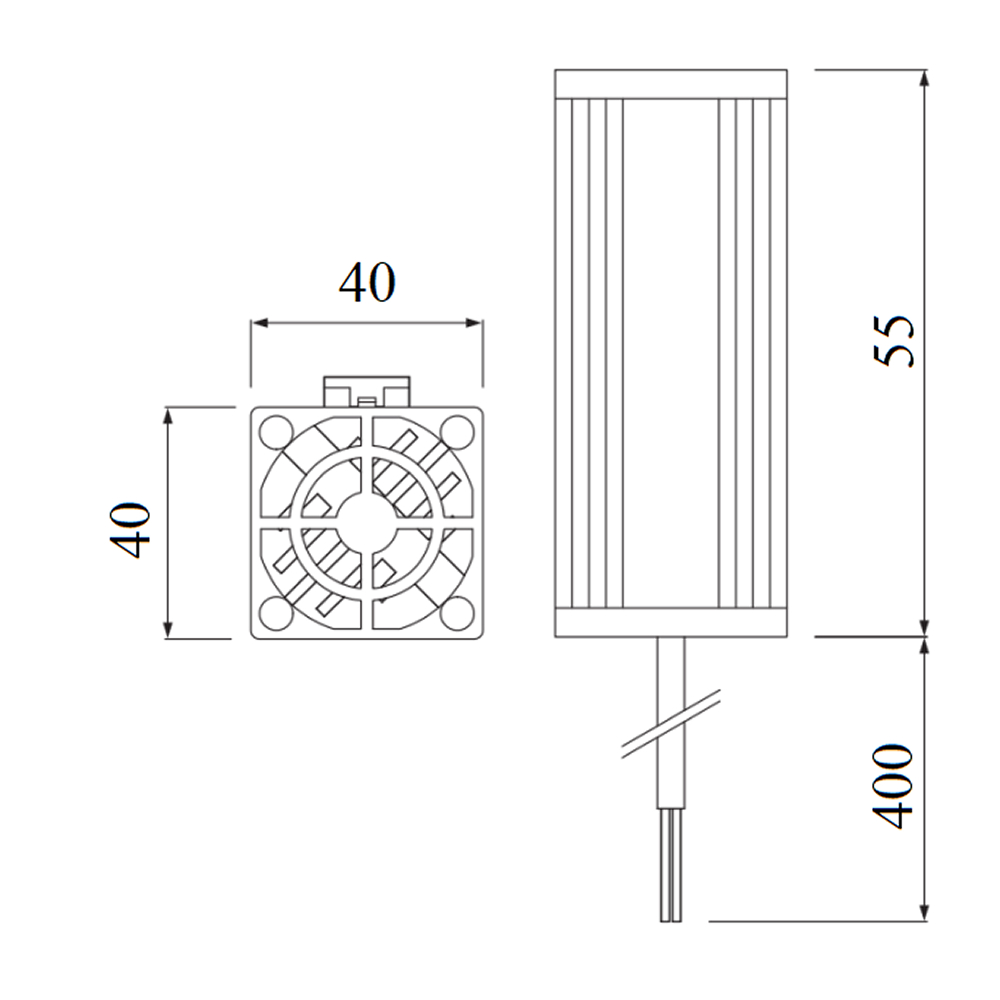

Drawings
Seria Name DWG (dynamic.) Eplan
